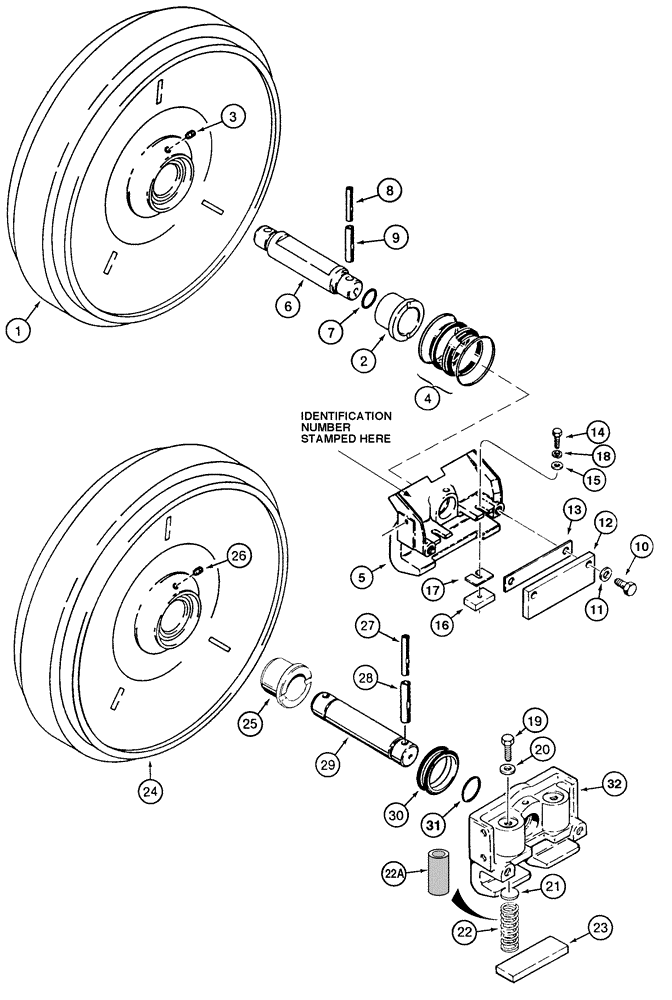

Запчасти Case 855E (5-06) - IDLER ASSEMBLIES, , R55677 IDLER ASSEMBLY (SEE ITEMS 5 AND 6 FOR IDENTIFICATION) (11) - TRACKS/STEERING

R55677

FRONT IDLER

IDLER ASSEMBLY - track

2шт.

1

R52600

WHEEL

HUB ASSEMBLY - idler

1шт.

2

S105797

BUSHING

- flanged

2шт.

3

R33557

PLUG

- hex socket

1шт.

4

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL ASSEMBLY - face, includes two metal rings and two rubber seals

2шт.

5

R55675

SUPPORT

BRACKET - idler assembly

2шт.

Replace bracket ref. 5 or shaft ref 6 with one 103390A1 shaft and two each of R58799 bracket, 838-51690 and 838-51090 pins, 106919A1 wear plate, 238-5227 O-ring; and four each of R58621 spring, R33245 seat, 413-616 bolt, 495-21044 washer. See items 19 through 32.

1шт.

6

R55676

SHAFT

- idler assembly

1шт.

Replace bracket ref. 5 or shaft ref 6 with one 103390A1 shaft and two each of R58799 bracket, 838-51690 and 838-51090 pins, 106919A1 wear plate, 238-5227 O-ring; and four each of R58621 spring, R33245 seat, 413-616 bolt, 495-21044 washer. See items 19 through 32.

1шт.

7

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

2шт.

8

R53580

ROLL PIN

PIN, ROLL, Inner, shaft retaining

2шт.

9

R53579

ROLL PIN

PIN, ROLL, outer, shaft retaining

2шт.

10

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch

8шт.

11

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

8шт.

12

R45570

PLATE

- guide, idler

4шт.

13

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Guide plate 1/32" Thk

1шт.

14

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

8шт.

15

R24323

WASHER

- flat, special, 1/2 inch, hardened

8шт.

16

R45568

BLOCK

SPACER - idler, above track frame

8шт.

17

R45569

SHIM

- idler spacer, if used

1шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, 103384A1 idler assembly (See item 32 for ID)

8шт.

20

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), 103384A1 idler assembly (see item 32 for id) 3/8"

8шт.

21

R33245

SPRING SEAT

SEAT - spring, 103384A1 idler assembly (see item 32 for id)

8шт.

22

R58621

SPRING

- recoil, no longer used, order 188866A1, item 22A, 103384A1 idler assembly (see item 32 for id)

8шт.

22a

188866A1

SHOCK ABSORBER

SPRING - recoil, 103384A1 idler assembly (see item 32 for id)

8шт.

23

106919A1

SPACER

PLATE - wear, 103384A1 idler assembly (see item 32 for id)

4шт.

103384A1

FRONT IDLER

IDLER ASSEMBLY - track, 103384A1 (see item 32 for id)

2шт.

24

103389A1

BUSHING

HUB ASSEMBLY - idler, 103384A1 (see item 32 for id)

1шт.

25

103391A1

BUSHING,60.26mm ID x 68mm OD x 46mm L

- flanged, 103384A1 idler assembly (see item 32 for id)

2шт.

26

R33557

PLUG

- hex socket, tapered, 103384A1 idler assembly (see item 32 for id)

1шт.

27

838-51090

PIN,M10 x 90, Coiled

- roll, 13 x 36 mm, inner, shaft retaining, 103384A1 idler assembly (see item 32 for id)

2шт.

28

838-51690

LOCK PIN,M16 x 90, Slotted

PIN - spring, 16 x 90 mm, outer, shaft retaining, 103384A1 idler assembly (see item 32 for id)

2шт.

29

103390A1

SHAFT

- 103384A1 idler assembly (see item 32 for id)

1шт.

30

S116825

SEAL,90.5mm ID x 109.5mm OD x 31.8mm Thk

SEAL ASSEMBLY - face, includes two metal rings and two rubber seals, 103384A1 idler assembly (see item 32 for id)

1шт.

31

238-5227

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

103384A1 idler assembly (see item 32 for id) -227, 70 Duro, 2.109" ID x .139" Thk

2шт.

32

R58799

SUPPORT

BRACKET - mounting, with recoil spring feature, 103384A1 idler assembly (see item 32 for id)

2шт.
