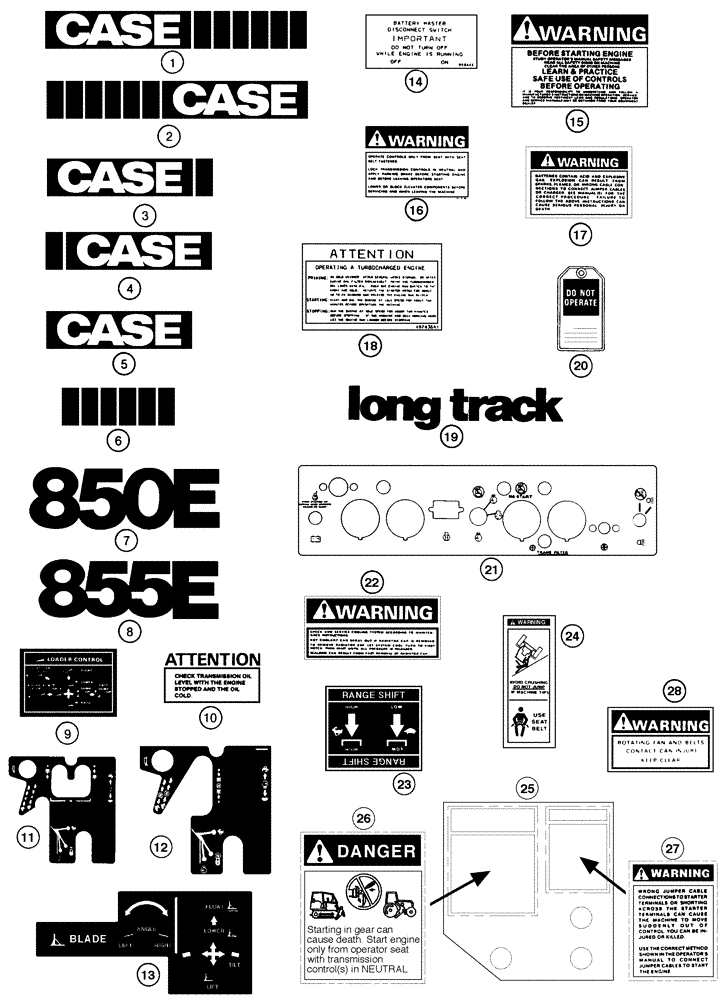

Запчасти Case 855E (9-102) - DECALS (09) - CHASSIS/ATTACHMENTS

1

R48496

DECAL

- Case, with treads, left-hand, 6 inch (152 mm), dozer and drawbar models

1шт.

2

R48495

DECAL

- Case, with treads, right-hand, 6 inch (152 mm), dozer and drawbar models

1шт.

3

R48497

DECAL

- Case, left-hand, 5 inch (127 mm) loader models

1шт.

4

R48498

DECAL

- Case, right-hand, 5 inch (127 mm) loader models

1шт.

5

R48489

DECAL

- Case, 6 inch (152 mm)

1шт.

6

R48487

DECAL

- treadmarks, 6 inch (152 mm)

1шт.

7

R58128

DECAL

- 850E

2шт.

8

R58129

DECAL

- 855E

2шт.

9

R58445

DECAL

- Loader Control pattern

1шт.

10

R50495

DECAL

- Attention, Check transmission oil level with the engine stopped

2шт.

11

R58572

DECAL

- crawler controls, forward-reverse, neutral start lock and engine speed

1шт.

12

101639A1

DECAL

- crawler controls,forward-neutral-reverse, models with linear controls, if used

1шт.

13

R58571

DECAL

- dozer blade control pattern, lift, angle and tilt

1шт.

14

R58448

DECAL

- battery master disconnect

1шт.

15

321-3705

DECAL

- Warning, before starting engine

1шт.

16

321-4188

DECAL

- Warning, operate controls only from seat

1шт.

17

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

2шт.

18

102436A1

DECAL

- Attention, operating turbocharged engine

1шт.

19

R56135

DECAL

- long track

2шт.

20

321-4614

TAG

- do not operate

1шт.

21

178504A1

DECAL

- instrument panel

1шт.

22

321-6672

DECAL

- Warning, check and service cooling system, radiator coolant

1шт.

23

R58391

DECAL

- range shift pattern

1шт.

24

321-7030

WARNING DECAL

DECAL, WARNING, Do Not Jump - Use Seat Belt

1шт.

25

109697A1

PLATE ASSY.

PLATE - decal mounting

1шт.

26

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

27

321-6872

DECAL

- Warning, wrong jumper cable connections to starter terminals

1шт.

28

384267A1

WARNING DECAL

Warning Rotating Fan And Belts

1шт.
