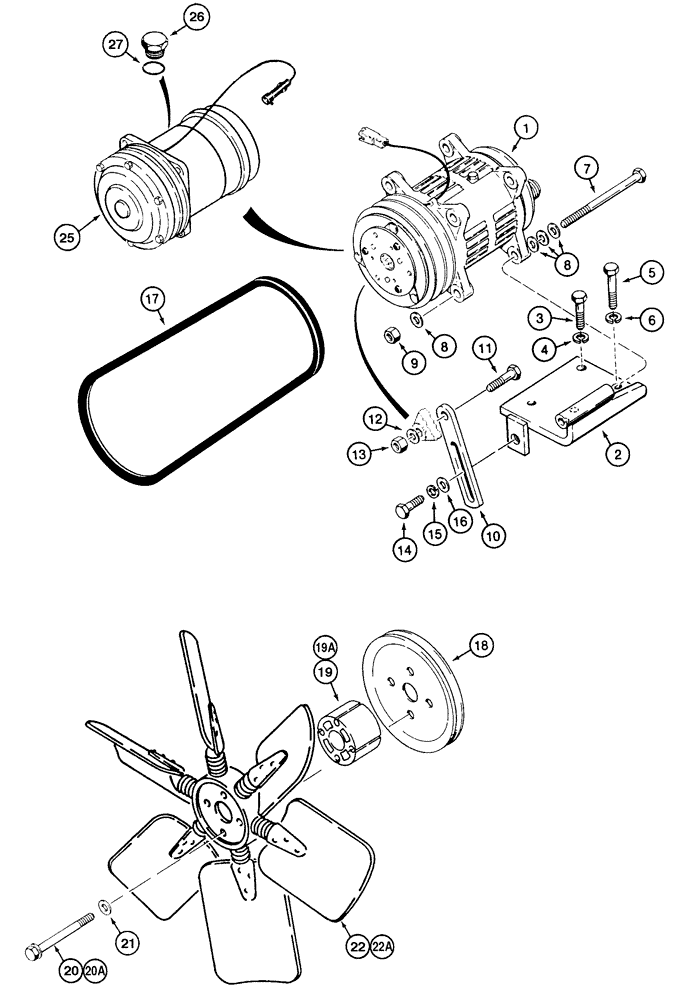

Запчасти Case 855E (9-098) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

97179C2

COMPRESSOR

ASSEMBLY - air conditioning, used with R-12 refrigerant, parts list figure 9-100

1шт.

2

84711C1

SUPPORT

BRACKET - compressor mounting

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

4

892-11010

LOCK WASHER,M10

1шт.

5

R58601

HARNESS

- cab, air conditioning, high pressure switch and compressor to main cab harness

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

814-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 8.8

- hex, 10 - 1.5 x 130 mm

1шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

9

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

10

84716C1

SUPPORT

STRAP - adjusting, compressor

1шт.

11

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

12

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

1шт.

13

825-1410

NUT,M10, Cl 8

1шт.

14

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

15

892-11010

LOCK WASHER,M10

1шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

17

S82985

V-BELT,36.70" L

BELT , Compressor drive 36.70" L

1шт.

18

A189155

PULLEY

- compressor drive, compressor

1шт.

19

A184545

SPACER

fan, 49.5 mm long, use with A173564 reversible fan

1шт.

19a

A184546

SPACER

- fan, 60 mm long, use with A173557 reversible fan

1шт.

20

J904446

FLANGE BOLT,Hex, M10 x 70mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

4шт.

20a

814-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

21

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

4шт.

22

A173564

FAN

- reversible, use with A184545 fan spacer

1шт.

22a

A173557

FAN

- reversible, use with A184546 fan spacer

1шт.

23

R58601

HARNESS

- air conditioning, see figure 9-96 item 43, not shown

1шт.

1990760C1

COMPRESSOR

ASSEMBLY - air conditioning, used with HFC 134A refrigerant

1шт.

86983967R

REMAN-COMPRESSOR,24V, W/ Clutch, W/ Pulley

850E, 855E Reman for new P/N 1990760C1

1шт.

86983967C

CORE-COMPRESSOR

Return Number

1шт.

24

NSS

NOT SOLD SEPARAT

COMPRESSOR - air conditioning, components not serviced separetely, order 1990760C1 compressor assembly

1шт.

25

138886A1

CLUTCH

- compressor, not shown

1шт.

26

A49667

PLUG

- hex

1шт.

27

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide

1шт.
