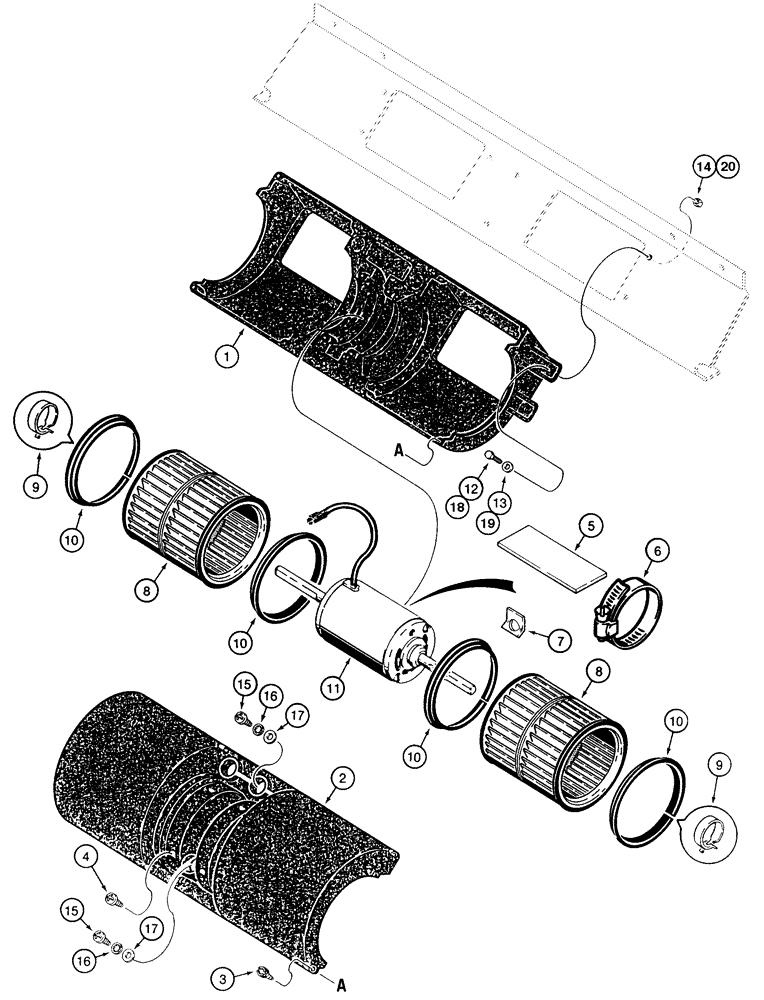

Запчасти Case 855E (9-092) - AIR CONDITIONING CONDENSER BLOWER, (ABOVE CAB ROOF) (09) - CHASSIS/ATTACHMENTS

1990972C1

BLOWER,12V, Assembly, Air Conditioning

BLOWER ASSEMBLY - air conditioning condenser, 24 volt

2шт.

1

F64740

HOUSING

- fan, lower

1шт.

2

F64741

HOUSING

- fan, upper

1шт.

3

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, , Fan housings, outer ends Cross Pan Hd, M4.8 x 19, Coated

8шт.

4

187-1928

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan head Phillips, No. 10-16 x 1 inch, fan housings, center

4-6шт.

5

1999608C1

GASKET

- 1 x 4 x 1/16 inch, motor mount

2шт.

6

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch dia, around motor

1шт.

7

R51563

CLIP,ELECTRICAL

CLIP - motor retaining clamp

1шт.

8

F64935

BLOWER,Fan

FAN - condenser blower

2шт.

9

F64936

CLAMP

- steel spring, fan retaining

2шт.

10

F64739

RING

- plastic, fan retaining

4шт.

11

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal

1шт.

11

370512A1R

REMAN-ELECTRIC MOTOR

850E, 855E, Reman For New P/N 1546448C1

1шт.

11

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.

12

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch, if used

8шт.

13

495-31022

WASHER,#10

If used #10

8шт.

14

230-42409

NUT,#10-24, GA

NUT - hex, self-locking, No. 10 NC, if used

8шт.

15

265-14512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, oval Phillips, No. 10-16 x 3/4 inch

2шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

17

495-31022

WASHER,#10

2шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

10шт.

Items 18, 19 and 20 are used on blower housings after tractor P.I.N. JAK0003274 and on units reworked according Service Bulletin NCR SB 017 92.

1шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

10шт.

Items 18, 19 and 20 are used on blower housings after tractor P.I.N. JAK0003274 and on units reworked according Service Bulletin NCR SB 017 92.

1шт.

20

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

10шт.

Items 18, 19 and 20 are used on blower housings after tractor P.I.N. JAK0003274 and on units reworked according Service Bulletin NCR SB 017 92.

1шт.
