(9-090) - AIR CONDITIONING SYSTEM, COVERS AND MOUNTING - ABOVE CAB ROOF

Запчасти Case 855E (9-090) - AIR CONDITIONING SYSTEM, COVERS AND MOUNTING - ABOVE CAB ROOF (09) - CHASSIS/ATTACHMENTS

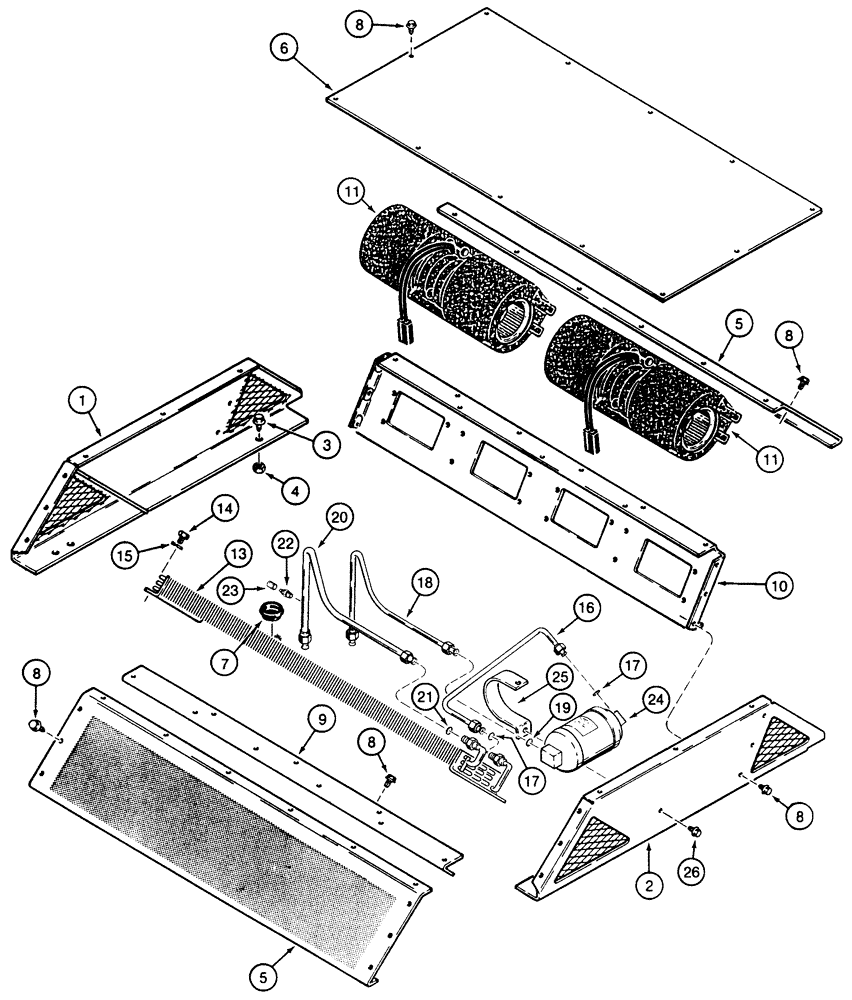

Схема запчастей Case 855E - (9-090) - AIR CONDITIONING SYSTEM, COVERS AND MOUNTING - ABOVE CAB ROOF (09) - CHASSIS/ATTACHMENTS
24
16
14
6
18
13
21
25
9
20
26
8
3
1
22
4
5
5
8
2
17
8
7
10
11
8
23
8
17
11
15
19
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R48827

PANEL, SIDE

PANEL - with screens, left-hand side

1шт.

2

1999418C1

PANEL

- with screens, right-hand side

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

4

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

4шт.

5

R48829

SIEVE

SHIELD - perforated, front and rear

2шт.

6

1999421C1

COVER

- air conditioning system

1шт.

7

1546466C1

GROMMET

- 1 inch (25 mm) diameter hole, hose and wire through roof

1шт.

8

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

44шт.

9

R48831

SUPPORT

- rear shield mounting

1шт.

10

R49055

SUPPORT

- blower mounting

1шт.

11

1999670C1

BLOWER ASSY.

BLOWER ASSEMBLY - air conditioning condenser, 24 volt, parts list figure 9-92

2шт.

13

1999513C1

CONDENSER

- core, air conditioning

1шт.

14

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

15

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

16

1975771C1

TUBE

- lower outlet tube on, Serial Range: condenser-receiver-drier

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

1975772C1

TUBE

- receiver-drier to roof, attaches to tube at evaporator core expansion valve lower port, item 8 on figure 9-94

1шт.

19

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

20

1999676C1

TUBE

- discharge, roof to upper inlet tube on condenser, attaches to item 1 hose on figure 9-94

1шт.

21

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

22

1250594C1

CORE

VALVE - tube

1шт.

23

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare, protective cover

1шт.

24

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning system

1шт.

25

1999510C1

STRAP

BRACKET - receiver-drier

1шт.

26

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.
