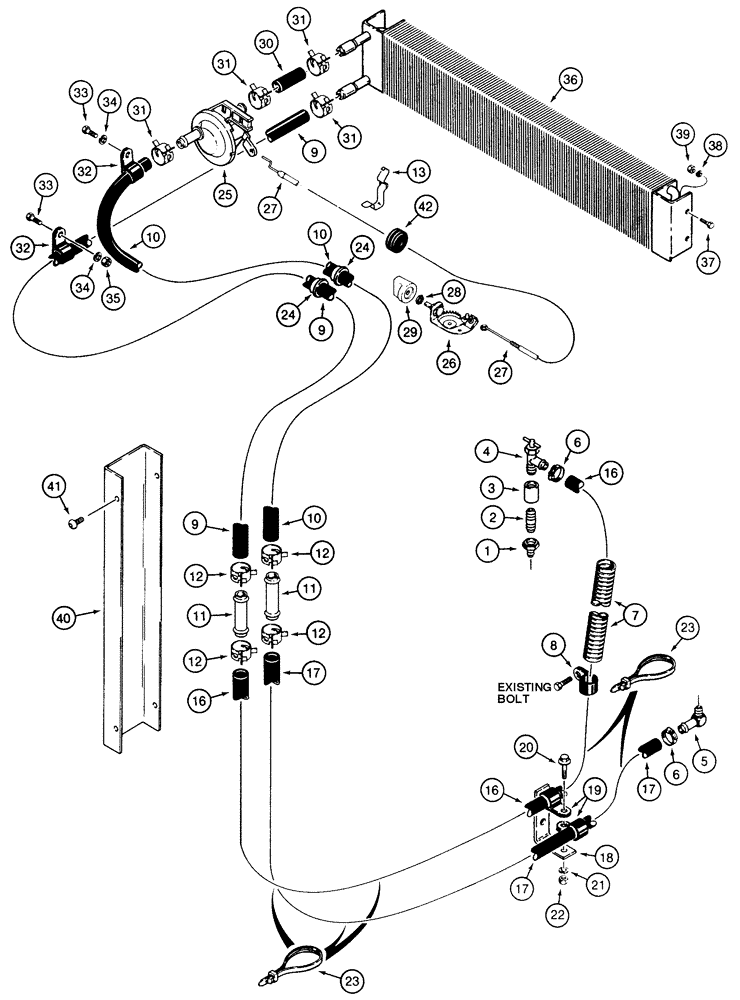

Запчасти Case 855E (9-088) - CAB HEATING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female

1шт.

2

221-1165

JUNCTION

NIPPLE - straight, 3/8 PT x 2-1/2 inch

1шт.

3

221-1337

COUPLING,Pipe, 3/8" NPT

- pipe, 3/8 inch

1шт.

4

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heater supply hose

1шт.

5

R50454

FITTING

ELBOW - 90 degree, special

1шт.

6

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

2шт.

7

S121023

CONDUIT

- 15-3/4 inch (400 mm) long, inlet hose, cut from S118400X, see below

1шт.

8

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Inlet hose, Uses existing bolt on engine oil cooler 7/8", Insul, 3/8" Bolt

1шт.

9

R55243

HEATER HOSE,15.50 mm ID x 2300.00 mm

Inlet supply to heater core, Cut from 97252CX bulk hose, See below 15.50 mm ID x 2300.00 mm

1шт.

10

R55242

HEATER HOSE,15.50 mm ID x 2550.00 mm

- Outlet, Return from flow control valve, Cut from 97252CX bulk hose, See below 15.50 mm ID x 2550.00 mm

1шт.

11

1301342C1

FITTING

TUBE - hose splice

2шт.

12

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

4шт.

13

1954626C1

SPRING CLIP

CLIP - retaining, heater cable

1шт.

16

R55245

HEATER HOSE,15.50 mm ID x 3700.00 mm

- Inlet, Heater supply from engine, Cut from 97252CX bulk hose, See below 15.50 mm ID x 3700.00 mm

1шт.

17

R55244

HEATER HOSE,15.50 mm ID x 4500.00 mm

Outlet, Heater return to engine, Cut from 97252CX bulk hose, See below 15.50 mm ID x 4500.00 mm

1шт.

18

R51414

SUPPORT

BRACKET - heater hoses, use existing mounting hardware

1шт.

19

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Hoses 7/8", Insul, 3/8" Bolt

2шт.

20

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

1шт.

21

492-11038

LOCK WASHER,3/8"

1шт.

22

425-106

NUT,3/8"-16, Cl 5

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

24

353-482

PLUG

BUSHING - snap, 1-3/16 inch (30 mm ) ID

2шт.

25

1331087C1

HEATER VALVE

VALVE - flow control, heater

1шт.

1999504C1

CONTROL

ASSEMBLY - heater, includes cable

1шт.

26

NSS

NOT SOLD SEPARAT

CONTROL - heater

1шт.

27

NSS

NOT SOLD SEPARAT

CABLE - heater control

1шт.

28

109311H

JAM NUT

- hex, jam, 7/16 inch NF, special

1шт.

29

1994720C1

KNOB

- push on, heater control

1шт.

30

1975733C1

HEATER HOSE,15.50 mm ID x 180.00 mm

HOSE , Flow Control Valve to Heater Core, Cut from 97252CX bulk hose, See below 15.50 mm ID x 180.00 mm

1шт.

31

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

4шт.

32

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Heater supply and return hoses, clamp on return hose attaches to tapped block in cab 7/8", Insul, 3/8" Bolt

2шт.

33

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

34

492-11038

LOCK WASHER,3/8"

2шт.

35

425-106

NUT,3/8"-16, Cl 5

1шт.

36

F45204

HEAT-EXCHANGER

CORE - heater

1шт.

37

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

38

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

39

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

40

1999374C1

COVER

- hoses

1шт.

41

161-112

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 1/2"

BOLT - hex socket button head, 5/16 NC x 1/2 inch

4шт.

42

248-1336

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- rubber, 3/4 inch groove diameter, heater cable

1шт.

S118400X

LARGE HOSE,9.53mm ID x 7620mm L, SAE 30R2

CONDUIT - bulk, 300 inch (7620 mm) long

1шт.

97252CX

HOSE

- bulk, 5/8 (16) x 1 (25) x 600 inch (15240 mm) long

1шт.
