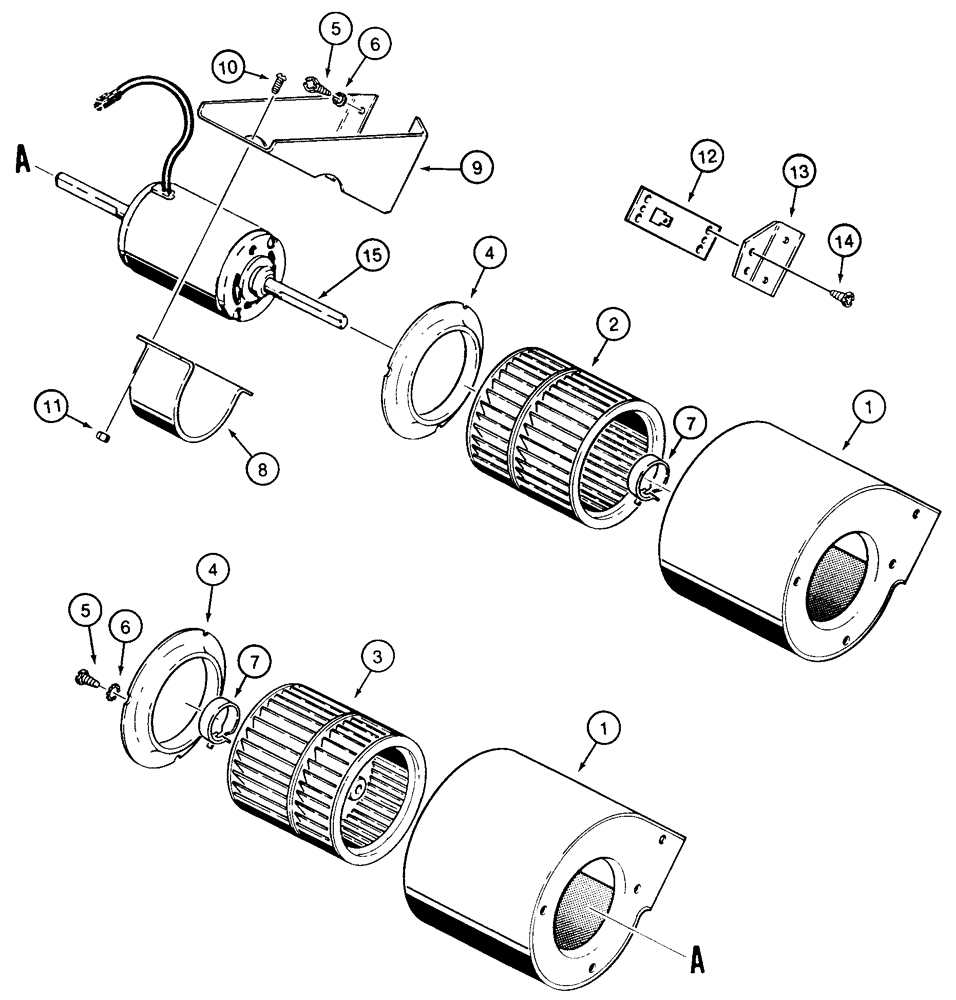

Запчасти Case 855E (9-086) - CAB BLOWER, (INSIDE CAB ROOF) (09) - CHASSIS/ATTACHMENTS

1

F96724

HOUSING

- blower fan

2шт.

2

F45020

BLOWER,Fan, RH

FAN - blower, right-hand

1шт.

3

F45021

BLOWER,Fan

FAN - blower, left-hand

1шт.

4

F63655

RETAINER

COVER - ring, fan end

2шт.

5

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

17шт.

6

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

17шт.

7

F64936

CLAMP

- steel spring, fan retaining

2шт.

8

F44728

CLAMP

-, Serial Range: motor-bracket

1шт.

9

F44729

BRACKET

- mounting, motor

1шт.

10

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

4шт.

11

231-14409

NUT,#10-24, GB

NUT - hex, self-locking, No. 10 NC

4шт.

12

F44903

RESISTOR

- blower speed, 24 volt

1шт.

13

R47848

SUPPORT

BRACKET - resistor mounting

1шт.

14

280-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, hex washer head, No. 10-16 x 1/2 inch

4шт.

15

1546448C1

MOTOR, ELECTRIC

MOTOR - blower, 24 volt, with molded terminal

1шт.

15

370512A1R

REMAN-ELECTRIC MOTOR

850E, 855E, Reman For New P/N 1546448C1

1шт.

15

370512A1C

CORE-ELECTRIC MOTOR

Return Number

1шт.
