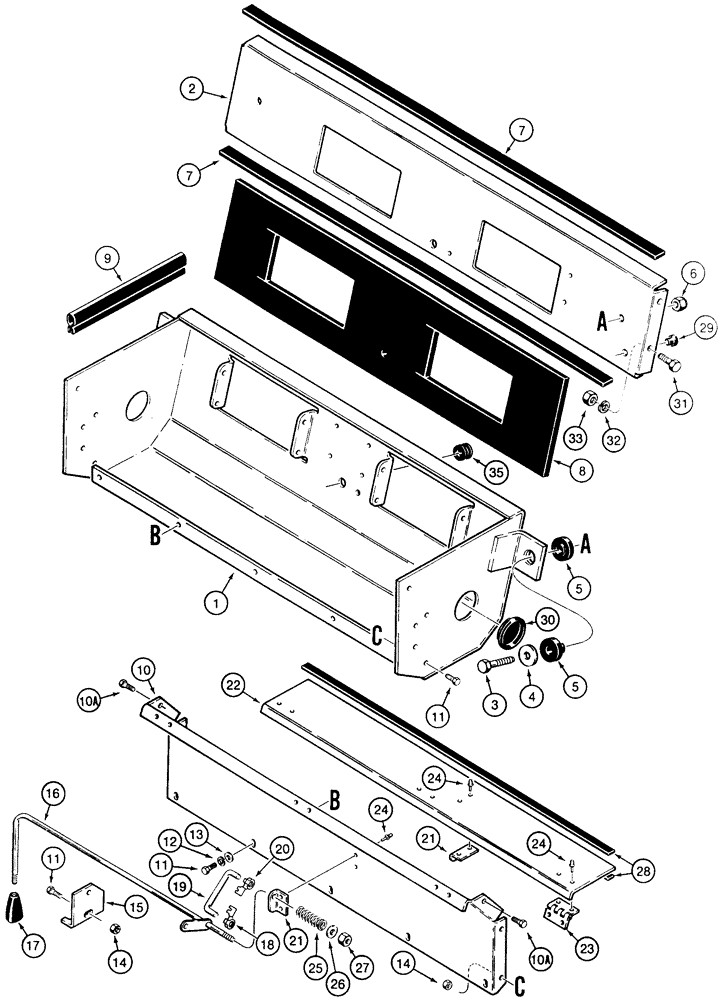

Запчасти Case 855E (9-084) - CAB, BLOWER HOUSING AND AIR FLOW CONTROL (09) - CHASSIS/ATTACHMENTS

1

R44079

HOUSING

- blower

1шт.

2

R47838

PANEL

- blower, front

1шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

4

195-137

WASHER,13/32" x 1 1/8" x .180"

- flat, 13/32 x 1-1/8 x 3/16 inch

2шт.

5

R44084

BUSHING

INSULATOR - rubber

4шт.

6

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

R44282

SEAL

- blower housing, front panel, top and bottom, 31-1/2 inch (800 mm) long

2шт.

8

R44083

INSTRUCTION

- blower housing, front

1шт.

9

R44801

SEAL - rubber, blower housing, 8-1/4 inch (210 mm) long, cut from F43117X bulk, see below

2шт.

10

R44792

PANEL

- blower, rear

1шт.

10a

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

11

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

10шт.

12

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

13

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

5шт.

14

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

7шт.

15

R44799

BRACKET

- adjustment lever, air flow control

1шт.

16

R44795

LEVER

- adjustment, air flow control

1шт.

17

F64341

KNOB

- adjustment lever

1шт.

18

F43349

CLIP

- adjustment, Serial Range: lever-rod

1шт.

19

R44798

THREADED ROD

ROD - air flow control

1шт.

20

F43350

CLIP

-, Serial Range: rod-bracket

1шт.

21

R44794

SUPPORT

BRACKET - panel, air flow control

2шт.

22

R44793

PANEL

- air flow control

1шт.

23

F64065

HINGE

- panel

3шт.

24

151-546

RIVET,Pop, 1/8" x 5/16"

- break mandrel, 1/8 x 5/16 inch

16шт.

25

F62245

SPRING

- adjustment lever

1шт.

26

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

27

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

28

R44800

SEAL - foam, 23-5/8 inch (600 mm) long, air flow control panel, cut from A42905X bulk, see below

2шт.

29

353-700

BUSHING

- open/closed, 3/8 inch ID

1шт.

30

353-588

PLUG,1 3/4"

- button, 1-3/4 inch (44 mm) diameter

2шт.

31

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

32

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

33

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

34

R46825

DECAL

- Fresh Air, air recirculation, see figure 9-104, not shown

1шт.

35

96901C1

GROMMET

- blower motor wire

1шт.

F43117X

SEAL

- 100 ft. (30.4 m) long, rubber, bulk roll

1шт.

A42905X

FOAM

SEAL - foam, 1/8 (3) x 1/2 (13) x 360 inch (9144 mm) long

1шт.
