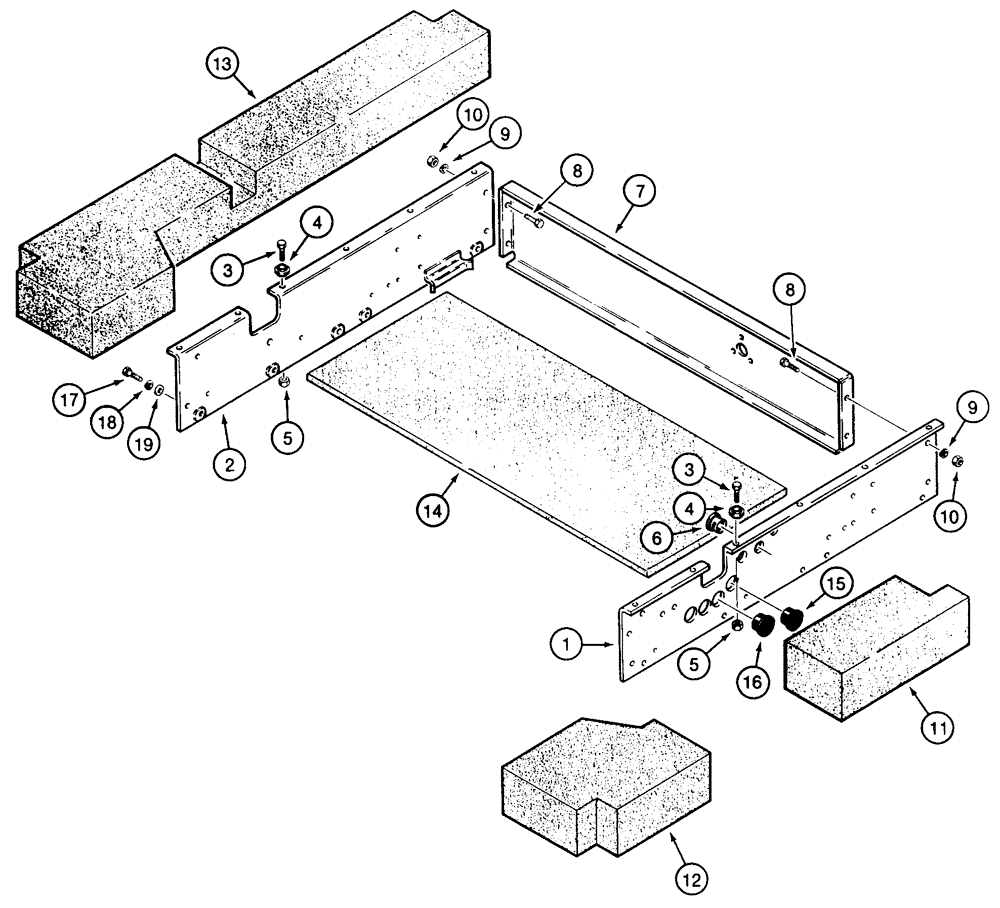

Запчасти Case 855E (9-080) - CAB, ROOF PADS AND ACCESSORY MOUNTING BRACKETS (09) - CHASSIS/ATTACHMENTS

1

1999506C1

BRACKET

- mounting, right-hand

1шт.

2

R47836

PANEL

BRACKET - mounting, left-hand

1шт.

3

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

12шт.

4

F42778

WASHER

- special

12шт.

5

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

12шт.

6

1546466C1

GROMMET

- 1 inch (25 mm) diameter hole, cab and air conditioner harness

2шт.

7

1999376C1

PANEL

BRACKET - windshield wiper mounting, front

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

11

1999821C1

PAD

- brown vinyl covered, right-hand, front

1шт.

12

1999822C1

PAD

- brown vinyl covered, right-hand, rear

1шт.

13

R51267

NOISE PROTECTION

PAD - brown vinyl covered, left-hand

1шт.

14

R44171

NOISE PROTECTION

PAD - foam, heat barrier, attaches to cab roof above heater and/or air conditioning cores

1шт.

15

353-422

PLUG,Dome, 1.250" hole, Nylon

Hose lines, Used on models without air conditioning, if used Dome, 1.250" hole, Nylon

1шт.

16

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon button, 1-3/16 inch, used on models without air conditioning, if used

1шт.

17

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

10шт.

18

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

10шт.

19

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

10шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.
