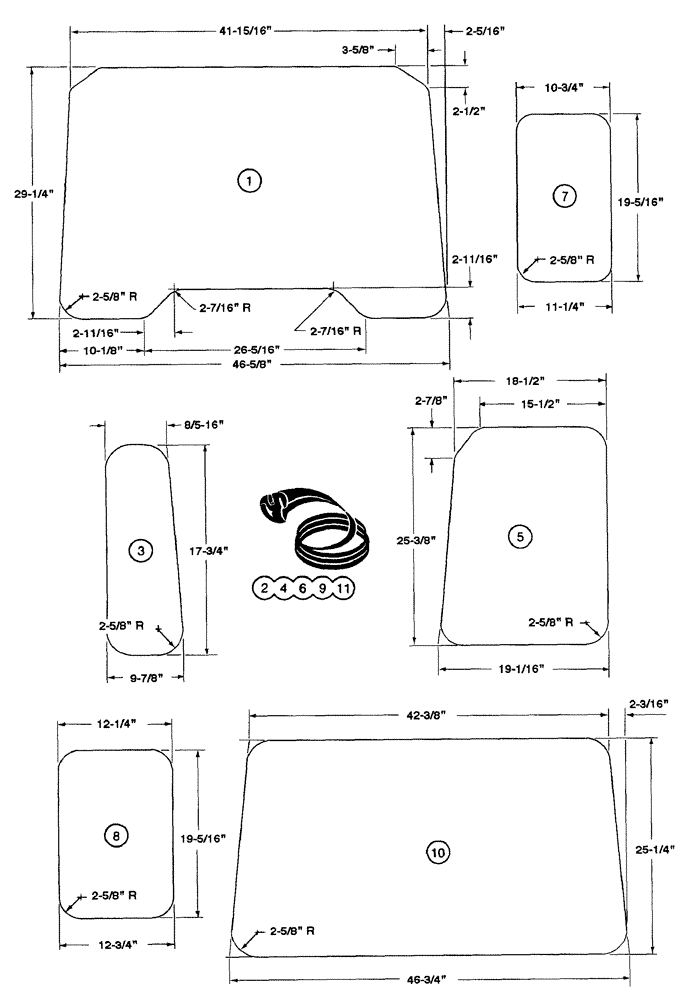

Запчасти Case 855E (9-072) - CAB GLASS, U.S. DIMENSIONS (09) - CHASSIS/ATTACHMENTS

1

R51883

GLASS - front windshield, see note below

1шт.

2

R51888

SEAL - front windshield glass, 142-1/8 inch long, cut from S118468X, see note below

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

3

R51350

GLASS - lower front, dozer models only, see note below

2шт.

4

R51351

HOUSING

SEAL - lower front glass, dozer models only, each 50 inch long, cut from S118468X, see note below

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

5

R51886

GLASS - side windows, see note below

2шт.

6

R51889

SEAL - side window glass, 84-1/16 inch long, cut from S118468X, see below

2шт.

7

R51884

GLASS - lower door, right-hand, see note below

4шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

8

R51885

GLASS - lower door, left-hand, see note below

2шт.

9

R51707

SEAL - lower door glass, both sides, each 61-5/8 inch long, cut from S118468X, see note below

2шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

10

R51887

GLASS - rear window, see note below

1шт.

11

R51890

SEAL - rear window glass, 136-1/4 inch long, cut from S118468X, see note below

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.

S118468X

SEAL

- bulk, 600 inch long

1шт.

All glass to be obtained from local source and must be 7/32 inch thick laminated safety glass (as described in S.A.E. J674), heat absorbing and with 70 to 75 percent light transmission. Sharp edges due to cutting must be finished to a number 4 or 5 edge (as described in S.A.E. J673a).

1шт.
