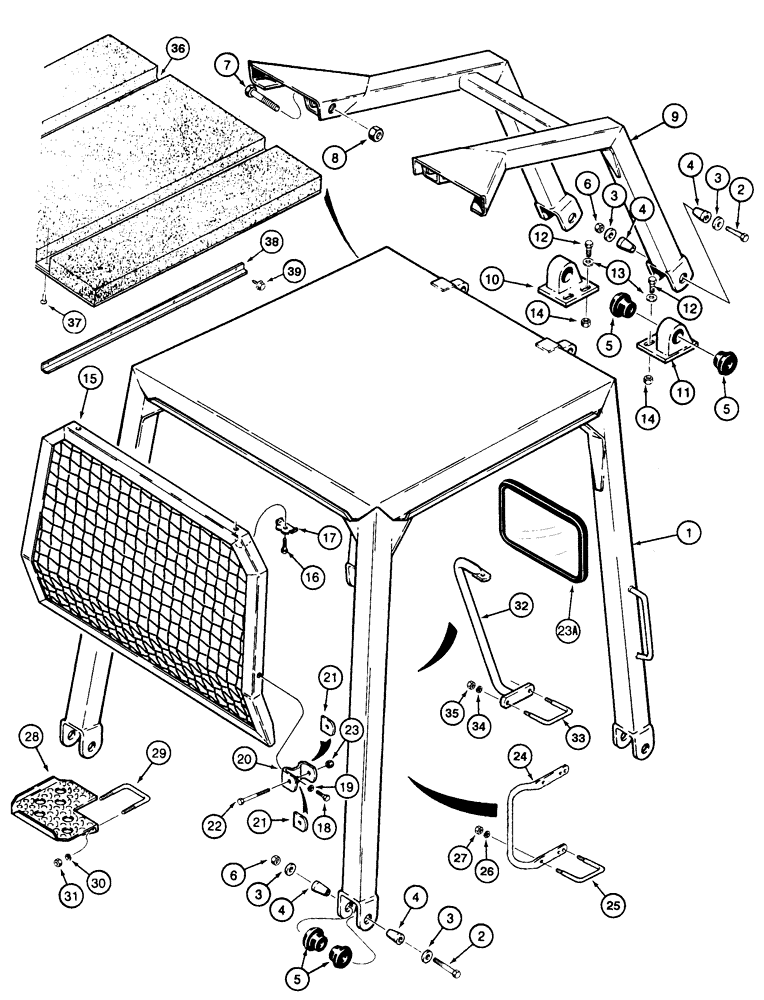

Запчасти Case 855E (9-060) - ROLL OVER PROTECTIVE STRUCTURE, CANOPY AND BRUSH GUARDS (09) - CHASSIS/ATTACHMENTS

1

180588A1

ROPS

CANOPY - ROPS, machinery item, order from Machinery Price List

1шт.

2

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch

6шт.

3

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 3/4 inch

12шт.

4

F44211

BUSHING,19.46mm ID x 38.1mm OD x 53.85mm L

- insert, mounting

12шт.

5

F44212

MOUNTING PARTS

INSULATOR - rubber, mounting

12шт.

6

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

6шт.

7

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

2шт.

8

230-41116

NUT,1"-8, GA

NUT - hex, self-locking, 1 inch NC

2шт.

9

181901A1

GUARD ASSY.

GUARD - brush

1шт.

10

F93983

BRACKET

- brush guard mounting, left-hand

1шт.

11

F93982

BRACKET

- brush guard mounting, right-hand

1шт.

12

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

- hex, 3/4 NC x 2 inch

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

4шт.

14

425-1012

NUT,3/4"-10, G5

4шт.

15

182020A1

SCREEN

- rear

1шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

17

182651A1

LOCK WASHER

- special tab locking, upper

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

182034A1

SPECIAL CLAMP

CLAMP - screen mounting

2шт.

21

R40074

CUSHION ASSY.

CUSHION - insulator, rubber, screen mounting

4шт.

22

413-884

BOLT,Hex, 1/2" - 13 x 5-1/4", Gr 5

- hex, 1/2 NC x 5-1/4 inch

2шт.

23

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

24

187453A1

HANDLE - grab, rear ROPS canopy frame, LGP models, parts used on backhoe

2шт.

25

108514A1

U-BOLT

- 3/8 inch, parts used on backhoe models

4шт.

26

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened, Parts used on backhoe models

8шт.

27

425-106

NUT,3/8"-16, Cl 5

Parts used on backhoe models 3/8"-16, G5

8шт.

28

R43973

LARGE PLATE

STEP - rear left-hand side of ROPS canopy frame, parts used on backhoe models

1шт.

29

R43971

BOLT

U-BOLT - 1/2 inch NC, parts used on backhoe models

1шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Parts used on backhoe models 1/2"

2шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, Parts used on backhoe models 1/2"-13, G5

2шт.

32

R38330

HANDLE

- grab, rear ROPS canopy frame, parts used on backhoe models

2шт.

33

R37009

BOLT

U-BOLT - 3/8 inch - 16 NC, parts used on backhoe models

2шт.

34

492-11038

LOCK WASHER,3/8"

parts used on backhoe models 3/8"

4шт.

35

425-106

NUT,3/8"-16, Cl 5

Parts used on backhoe models 3/8"-16, G5

4шт.

36

R48895

NOISE PROTECTION

HEADLINER - ROPS canopy, vinil covered, if used, parts used on backhoe models

1шт.

37

151-706

CLIP,Rd 7/8" Hd, 1/4" Hole

RETAINER - black, plastic, 1/4 inch hole size x 7/8 inch head dia, parts used on backhoe models

8шт.

38

R58402

ANGLE BAR

BRACKET - headliner retaining, parts used on backhoe models

2шт.

39

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self tapping, hex washer head, 1/4 NC x 3/4 inch, parts used on backhoe models

8шт.
