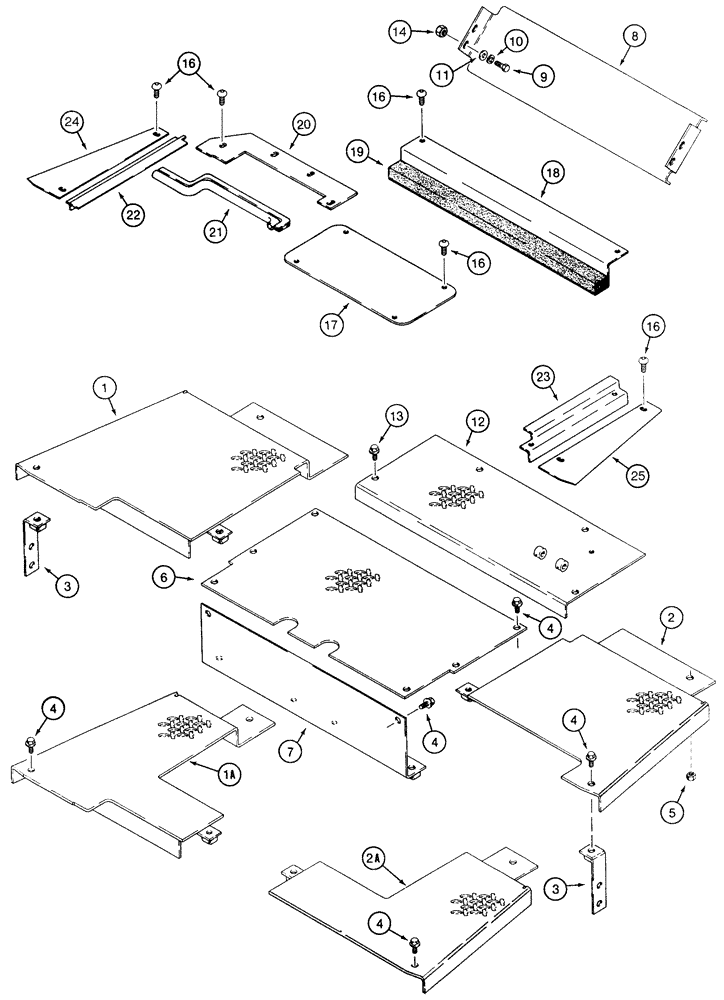

Запчасти Case 855E (9-048) - FLOOR AND STEP PLATES (09) - CHASSIS/ATTACHMENTS

1

R57961

PLATE

- step, left-hand, dozer models

1шт.

1a

R57972

STEP

PLATE - step, left-hand, loader models

1шт.

2

R57966

PLATE

- step, right-hand, dozer models

1шт.

2a

R57974

STEP

PLATE - step, right-hand, loader models

1шт.

3

R57968

BRACKET

- support, step plate

2шт.

4

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

10шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

R57960

LARGE PLATE

PLATE - floor

1шт.

7

R57970

PLATE

- heel

1шт.

8

R57957

LARGE PLATE

PLATE - foot rest

1шт.

9

33-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT - carriage, 3/8 NC x 1-1/4 inch

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

12

R57958

LARGE PLATE

PLATE - throttle

1шт.

13

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

4шт.

14

425-106

NUT,3/8"-16, Cl 5

4шт.

16

161-105

HEX SOC SCREW,Btn Hd, 5/16" - 18 x 3/4"

BOLT - hex socket button head, 5/16 NC x 3/4 inch, parts used on cab models only

16шт.

17

1999358C1

PLATE

- floor, cover, parts used on cab models only

1шт.

18

1999583C1

SUPPORT ASSY.

SUPPORT - floor, parts used on cab models only

1шт.

19

1999823C1

SEAL

- 25 x 38 x 675 mm long, adhesive back , floor support, parts used on cab models only

1шт.

20

1999349C1

PLATE ASSY.

PLATE - seal, fuel tank, parts used on cab models only

1шт.

21

1999824C1

SEAL

- fuel tank plate, cut from 1999833C1, see below, parts used on cab models only

1шт.

22

1999368C1

BRACKET

- angle, trim, floormat, left-hand, parts used on cab models only

1шт.

23

1999367C1

BRACKET

- angle, trim, floormat, right-hand, parts used on cab models only

1шт.

24

1999343C1

PLATE

- filler, step, left-hand, parts used on cab models only

1шт.

25

1999345C1

PLATE

- filler, step, right-hand, parts used on cab models only

1шт.

1999833C1

SEAL

- bulk, 740 mm long, parts used on cab models only

1шт.
