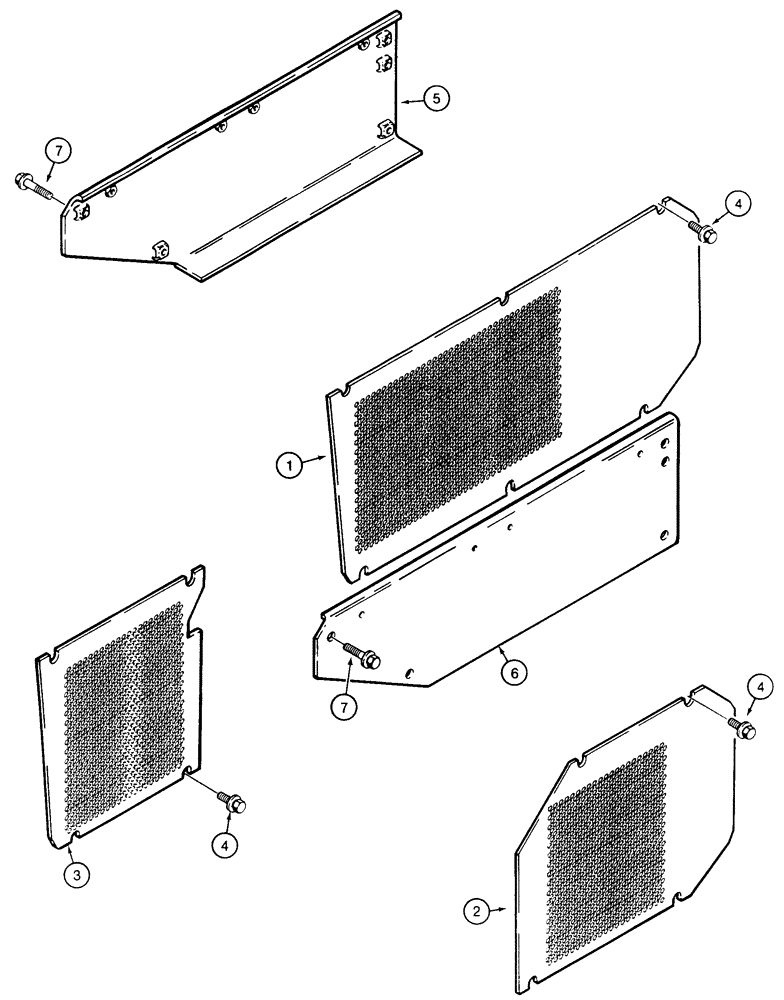

Запчасти Case 855E (9-046) - ENGINE SIDE SHIELDS (09) - CHASSIS/ATTACHMENTS

1

R49553

GUARD

SHIELD - engine side, loader models

2шт.

2

R49552

GUARD

SHIELD - engine side, front, dozer and drawbar models

2шт.

3

R42613

LARGE PLATE

SHIELD - engine side, rear, dozer and drawbar models

2шт.

4

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

12-16шт.

5

R49548

GUARD

SHIELD - lower, left-hand, used on all models

1шт.

6

R49549

GUARD

SHIELD - lower, right-hand, used on all models

1шт.

7

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

8шт.

70996

CAGE

1шт.

129-857

SQUARE NUT,Sq, 1/2"-13

cage, replaces 25-288

1шт.
