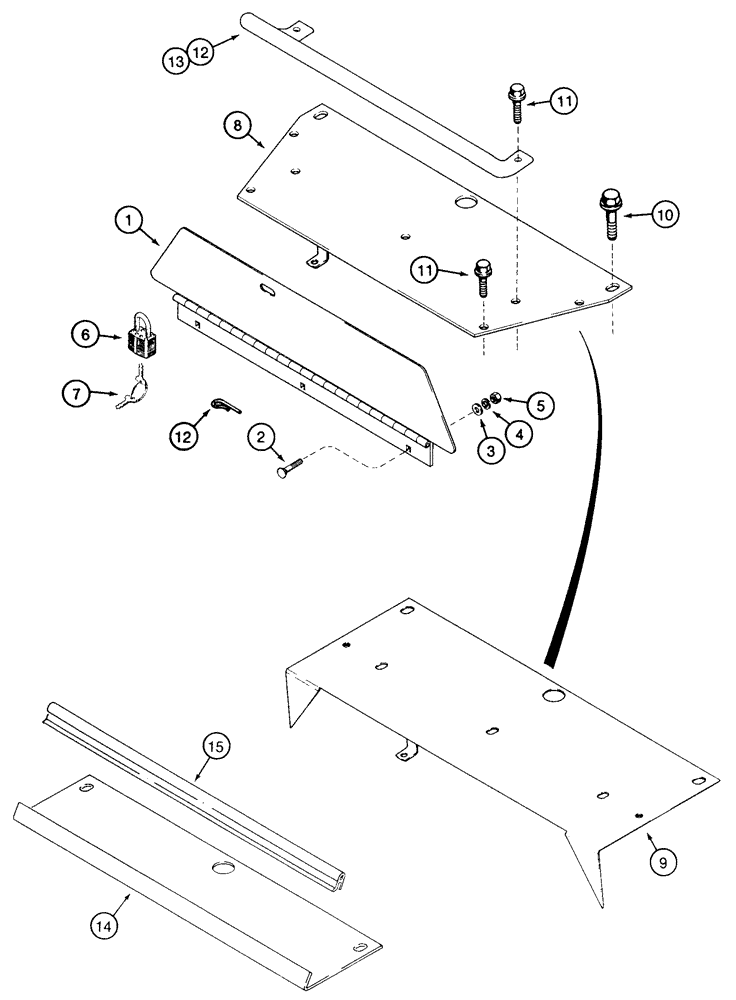

Запчасти Case 855E (9-044) - INSTRUMENT PANEL COVERS (09) - CHASSIS/ATTACHMENTS

1

R58347

COVER

- instrument panel lockup

1шт.

2

A42923

CARRIAGE BOLT

BOLT - carriage, special, 5/16 NC x 27/32 inch

3шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

6

D93753

PADLOCK

- instrument panel cover, includes keys

1шт.

7

R29555

KEY

- for Master padlock only, if used

2шт.

7

D93751

SET OF 2 KEYS

KEY - for Yale padlock only, if used

2шт.

8

107463A1

COVER

- gauges, top, dozer models, with or without cab, for decals see figure 9-102

1шт.

9

107464A1

COVER

- gauges,loader models, with or without cab, for decals see figure 9-102

1шт.

10

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

2шт.

11

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

5-7шт.

12

R58279

RAIL

HANDRAIL - bolt-on, dozer models

1шт.

13

R43077

HANDLE

HANDRAIL - bolt-on, loader models

1шт.

14

NLS

NO LONGER SERVICED

COVER - gauges, for decals see figure 9-102 cab loader models

1шт.

15

R51362

SEAL

- 26-3/4 inch long, cover (680 mm) long, cab models

1шт.

16

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Not shown

1шт.
