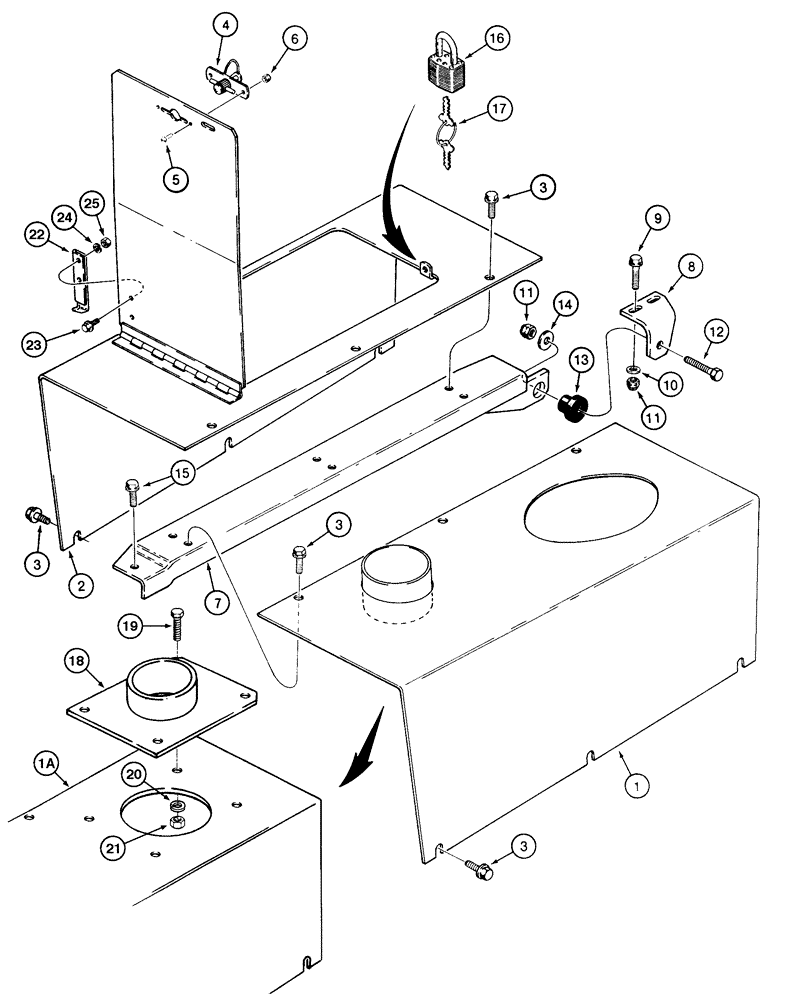

Запчасти Case 855E (9-042) - HOOD (09) - CHASSIS/ATTACHMENTS

1

R51670

HOOD

- right-hand, if used

1шт.

1a

189352A1

HOOD

- right-hand

1шт.

2

R51671

HOOD

- left-hand

1шт.

3

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

12шт.

4

R51672

FASTENER

- access door, air cleaner

1шт.

5

70-1108

SCREW,Pan HD, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

6

F45165

SPECIAL NUT,#10-24

NUT - hex, self-locking, special, No. 10 NC

2шт.

7

R51760

SUPPORT

BRACKET - center, hood mounting

1шт.

8

R53987

SUPPORT

BRACKET - angle, hood retainer, front, bolts to radiator top cover

1шт.

9

160-109

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

- hex flange, 1/2 NC x 1-3/4 inch grade 8

2шт.

10

R24323

WASHER

- flat, special, 13.5 x 25 x 4.5 mm hardened

2шт.

11

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

3шт.

12

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

13

CASL13142

BUSHING

- isolator, hood mounting, rubber

1шт.

14

D25022

WASHER

- flat, special, 17/32 x 1-3/4 x 3/16 inch

1шт.

15

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

7шт.

16

D93753

PADLOCK

- air cleaner access cover, includes keys

1шт.

17

R29555

KEY

- for Master padlock only

2шт.

17

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

18

189673A1

ANCHOR

PLATE - stack, if used

1шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

21

496-81003

WASHER,10.31mm ID x 26.98mm OD x 3.07mm Thk

- flat, 13/32 x 1-1/16 x 3/32 inch, hardened

4шт.

Part of Muffler Service Kit P/N 192381A1

1шт.

22

R50492

SUPPORT

BRACKET - stop, air cleaner access door, used on models with cab only

1шт.

23

121-130

SERRATED BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Used on models with cab only Hex Flg, 5/16"-18 x 3/4", Serr

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, , Used on models with cab only 5/16"

2шт.

25

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Used on models with cab only

2шт.

192381A1

SPARE PART SET

KIT - muffler, service, Includes: Ref. 18-21 and also, 2-9 in Figure 02-58B. See Service Bulletin NCR SB 005.1 95., used on models with cab only

1шт.
