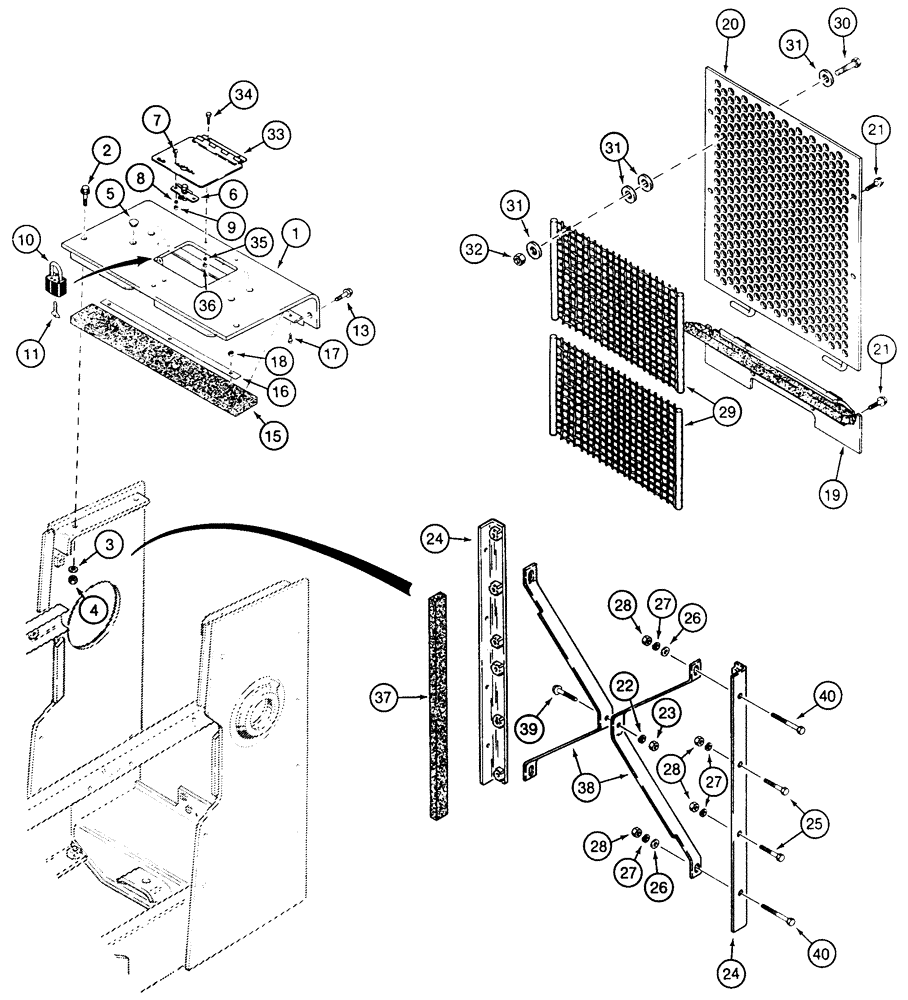

Запчасти Case 855E (9-038) - RADIATOR GUARDS, GRILLE, AND SCREENS (09) - CHASSIS/ATTACHMENTS

1

R58023

PLATE ASSY.

PLATE - radiator access, top

1шт.

2

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

3

R24323

WASHER

- flat, special,13.5 x 25 x 4.5 mm, hardened

2шт.

4

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

5

353-409

PLUG,Dome, .812" hole, Nylon

- button, 13/16 inch (21 mm) dia., used when ROPS brush guard is not used

4шт.

6

R51672

FASTENER

- radiator access door

1шт.

7

470-1108

SCREW,Slotted Pan Hd, #10-24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

8

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

225-14110

NUT,#10-24

2шт.

10

D93753

PADLOCK

- radiator access, includes keys

1шт.

11

R29555

KEY

- for Master padlock only

2шт.

11

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

13

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

2шт.

15

R57429

PAD

- 27-5/32 (690) x 3-1/2 inch (90 mm), attaches to plate with adhesive, cut from R30870 bulk pad, see below

1шт.

16

R50238

LARGE PLATE

STRIP - backing, upper radiator baffle pad

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

3шт.

18

231-4115

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

19

R51622

LARGE PLATE

PLATE - mounting, includes pad

1шт.

20

R58077

GRILLE

- radiator, heavy-duty

1шт.

21

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

10шт.

R30870

PAD

- bulk, 54 (1372) x 72 (1829) x 1 inch (25 mm) thick, use for Ref. 15

1шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce, used for Ref. 15

1шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

R32443

SUPPORT

BRACKET - grille mounting

2шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

4шт.

26

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

28

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

29

R45984

SCREW

SCREEN - brush, bolts to inside of grille, if used

2шт.

30

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

12шт.

31

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

- flat, special, hardened

48шт.

32

230-4116

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

12шт.

33

R58131

COVER

- radiator access

1шт.

34

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

2шт.

35

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

36

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

37

R53624

PAD

- non-recirculating, 2 x 31-5/16 inch

2шт.

38

R48076

BRACE

- radiator shroud, not used on models with a backhoe

2шт.

On models with a backhoe, the backhoe hydraulic circuit oil cooler is mounted in place of the radiator shroud cross brace. For the oil cooler mounting see Figure 8-42.

1шт.

39

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

1шт.

40

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.
