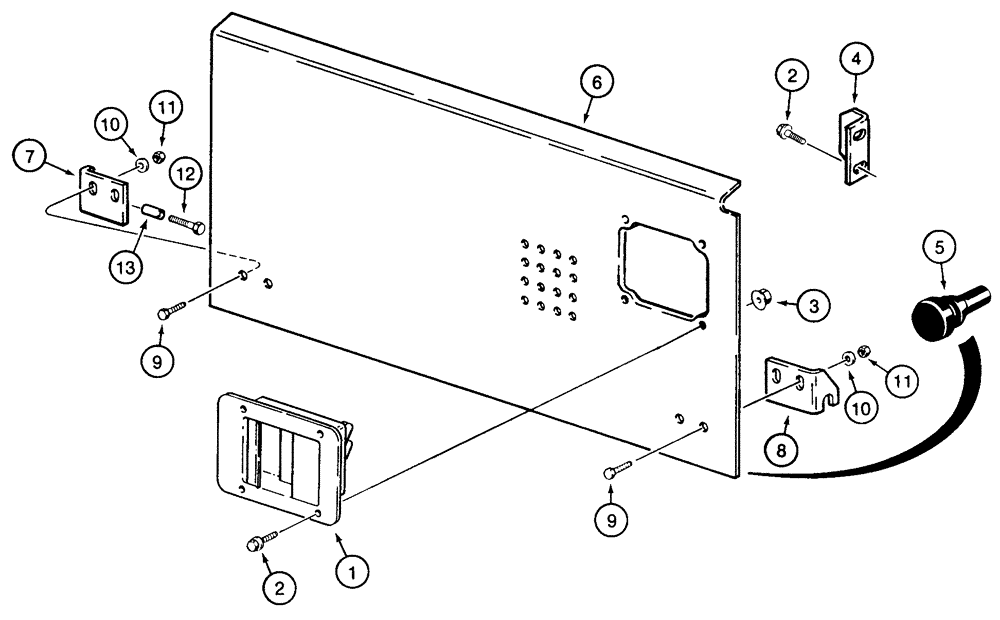

Запчасти Case 855E (9-036) - REAR ACCESS COVER, USED ON MODELS WITH A BACKHOE ONLY (09) - CHASSIS/ATTACHMENTS

1

R56221

LATCH

- rear access cover

1шт.

2

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

6шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

4

R56397

LARGE PLATE

STRIKER - rear cover latch

1шт.

5

A161780

BUMPER

- rubber, rear cover, on hydraulic reservoir flange

1шт.

6

R55914

LARGE PLATE

COVER - rear, with decals

1шт.

7

R47813

ANGLE

BRACKET - cover mounting, left-hand

1шт.

8

R47814

ANGLE

BRACKET - cover mounting, right-hand

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

10

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self locking, 3/8 inch NC

4шт.

12

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

13

D33553

BUSHING

SPACER - bracket

2шт.
