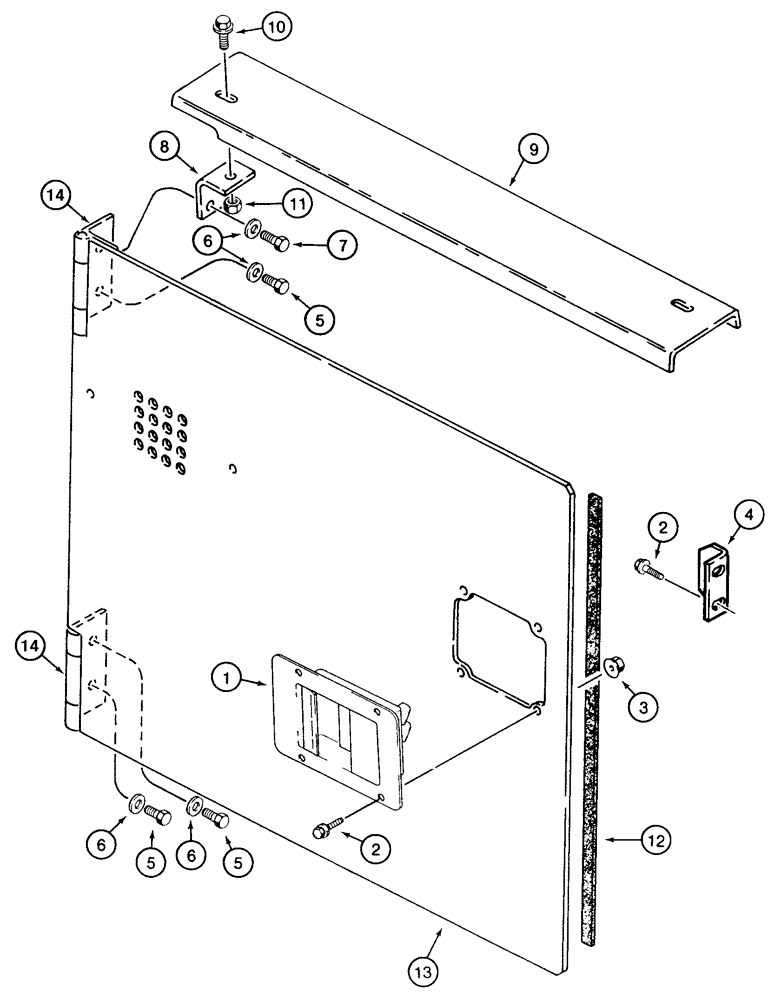

Запчасти Case 855E (9-034) - REAR ACCESS COVER, USED ON MODELS WITHOUT A BACKHOE (09) - CHASSIS/ATTACHMENTS

1

R56221

LATCH

- rear access cover

1шт.

2

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex flange, 1/4 NC x 3/4 inch

6шт.

3

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

4

R56397

LARGE PLATE

STRIKER - latch, rear cover

1шт.

5

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

6

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

5шт.

7

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

8

R48725

SUPPORT

BRACKET - mounting, top cover support

2шт.

9

R49363

COVER

- top

1шт.

10

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

11

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - light hex, self locking, 3/8 inch NC

2шт.

12

R56995

PROTECTION STRIP

PAD - door bumper, 3 x 16 x 515 mm

1шт.

13

R55173

COWLING ASSY

COVER - rear, hinged, models without cab, includes decals

1шт.

13

101194A1

COVER

- rear, hinged, models with cab, includes decals

1шт.

14

R50984

HINGE

- cover, service

2шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.
