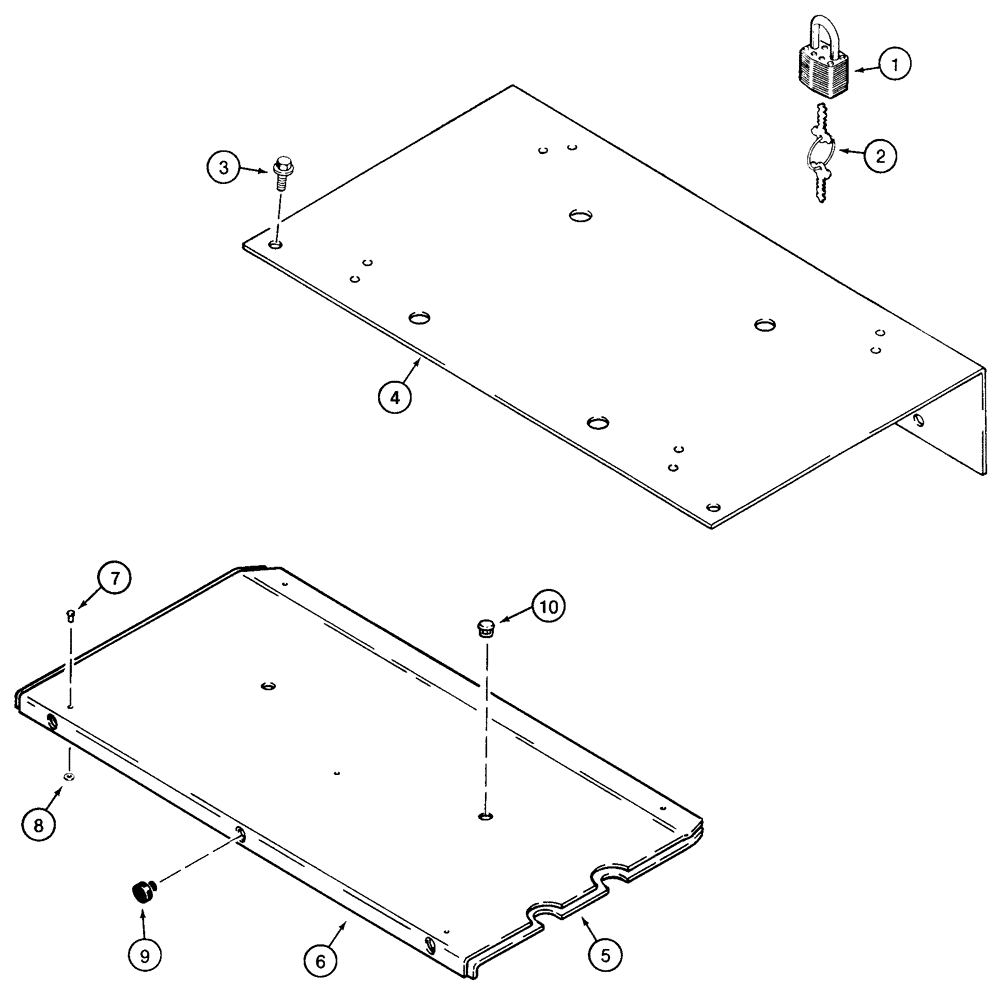

Запчасти Case 855E (9-032) - BATTERY COVER AND SEAT MOUNTING PLATE (09) - CHASSIS/ATTACHMENTS

1

D93753

PADLOCK

- master disconnect switch, includes keys, if used

1шт.

2

R29555

KEY

- for Master padlock only

2шт.

2

D93751

SET OF 2 KEYS

KEY - for Yale padlock only

2шт.

3

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

4

R58423

SUPPORT

- seat mounting plate, includes battery decal, for decal see figure 9-102

1шт.

R58421

COVER ASSY

COVER ASSEMBLY - battery

1шт.

5

R58420

COVER

PAD - battery cover

1шт.

6

R58419

COVER

- battery

1шт.

7

151-522

RIVET,Pop, 3/16" x .575"

- break mandrel, 3/16 x 17/32 inch

5шт.

8

495-31020

WASHER,#10

flat (13/64" x 15/32" x 3/64") #10

5шт.

9

F22426

STOP

BUMPER - rubber

3шт.

10

353-404

PLUG,Dome, .500" hole, Nylon

If used Dome, .500" hole, Nylon

1шт.
