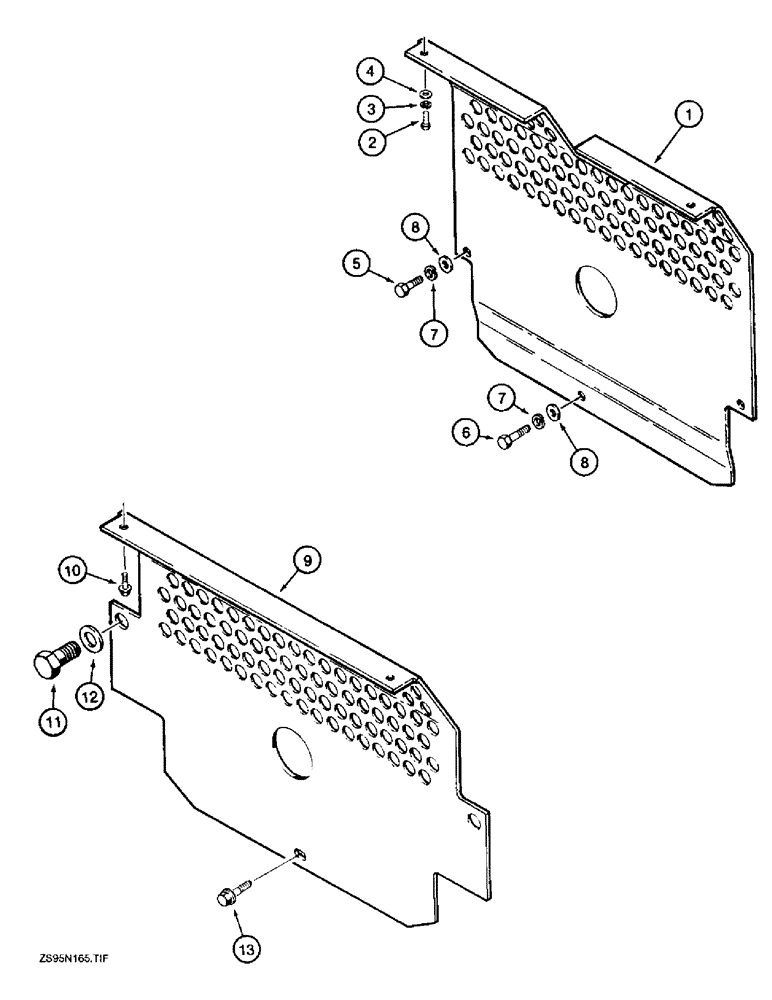

Запчасти Case 855E (9-030) - REAR TRANSMISSION GUARDS, USED ON MODELS WITH A RIPPER (09) - CHASSIS/ATTACHMENTS

1

R51764

GUARD

- models with a ripper

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

8

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

9

R51773

GUARD

- dozer or drawbar models with no rear equipment

1шт.

10

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, dozer or drawbar models with no rear equipment

2шт.

11

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

- hex, 1 NC x 1-1/2 inch, dozer or drawbar models with no rear equipment

2шт.

12

D30196

WASHER

- flat, special, 1 inch, hardened, dozer or drawbar models with no rear equipment

2шт.

13

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8, dozer or drawbar models with no rear equipment

1шт.
