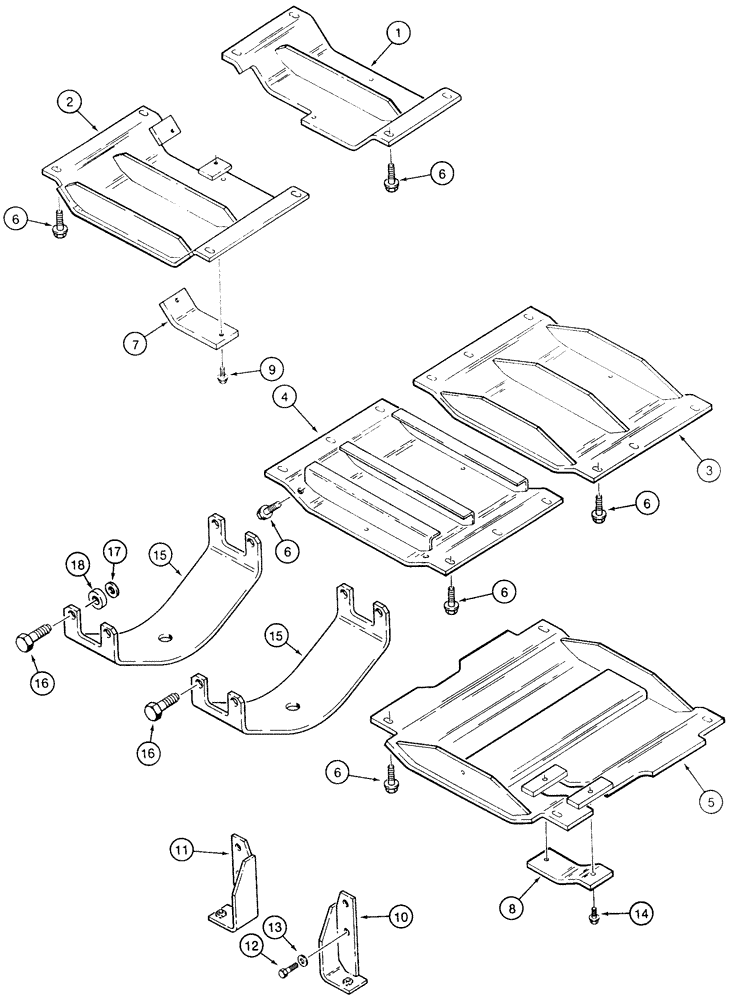

Запчасти Case 855E (9-028) - UNDERCARRIAGE GUARDS (09) - CHASSIS/ATTACHMENTS

1

R50231

RUNNER

GUARD - engine, front

1шт.

2

R50233

GUARD

- engine oil pan

1шт.

3

R31581

GUARD

- power train, front

1шт.

4

R31580

GUARD

- power train, rear

1шт.

5

R46834

GUARD

- transmission

1шт.

6

360-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex flange, 5/8 NC x 2 inch, grade 8

26шт.

7

R48345

COVER

- engine oil drain

1шт.

8

R49641

COVER

- transmission oil drain

1шт.

9

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8

2шт.

10

R45020

BRACKET

- right-hand, transmission guard mounting, if used

1шт.

11

R45022

BRACKET

- left-hand, transmission guard mounting, if used

1шт.

12

413-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

- hex, 3/4 NC x 1-1/2 inch

4шт.

13

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 20 x 44 x 6 mm, hardened

4шт.

14

160-102

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

2шт.

15

R57673

GUARD

- final drive, if used

2шт.

16

326-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

8шт.

17

D30196

WASHER

- flat, special, 1 inch, hardened

8шт.

18

R57674

SPACER

- final drive guard, use with rear guard mounting bolts only, if used

4шт.
