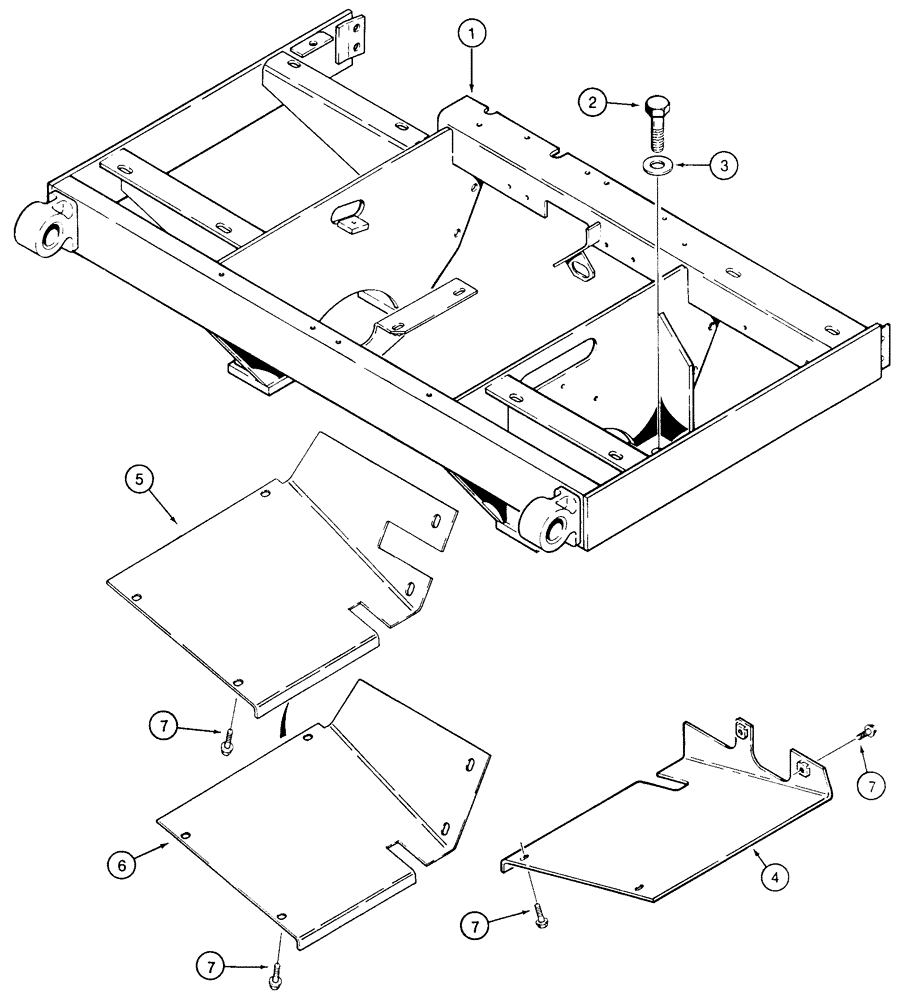

Запчасти Case 855E (9-026) - SEAT AND TANK FRAME (09) - CHASSIS/ATTACHMENTS

1

R57836

FRAME ASSY

FRAME - seat and tank

1шт.

2

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

BOLT, Locking, 1"-8 x 2 1/2", G8

4шт.

3

D30196

WASHER

- flat, special, 1 inch, hardened

4шт.

4

R58110

GUARD ASSY.

GUARD - hydraulic lines, right-hand

1шт.

5

R58112

GUARD

- hydraulic lines, left-hand, loader models

1шт.

6

R58113

GUARD

- hydraulic lines, left-hand, dozer models

1шт.

7

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

9шт.
