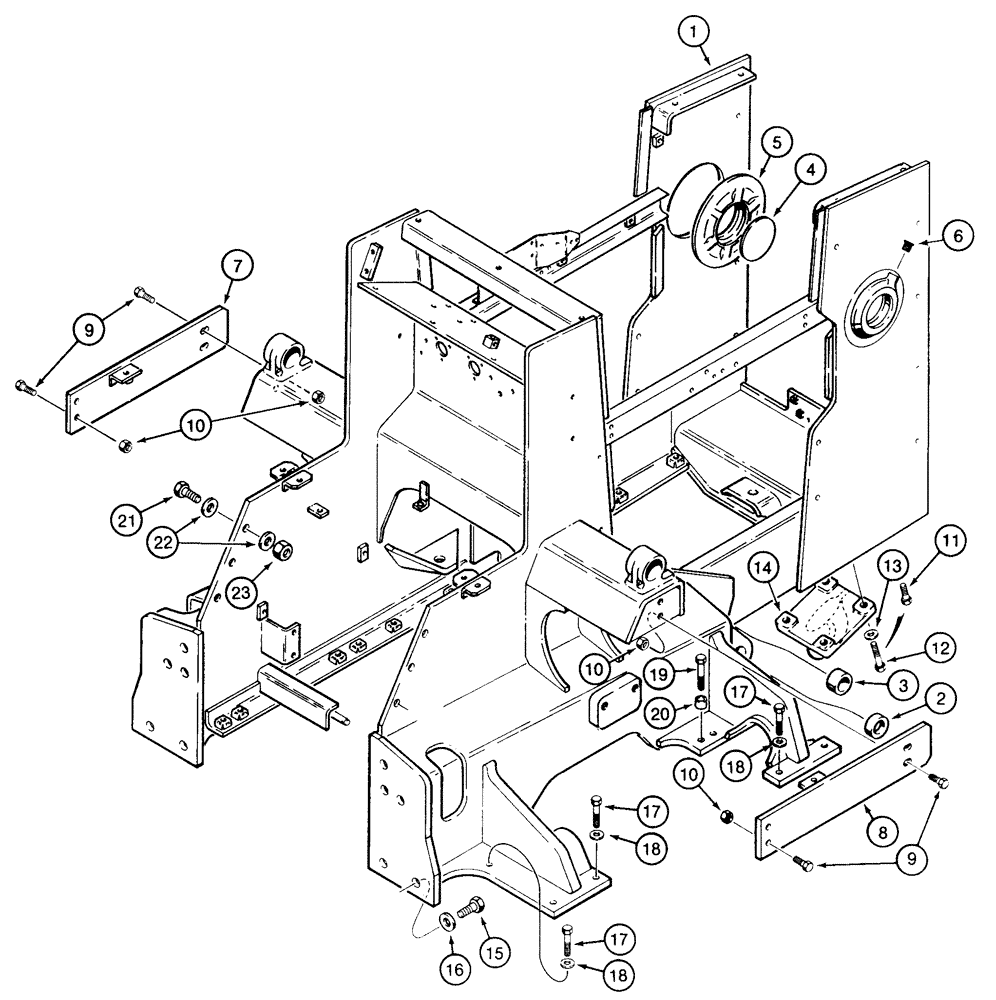

Запчасти Case 855E (9-024) - MAIN FRAME FOR DOZER MODELS (09) - CHASSIS/ATTACHMENTS

1

R58212

KIT

FRAME ASSEMBLY - main, 60 inch (1524 mm) gauge standard models

1шт.

1

R58213

KIT

FRAME ASSEMBLY - main, 70 inch (1778 mm) gauge LGP models, not shown

1шт.

2

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- C-frame mounting, outer, 1 inch (25 mm) wide

2шт.

3

D40091

BUSHING,51.02mm ID x 63.5mm OD x 47.6mm L

- C-frame mounting, inner, 1-7/8 inch (48 mm) wide

2шт.

4

R31950

COVER

PLATE - cover, inside trunnion

2шт.

5

R48191

RACE

- lift cylinder trunnion

2шт.

6

D28481

PLUG

- trunnion race, special

2шт.

7

R57977

PLATE

- left-hand

1шт.

8

R57978

PLATE

- right-hand

1шт.

9

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

8шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

11

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch, used without item 14 pull hook, if used

4шт.

12

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch, Used with item 14 pull hook, if used

4шт.

13

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened, used with item 14 pull hook, if used

4шт.

14

71671

PLATE ASSY.

HOOK - pull, front, if used

1шт.

15

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

BOLT, Locking, 1"-8 x 2 1/2", G8

10шт.

16

D30196

WASHER

- flat, special, hardened

10шт.

17

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

BOLT, Locking, 3/4-10 x 2", G8

12шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened

12шт.

19

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

BOLT, Locking, 3/4"-10 x 3", G8

8шт.

20

R30398

SPACER

- bolt

8шт.

21

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch

6шт.

22

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened

12шт.

23

425-1010

NUT,5/8"-11, G5

6шт.
