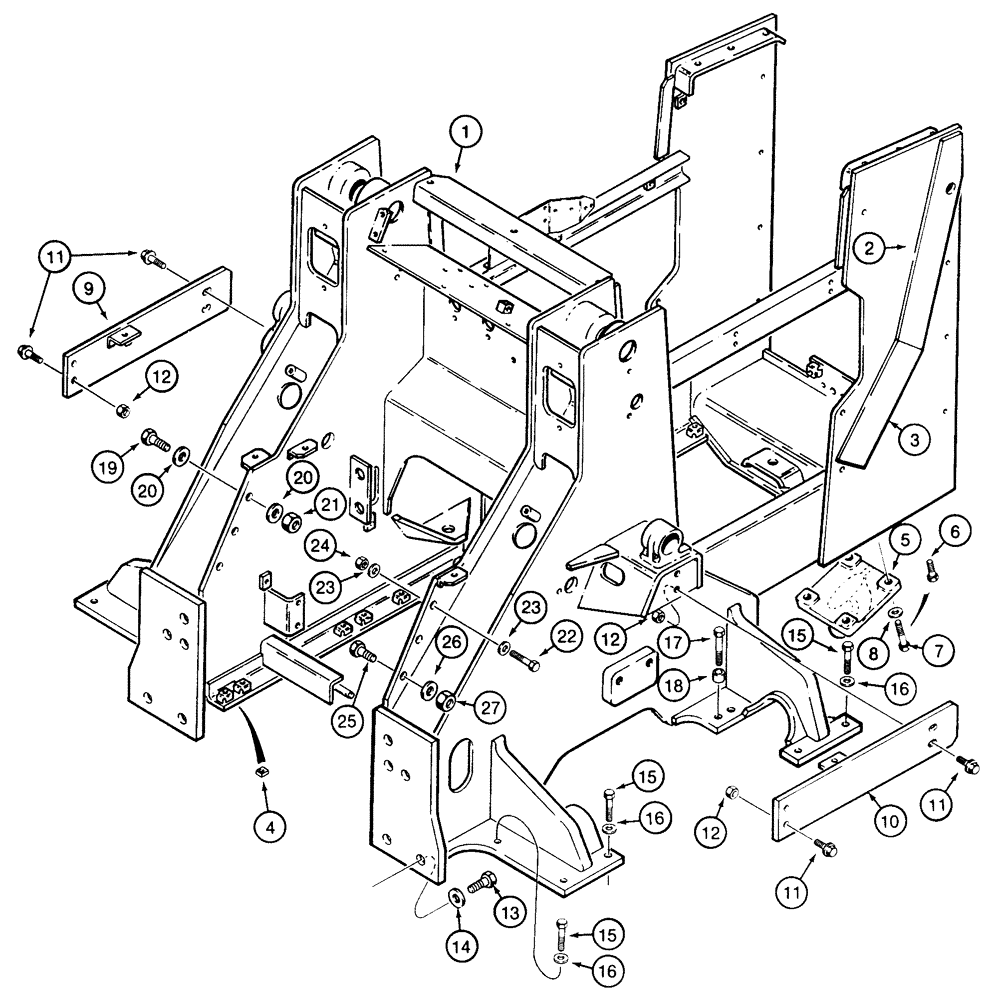

Запчасти Case 855E (9-022) - MAIN FRAME FOR LOADER MODELS (09) - CHASSIS/ATTACHMENTS

1

R58214

KIT

FRAME ASSEMBLY - main, loader models

1шт.

2

R50455

LARGE PLATE

PLATE - wear, upper

2шт.

3

R50456

LARGE PLATE

PLATE - wear, lower

2шт.

4

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

- heavy square, 5/8 inch NC, weld-on, for mounting undercarriage guards

24шт.

5

71671

PLATE ASSY.

HOOK - pull, front, if used

1шт.

6

413-1220

BOLT,Hex, 3/4" - 10 x 1-1/4", Gr 5

- hex, 3/4 NC x 1-1/4 inch, used without item 5 pull hook, if used

4шт.

7

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

- hex, 3/4 NC x 2-1/4 inch, Used with item 5 pull hook, if used

4шт.

8

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened, used with item 5 pull hook, if used

4шт.

9

R57977

PLATE

- left-hand

1шт.

10

R57978

PLATE

- right-hand

1шт.

11

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

8шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

13

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

BOLT, Locking, 1"-8 x 2 1/2", G8

10шт.

14

D30196

WASHER

- flat, special, 1 inch, hardened

10шт.

15

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

BOLT, Locking, 3/4-10 x 2", G8

10шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch, hardened

12шт.

17

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

BOLT, Locking, 3/4"-10 x 3", G8

8шт.

18

R30398

SPACER

- bolt

8шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, Models without a backhoe

6шт.

20

96-21066

WASHER,21/32" x 1 5/16" x .150", HDN

- flat, 21/32 x 1-5/16 x 5/32 inch, hardened, models without a backhoe

12шт.

21

425-1010

NUT,5/8"-11, G5

Models without backhoe 5/8"-11, G5

6шт.

22

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, Upper hole, Models with backhoe

2шт.

23

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER - flat, special, 5/8 inch, hardened, upper hole, models with backhoe

4шт.

24

425-1010

NUT,5/8"-11, G5

Upper hole, models with backhoe 5/8"-11, G5

2шт.

25

D30593

BOLT

- special, lower two holes., models with backhoe

4шт.

26

A57033

WASHER

- hardened, special, lower two holes, models with backhoe

4шт.

27

425-1014

NUT,7/8"-9, G5

NUT, , lower two holes, models with backhoe 7/8"-9, G5

4шт.
