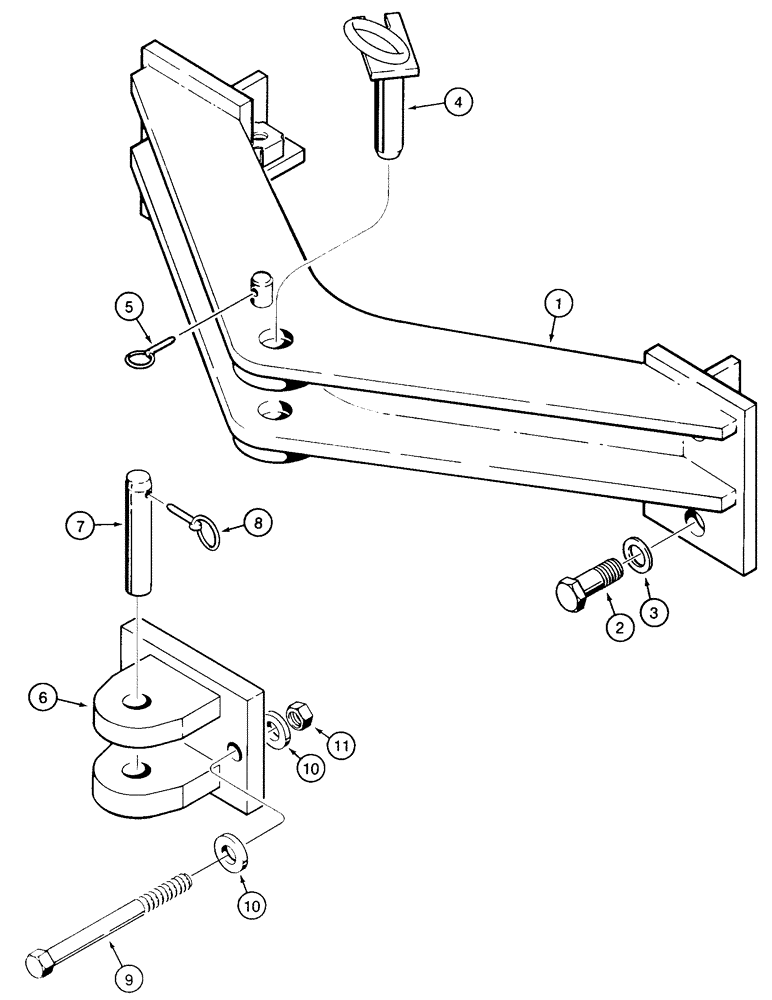

Запчасти Case 855E (9-018) - DRAWBARS, DOZER OR DRAWBAR MODELS - NO REAR EQUIPMENT (09) - CHASSIS/ATTACHMENTS

1

R43751

DRAWBAR

- dozer or drawbar models with no rear equipment

1шт.

2

113-941

LOCK BOLT,Locking, 1"-8 x 2 1/2", G8

BOLT, Locking, 1"-8 x 2 1/2", G8

4шт.

3

D30196

WASHER

- flat, special, 1 inch, hardened

4шт.

4

R33340

PIN

- drawbar

1шт.

5

A30338

PIN

- self-locking

1шт.

6

R39904

DRAWBAR

- loader models with no rear equipment and counterweight

1шт.

7

D35202

PIN

- drawbar, loader models with no rear equipment

1шт.

8

D33805

PIN

- self-locking, loader models with no rear equipment

1шт.

9

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

- hex, 3/4 NC x 6 inch, loader models with no rear equipment

2шт.

10

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 3/4 inch, hardened, loader models with no rear equipment

4шт.

11

425-1012

NUT,3/4"-10, G5

Loader models with no rear equipment 3/4"-10, G5

2шт.
