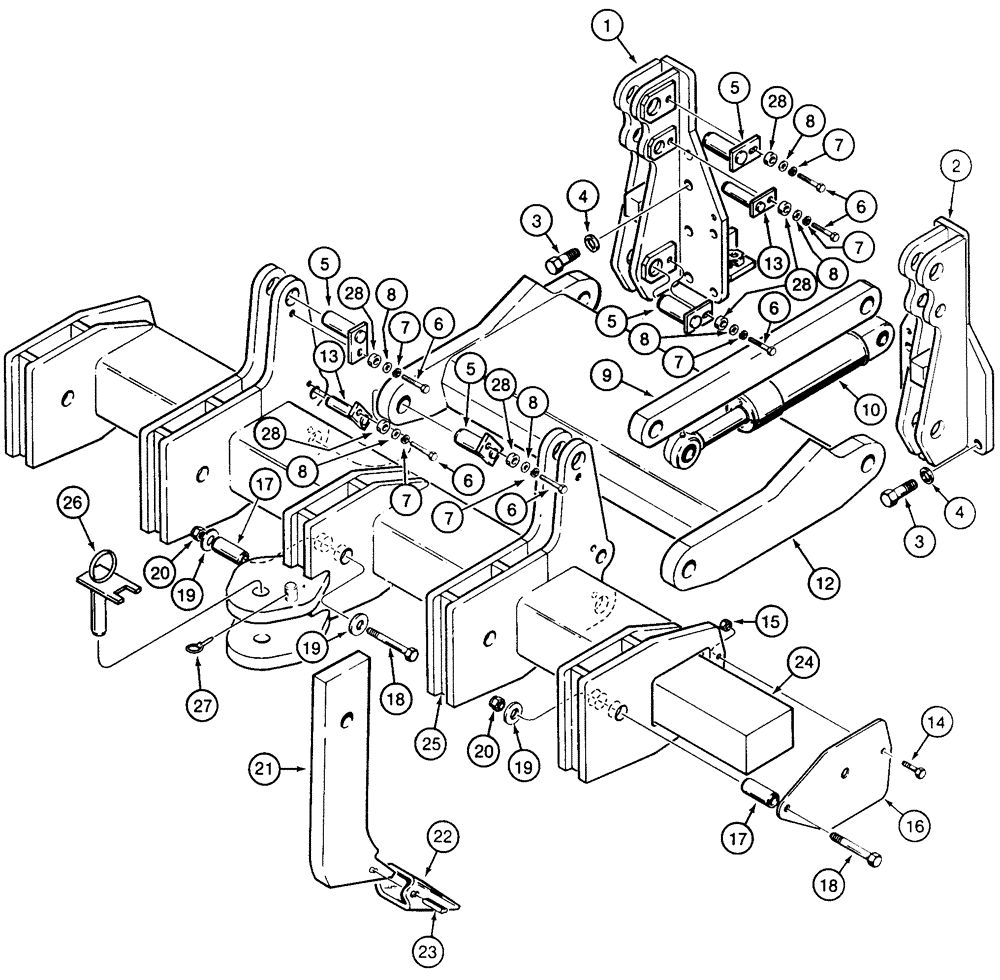

Запчасти Case 855E (9-016) - RIPPER, DRAWBARS (09) - CHASSIS/ATTACHMENTS

1

R38874

SUPPORT

BRACKET - mounting, left-hand

1шт.

2

R38875

SUPPORT

BRACKET - mounting, right-hand

1шт.

3

326-1640

BOLT,Hex, 1" - 8 x 2-1/2", Gr 8

10шт.

4

D30196

WASHER

- flat, special, 1 inch, hardened

10шт.

5

R43990

PIN

- mounting, upper arms and lower frame

8шт.

6

106-91020

LOCK BOLT,Locking, 5/8"-11 x 1 1/4", G5, Full Thd

BOLT, Locking, 5/8"-11 x 1 1/4", G5, Full Thd

12шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

8

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

12шт.

9

R33779

ARM

- upper

2шт.

10

G101214

CYLINDER ASSY.

CYLINDER ASSEMBLY - ripper, right-hand, parts list figure 8-58

1шт.

11

G101215

CYLINDER ASSY.

CYLINDER ASSEMBLY - ripper, left-hand, parts list figure 8-58, not shown

1шт.

12

197899A1

ARM

FRAME - lower

1шт.

13

R43991

LARGE PIN

PIN - mounting, ripper cylinder

4шт.

14

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

15

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

16

R35460

LARGE PLATE

COVER - counterweight, tool bar

2шт.

17

R33773

PIN

- shank mounting

3шт.

18

413-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

3шт.

19

95-31069

WASHER,0.69" ID x 2.38" OD x 0.17" Thk

- flat, 11/16 x 2-3/8 x 5/32 inch

4шт.

20

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

3шт.

21

122236A1

SHANK, BUCKET TOOTH

SHANK - tooth

3шт.

22

L55608

POINT

- tooth

3шт.

23

D39448

PIN

- flex, tooth

3шт.

24

R35459

WEIGHT

COUNTERWEIGHT - 475 lb (215 kg), used on loader models

1шт.

25

R51734

BAR ASSY.

BAR - tool, includes drawbar

1шт.

26

R33340

PIN

- drawbar

1шт.

27

A30338

PIN

- lock

1шт.

28

R43759

WASHER

SPACER - pin mounting

12шт.
