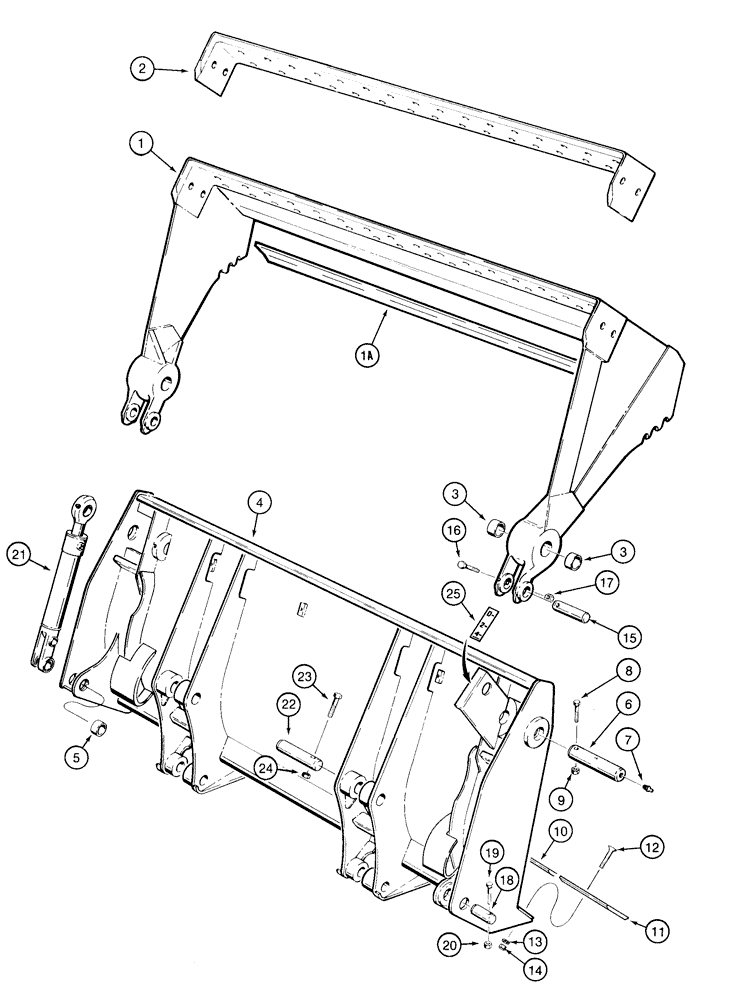

Запчасти Case 855E (9-008) - LOADER CLAM BUCKET (09) - CHASSIS/ATTACHMENTS

R53287

BUCKET

ASSEMBLY - clam, machinery item, order from Machinery Price List

1шт.

1

R53453

SHELL

CLAM ASSEMBLY - clam bucket

1шт.

1a

R53462

PLATE

1шт.

2

R51167

EDGE, CUTTING

EDGE - cutting, clam bucket

1шт.

3

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- 1 inch (25 mm) wide, clam pivot

4шт.

4

R53445

BUCKET

BLADE - clam bucket

1шт.

5

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- blade, 1-1/2 x 1-7/8 x 1-1/4 inch, cylinder pivot

2шт.

6

D51874

PIN,50.8mm OD x 217.17mm L

- pivot, Serial Range: clam-blade

2шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

8

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

2шт.

9

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

10

R53443

EDGE

- cutting, center

1шт.

11

R53319

EDGE, CUTTING

EDGE - cutting, blade, ends

2шт.

12

20-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

BOLT, plow, 3/4 NC x 2-1/4 inch, grade 8

14шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

14шт.

14

425-1012

NUT,3/4"-10, G5

14шт.

15

D50435

PIN,38.1mm OD x 124.46mm L

- clam cylinder retaining, cylinder to clam, upper

2шт.

16

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

- hex, 3/8 NC x 4 inch

2шт.

17

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

18

D51244

AXLE PIN,38.1mm OD x 99.06mm L

PIN - clam cylinder retaining, cylinder to blade, lower

2шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

20

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

21

G101211

CYLINDER BLOCK

CYLINDER ASSEMBLY - clam bucket, parts list figure 8-50

2шт.

22

R48920

PIN,50.67mm OD x 182.88mm L

- mounting, clam bucket to lift frame and bucket links

4шт.

23

26-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 8

- hex, 5/8 NC x 4-3/4 inch grade 8

4шт.

24

231-41110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.

25

321-1706

DECAL

- clam bucket position indicator

1шт.
