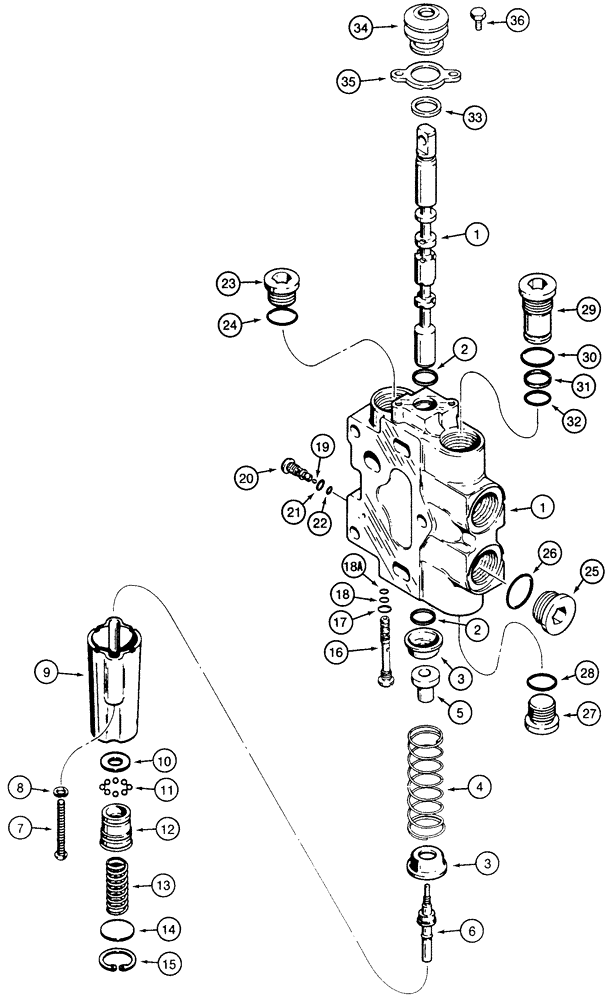

Запчасти Case 855E (8-096) - BACKHOE SECTION (08) - HYDRAULICS

S300678

VALVE

SECTION ASSEMBLY - backhoe, identification No. 261

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - includes spool, section

1шт.

2

238-5118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

Spool -118, 70 Duro, .862" ID x .103" Thk

2шт.

3

CASR30191

RETAINER

SEAT - centering spring

2шт.

4

R30192

SPRING

- centering

1шт.

5

D78473

SPACER

- detent stud

1шт.

6

S300679

VALVE, ENG EXHAUST,

SHAFT - detent

1шт.

7

61-32532

HEX SOC SCREW,1/4"-20 x 2"

BOLT - hex socket, 1/4 NC x 2 inch

2шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

N14194

HOUSING

- detent

1шт.

10

A48931

WASHER

- guide

1шт.

11

211-1007

BALL,7/32" Dia

- 7/32", Gr 24, Chrome alloy steel

8шт.

12

N14196

PISTON

- detent

1шт.

13

A48934

SPRING

- detent

1шт.

14

A48933

RING

RETAINER - piston

1шт.

15

100-21118

SNAP RING,1.188", Int, #118

Ring, Snap, 1.188", Int, #118

1шт.

D87080

VALVE

SHUTTLE ASSEMBLY - primary

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - shuttle

1шт.

17

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

18a

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

19

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24, secondary shuttle

1шт.

A47210

PLUG

SHUTTLE ASSEMBLY - secondary

1шт.

20

A47204

PLUG

BODY - shuttle

1шт.

R30185

SEAL KIT

KIT - seal

1шт.

21

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

22

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

23

9841223

PLUG,1-1/16" - 12 ORB

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

25

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

1шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

16-1, 90 Duro, 1.171" ID x .118" Thk

1шт.

27

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss

1шт.

28

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

29

R30167

PLUG

- section body

1шт.

R30174

GASKET KIT

KIT - seal

1шт.

30

NSS

NOT SOLD SEPARAT

O-RING - large

1шт.

31

NSS

NOT SOLD SEPARAT

RING - backup, small O-ring

1шт.

32

NSS

NOT SOLD SEPARAT

O-RING - small

1шт.

A48938

KIT

- filter, body and spool

1шт.

33

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER - spool

1шт.

34

A47188

COVER

- dust

1шт.

35

A47196

RETAINER

- filter

1шт.

36

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

- retainer

2шт.
