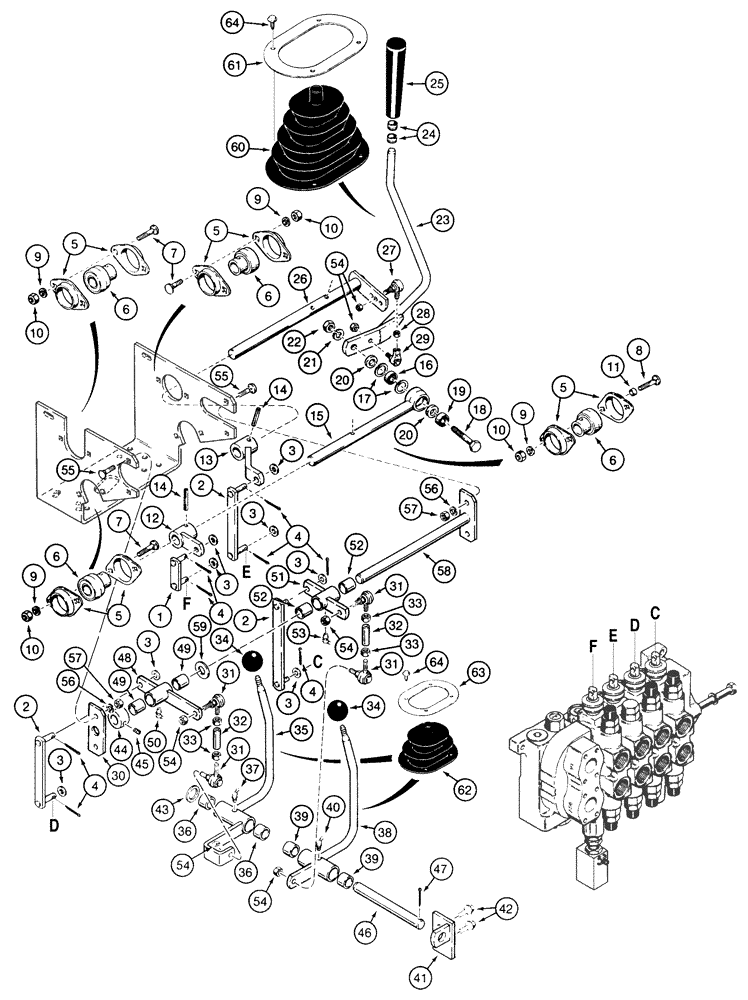

Запчасти Case 855E (8-068) - EQUIPMENT CONTROL LEVERS AND LINKAGE, THREE CONTROL LEVERS - FOUR SPOOL VALVE LOADER MODEL (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see figure 8-84 or 8-86, for mounting see figure 8-60

1шт.

1

R56425

POWER ARM

LINK - short, at control valve spool

1шт.

2

R56423

POWER ARM

LINK - long, at control valve spool

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

8шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

5

469924R1

FLANGE

- ball bearing

8шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - ball, shaft

4шт.

7

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

6шт.

8

411-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

11

R56431

SPACER

- ball bearing

2шт.

12

R27689

LEVER

- spool, Serial Range: link-shaft

1шт.

13

R56429

LEVER

- angled, spool to upper shaft

1шт.

14

138-2053

PIN,1/4" x 1 1/4", Coiled

2шт.

R56413

SHAFT ASSY.

SHAFT ASSEMBLY - lower

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - lower

1шт.

16

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

BEARING - ball, shaft

1шт.

17

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Ball brg 1.125", Int, #112

2шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

19

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

BEARING - ball, shaft

1шт.

20

R56436

SPACER

- ball bearing

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

R57726

LEVER ASSY.

LEVER - dual control, lift and tilt

1шт.

24

R38655

RING

BUSHING - knob, dual control lever

2шт.

25

R38654

KNOB

- dual control lever

1шт.

26

R56665

SHAFT ASSY.

SHAFT - upper

1шт.

27

R47939

ROD

JOINT - ball, male, 5/16 inch NF

1шт.

28

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

29

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

1шт.

30

R56435

LARGE PLATE

PLATE - mounting, control shaft

1шт.

31

R47939

ROD

JOINT - ball, male, 5/16 inch NF

4шт.

32

R27647

LINK

- ball joints

2шт.

33

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

4шт.

34

70213

KNOB

- control lever

2шт.

R52148

LEVER ASSY.

LEVER ASSEMBLY - control, auxiliary, inner

1шт.

35

NSS

NOT SOLD SEPARAT

LEVER - control, auxiliary, inner

1шт.

36

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

37

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

R52150

LEVER ASSY.

LEVER ASSEMBLY - control, auxiliary, outer

1шт.

38

NSS

NOT SOLD SEPARAT

LEVER - control, auxiliary, outer

1шт.

39

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

40

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

41

R36889

BRACKET

- mounting, control lever, special finish

1шт.

42

160-101

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon coated

2шт.

43

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD) 1/32" Thk

1шт.

44

T10676

COLLAR

- locking, lever retaining

1шт.

45

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, cup point

1шт.

46

R47819

SHAFT

- auxiliary control lever

1шт.

47

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

R52862

LEVER ASSY.

LEVER ASSEMBLY - shaft, auxiliary, rear

1шт.

48

NSS

NOT SOLD SEPARAT

LEVER - shaft, auxiliary, rear

1шт.

49

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

50

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

R52860

LEVER ASSY.

LEVER ASSEMBLY - shaft, auxiliary, front

1шт.

51

NSS

NOT SOLD SEPARAT

LEVER - auxiliary, front

1шт.

52

R52129

BRONZE BUSHING

BUSHING - bronze, 3/4 inch long

2шт.

53

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

54

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

6шт.

55

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

4шт.

56

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

57

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

58

R56434

SHAFT

- control, auxiliary

1шт.

59

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 25/32 x 1-3/8 x 1/8 inch, hardened

1шт.

60

R47896

BOOT

- dual control lever, if used

1шт.

61

R47893

ANCHOR

RETAINER - dual control lever boot, if used

1шт.

62

R47897

BELLOWS

BOOT - auxiliary control lever, if used

2шт.

63

R47894

ANCHOR

RETAINER - boot, auxiliary control lever, if used

2шт.

64

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

12шт.
