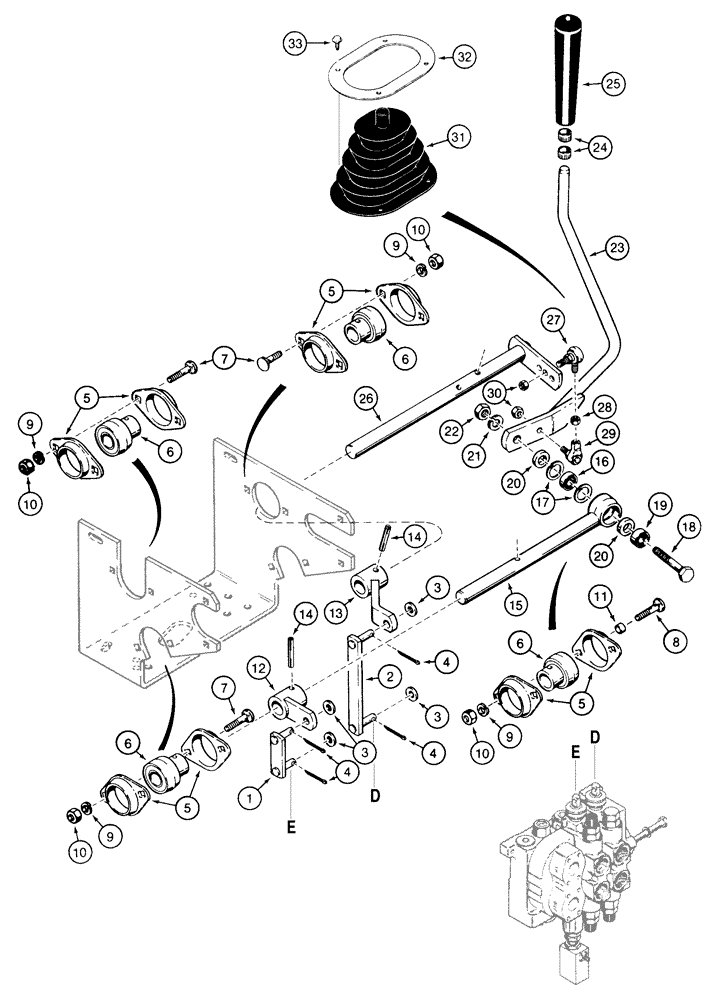

Запчасти Case 855E (8-062) - EQUIPMENT CONTROL LEVERS AND LINKAGE, ONE CONTROL LEVER - TWO SPOOL VALVE LOADER MODELS (08) - HYDRAULICS

R56560

VALVE

ASSEMBLY - equipment control, parts list figure 8-78, for mounting see figure 8-60

1шт.

1

R56425

POWER ARM

LINK - short, at control valve spool

1шт.

2

R56423

POWER ARM

LINK - long, at control valve spool

1шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

4

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

5

469924R1

FLANGE

- ball bearing

8шт.

6

R36380

BALL BEARING,19.05 mm ID x 47 mm OD x 15, 30.96 mm

BEARING - ball, shaft

4шт.

7

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

6шт.

8

411-524

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/2", Gr 2

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

8шт.

11

R56431

SPACER

- ball bearing

2шт.

12

R27689

LEVER

- spool link to lower shaft

1шт.

13

R56429

LEVER

- angled, spool link to upper shaft

1шт.

14

138-2053

PIN,1/4" x 1 1/4", Coiled

2шт.

R56413

SHAFT ASSY.

SHAFT ASSEMBLY - lower

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - lower

1шт.

16

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

BEARING - ball, shaft

1шт.

17

100-21112

SNAP RING,1.125", Int, #112

Ring, Snap, , Ball brg 1.125", Int, #112

2шт.

18

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

1шт.

19

R56407

BEARING, BALL,12.7 mm ID x 28.575 mm OD x 7.938 mm

BEARING - ball, shaft

1шт.

20

R56436

SPACER

- ball bearing

2шт.

21

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

R57726

LEVER ASSY.

LEVER - dual control, lift and tilt

1шт.

24

R38655

RING

BUSHING - knob, control lever

2шт.

25

R38654

KNOB

- control lever

1шт.

26

R56665

SHAFT ASSY.

SHAFT - upper

1шт.

27

R47939

ROD

JOINT - ball, male, 5/16 inch NF

1шт.

28

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

1шт.

29

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

1шт.

30

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

2шт.

31

R47896

BOOT

- control lever, if used

1шт.

32

R47893

ANCHOR

RETAINER - control lever boot, if used

1шт.

33

294-1658

SELF-TAP SCREW,Cross Truss Hd, #10 x 1/2"

SCREW - self-tapping, truss head Phillips, No. 10-16 x 1/2 "

4шт.
