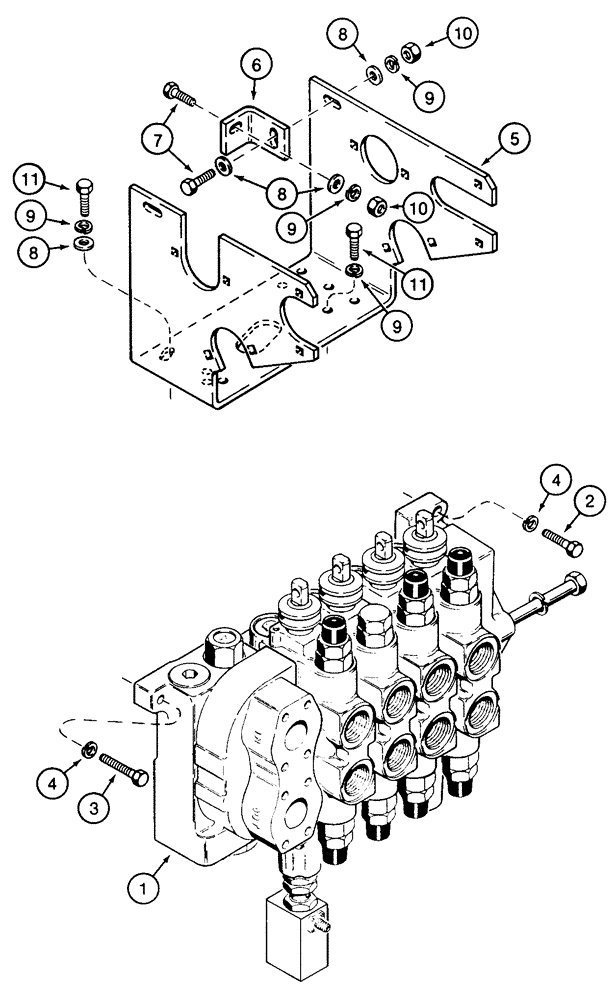

Запчасти Case 855E (8-060) - EQUIPMENT CONTROL VALVE AND MOUNTING, LOADER MODELS (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see pages 8-79 - 8-87

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

3

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

1шт.

4

492-11038

LOCK WASHER,3/8"

3шт.

5

R56412

SUPPORT

BRACKET - mounting, linkage

1шт.

6

R41335

SUPPORT

BRACKET - angle, linkage bracket support

1шт.

7

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.
