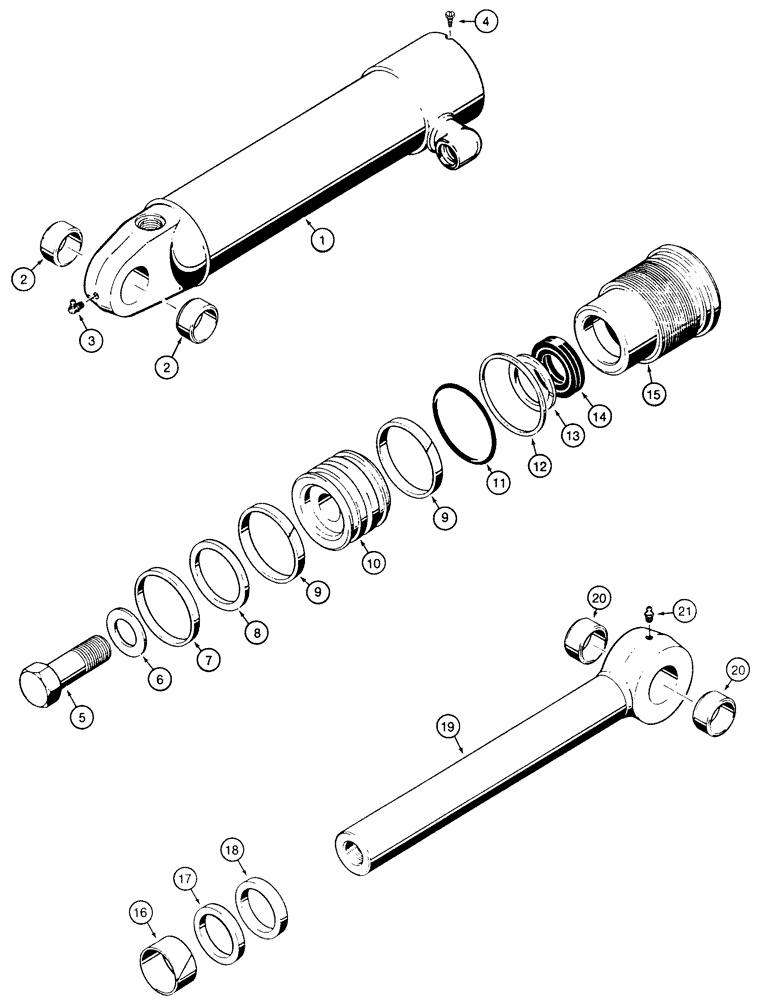

Запчасти Case 855E (8-058) - G101214 AND G101215 RIPPER CYLINDERS (08) - HYDRAULICS

G101214

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/4 inch ID x 8-18/32 inch stroke, ripper, right-hand

1шт.

G101215

CYLINDER ASSY.

CYLINDER ASSEMBLY - 3-1/4 inch ID x 8-18/32 inch stroke, ripper, left-hand

1шт.

1

G100608

TUBE,16.46" L

- G101214 cylinder, right-hand

1шт.

1

G100609

TUBE,16.46" L

- G101215 cylinder, left-hand

1шт.

2

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- both tubes

2шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

4

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

5

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

1шт.

6

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- flat, special, hardened

1шт.

7

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

8

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

9

S109445

RING,82.55mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit P/N 1543265C1

1шт.

10

G100642

PISTON

- cylinder

1шт.

11

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

Gland -236, 70 Duro, 3.234" ID x .139" Thk

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

12

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

13

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

14

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

15

1542972C1

CYLINDER END CAP

GLAND - cylinder

1шт.

16

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

17

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

18

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod

1шт.

Part of Seal Kit P/N 1543265C1

1шт.

19

G100617

ROD

- piston, 1-3/4 inch (44 mm) diameter

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

1543265C1

SEAL KIT

KIT - seal, Includes: Ref. 7-9, 11-14, 16 and 18

1шт.
