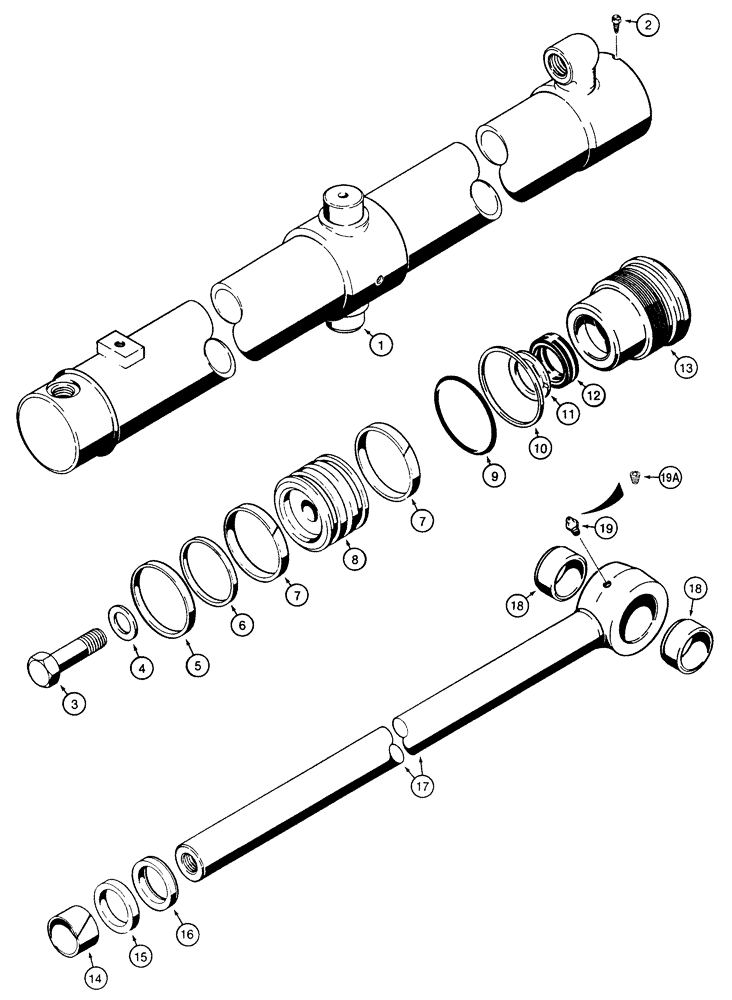

Запчасти Case 855E (8-052) - G101217 DOZER LIFT CYLINDER (08) - HYDRAULICS

G101217

CYLINDER

ASSEMBLY - 3 inch ID x 29-19/32 inch stroke, dozer lift

2шт.

1

G109136

TUBE,2.996" ID x 36.97" L

- cylinder

1шт.

2

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

3

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

- hex, 3/4 NF x 2-1/2 inch, grade 8

1шт.

4

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, hardened, special

1шт.

5

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

- Piston

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

6

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

RING - backup, piston seal

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

7

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

RING - wear, piston

2шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

8

G100442

PISTON

- cylinder

1шт.

9

238-5234

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

Gland -234, 70 Duro, 2.984" ID x .139" Thk

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

10

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

11

G109093

SEAL,37.72mm ID x 50.98mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

12

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

13

1542962C1

GLAND

- cylinder

1шт.

14

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

- Center, Gland

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

15

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

16

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod

1шт.

Part of Cylinder Repair Kit P/N 1543252C1

1шт.

17

G35470

ROD

- piston, 1-1/2 inch (38 mm) diameter

1шт.

18

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- piston rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

1шт.

19a

86539484

PIPE PLUG,Sq Hd, 1/8"-27, NTPF

ADAPTER - straight, 1/4 PT x 1/8 inch long

1шт.

1543252C1

SEAL KIT

KIT - seal, cylinder repair, Includes: Ref. 5-7, 9-12, 14 and 16

1шт.
