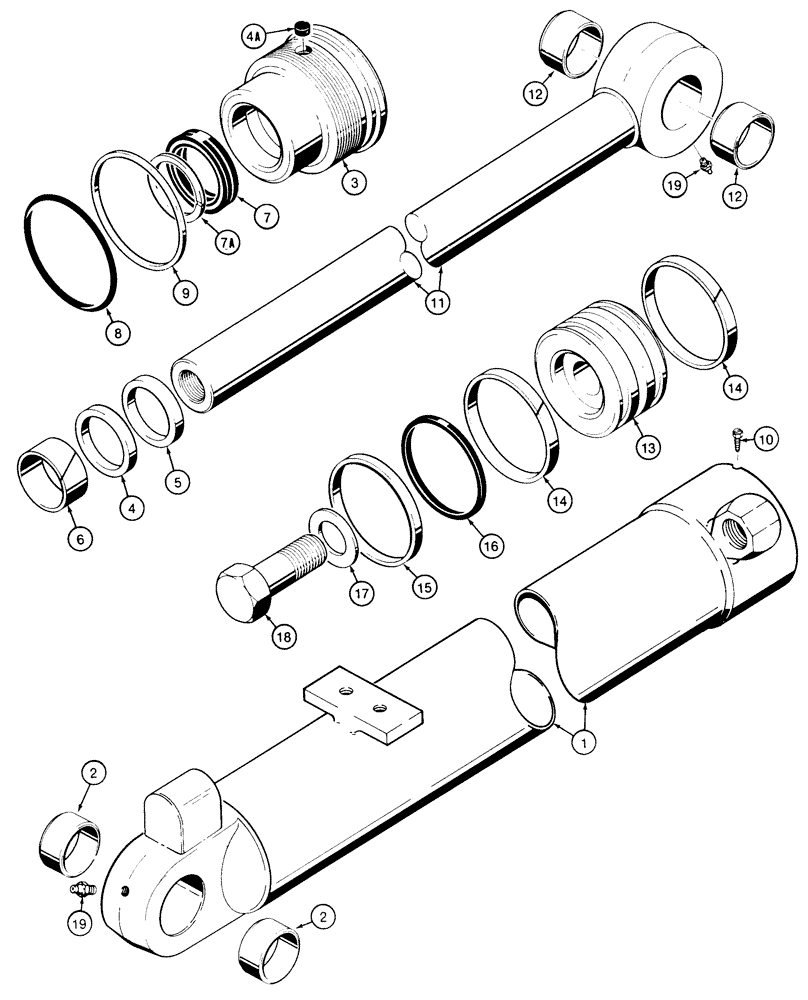

Запчасти Case 855E (8-046) - G101212 AND G101213 LOADER LIFT CYLINDERS (08) - HYDRAULICS

G101212

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch (102 mm) ID x 32-1/4 inch (819 mm) stroke, loader lift, right-hand

1шт.

G101213

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 inch (102 mm) ID x 32-1/4 inch (819 mm) stroke, loader lift, left-hand

1шт.

1

G100596

TUBE,40.70" L

- G101212 cylinder, right-hand

1шт.

1

G100597

TUBE,40.70" L

- G101213 cylinder, left-hand

1шт.

2

CASD37723

BUSHING

- tube

2шт.

3

1543019C1

CYLINDER END CAP

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining, gland

1шт.

4a

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

7

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, piston rod, wide, with O-ring

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

7

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

7a

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- piston rod, narrow

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

8

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

Gland -242, 70 Duro, 3.984" ID x .139" Thk

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

10

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

11

G35461

ROD

- piston, 2 inch (51 mm) diameter

1шт.

12

D37723

NUT,51.03mm ID x 60.33mm OD x 22.23mm L

- rod

2шт.

13

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

14

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N 1543273C1

1шт.

15

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

17

G32351

WASHER

- flat, hardened, special

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch long

2шт.

See Figure 8-14 items 36-39, for the parts needed to lubricate the closed end of the loader lift cylinders.

1шт.

1543273C1

SEAL KIT

KIT - seal, Includes: Refs. 5, 6, 7 (G107923), 7A, 8, 9 and 14-16

1шт.
