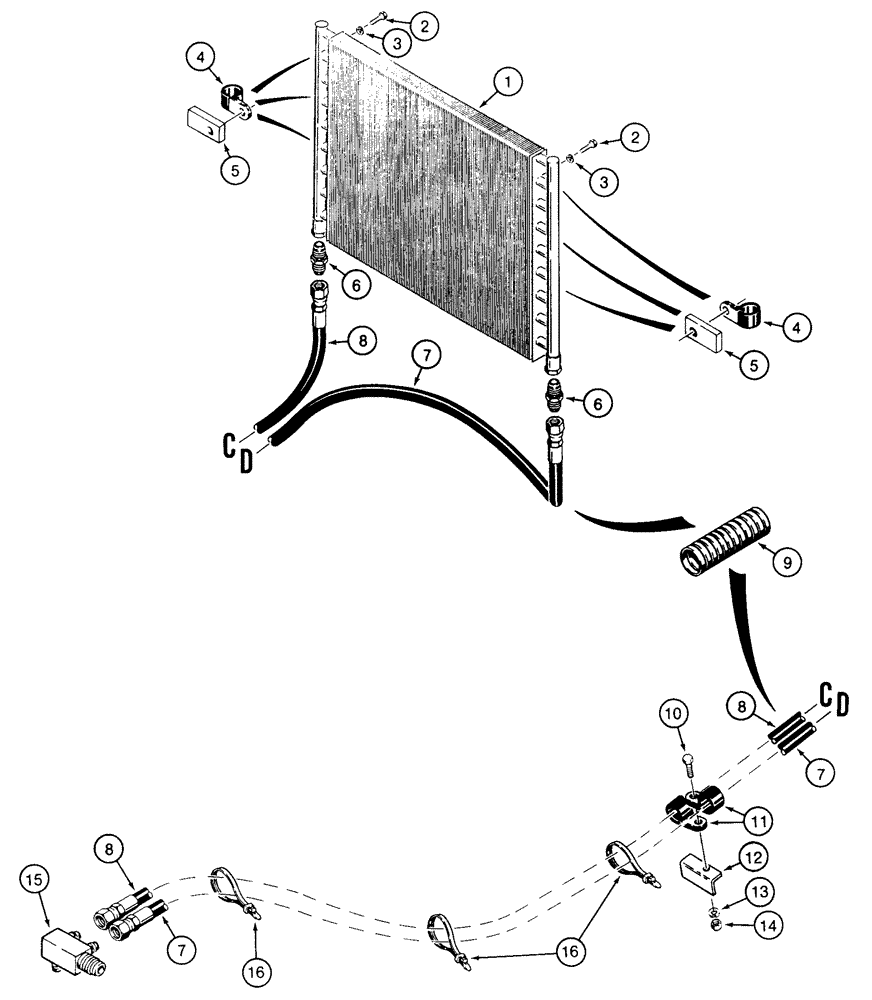

Запчасти Case 855E (8-042) - BACKHOE HYDRAULIC CIRCUIT, COOLING SYSTEM (08) - HYDRAULICS

1

H390104

COOLER

- oil, backhoe hydraulic circuit, Serial Range: bolts-radiator

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

6шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

4

L11553

MOUNTING CLIP

CLAMP - oil cooler retaining

6шт.

5

R54489

LARGE PLATE

BLOCK - tapped, Serial Range: weld-radiator

6шт.

6

218-1027

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

ADAPTER - straight, 1-1/16-12 flare x 1 inch PT

2шт.

7

R58739

HOSE

- 3350 mm long, oil cooler, right-hand side

1шт.

8

R58740

HOSE

- 2950 mm long, oil cooler, left-hand side

1шт.

9

R43084

HOSE PROTECTION

GUARD - hose, 12 inch (305 mm) long, cut from R43083 guard, see below

2шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

11

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

P-type 1 1/8", Insul, 3/8" Bolt

2шт.

12

R35297

BRACKET

- clamp mounting, tube support, front, weld to engine frame

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

425-106

NUT,3/8"-16, Cl 5

1шт.

15

R54565

MANIFOLD

- backhoe hydraulic circuit

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

3шт.

R43083

LOOM

GUARD - hose, 22 inch (559 mm) long

1шт.
