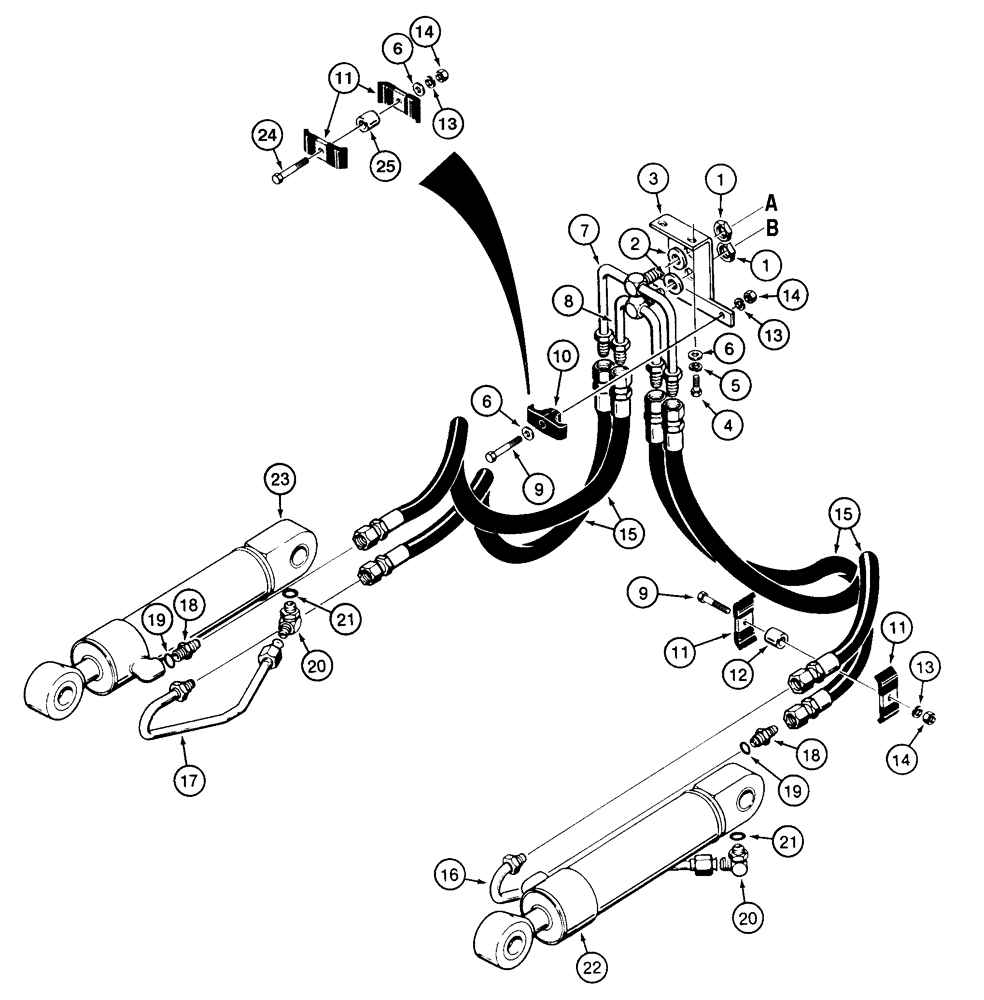

Запчасти Case 855E (8-036) - RIPPER HYDRAULIC CIRCUIT, REAR OF TRACTOR TO CYLINDERS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
218-1251
BHD LOCK NUT,Blkhd, 7/8"-14
NUT, LOCK, Blkhd, 7/8"-14
2шт.
2
495-11094
WASHER,7/8", SAE
- flat, 15/16 x 1-3/4 x 1/8 inch
2шт.
3
R35545
BRACKET
- tube mounting, attaches to rear of seat and tank frame
1шт.
4
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
2шт.
5
492-11038
LOCK WASHER,3/8"
2шт.
6
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
4шт.
7
R35549
TUBE,0.625" OD x 6.2, 3.75" L
- tee, upper port
1шт.
8
R46492
TUBE,0.625" OD x 4, 2.1" L
- tee, lower port, with restrictor fitting
1шт.
9
413-632
BOLT,Hex, 3/8" - 16 x 2", Gr 5
- hex, 3/8 NC x 2 inch
4шт.
10
L74730
PLATE
CLAMP - tube, spacer type
2шт.
11
D40236
CLAMP
- support, hoses at cylinders
4шт.
12
R46493
SPACER,0.406" ID x 0.625" OD x 0.850" Thk
- clamp, 7/8 inch (22 mm) long, at hoses
2шт.
13
492-11038
LOCK WASHER,3/8"
4шт.
14
425-106
NUT,3/8"-16, Cl 5
4шт.
15
F93300
HOSE
- 29 inch (737 mm), Serial Range: long,-cylinders
4шт.
16
R38348
TUBE,0.625" OD
- right-hand, to closed end of cylinders
1шт.
17
R38350
TUBE,0.625" OD
- left-hand, to closed end of cylinders
1шт.
18
218-5062
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
ADAPTER - straight, 7/8-14 inch flare x O-ring boss
2шт.
19
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
20
218-5107
90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB
- 90 degree, 7/8-14 inch flare x adj O-ring boss
2шт.
21
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
22
G101214
CYLINDER ASSY.
CYLINDER ASSEMBLY - ripper, right-hand, parts list figure 8-58
1шт.
23
G101215
CYLINDER ASSY.
CYLINDER ASSEMBLY - ripper, left-hand, parts list figur'e 8-58
1шт.
24
413-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
- hex, 3/8 NC x 1-3/4 inch
2шт.
25
D76209
SPACER
- split
2шт.
Выбрано товаров: 25
