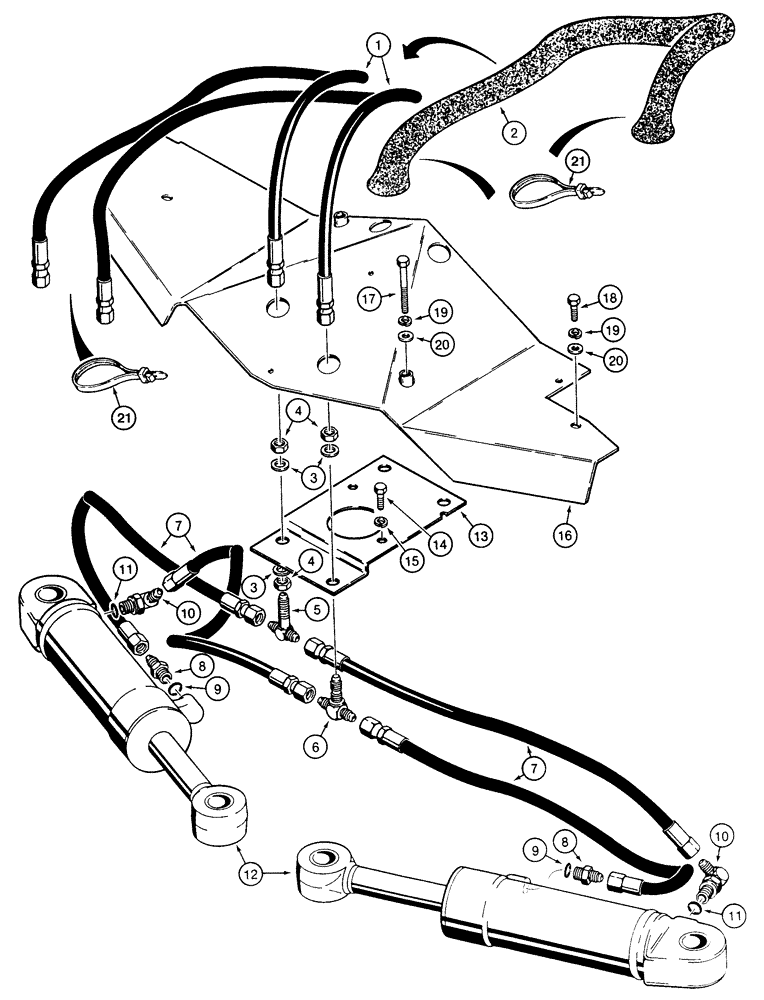

Запчасти Case 855E (8-032) - DOZER ANGLE HYDRAULIC CIRCUIT, GRILLE TO CYLINDERS (08) - HYDRAULICS

1

R54751

HOSE

- 54 inch long, grille to leveling beam

2шт.

2

S120577

COVER

WRAPPING - spiral, hose protection, holds angle and tilt hoses together, cut from S120537 bulk

1шт.

3

D35268

SHIM,1/32" Thk

(25/32" ID x 1-1/4" OD), Special finish 1/32" Thk

1шт.

4

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

3шт.

5

R28969

FITTING

TEE - bulkhead, special, left-hand

1шт.

6

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- 3/4-16 inch bulkhead flare branch x flare x flare, right-hand

1шт.

7

W11468

HOSE

- 29 inch (737 mm), Serial Range: long,-cylinders

4шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss

2шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

G103467

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer angle, parts list figure 8-56, no longer available, order 1542644C1 below

2шт.

12

1542644C1

CYLINDER ASSY.

CYLINDER ASSEMBLY - dozer angle, parts list figure 8-57A

2шт.

13

R46374

SUPPORT

BRACKET - hose retaining, hydraulic fittings, at leveling beam

1шт.

14

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

16

R46377

GUARD

- cylinders and hydraulic lines

1шт.

17

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

18

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

20

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

S120537

COVER

WRAPPING - spiral .75 inch (19 mm) diameter

1шт.
