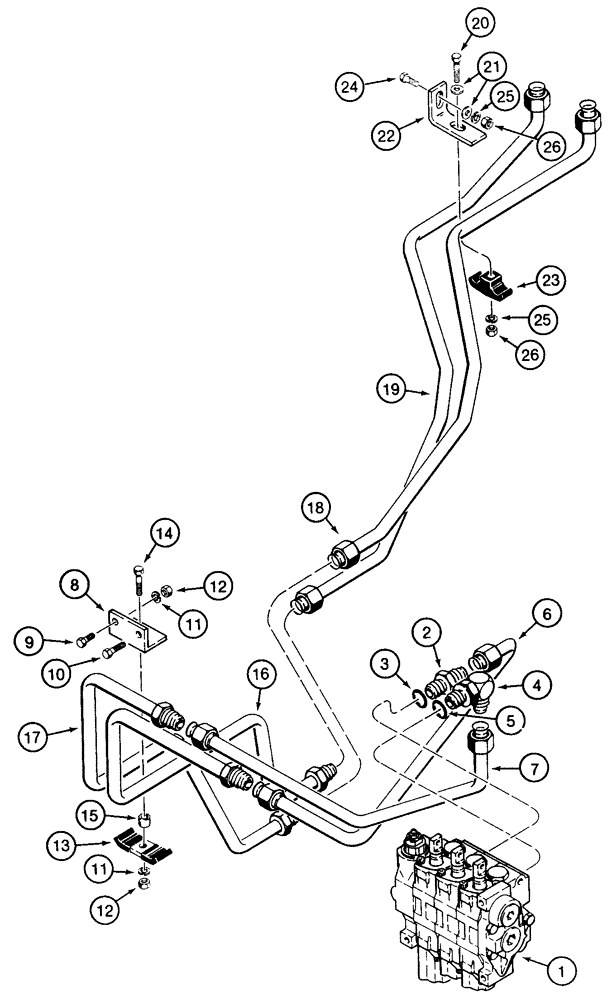

Запчасти Case 855E (8-022) - DOZER LIFT HYDRAULIC CIRCUIT, CONTROL VALVE TO CROSSOVER TUBES (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see figure 8-102 or 8-104

1шт.

2

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring boss

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

R58085

TUBE ASSY.,0.75" OD

TUBE - at control valve, upper lift port

1шт.

7

R58087

TUBE ASSY.,0.75" OD

TUBE - at control valve, lower lift port

1шт.

8

R34219

SUPPORT

BRACKET - clamp mounting

1шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, left-hand

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, RH

1шт.

11

492-11038

LOCK WASHER,3/8"

3шт.

12

425-106

NUT,3/8"-16, Cl 5

3шт.

13

D40236

CLAMP

- support, tubes

1шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

15

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- clamp

1шт.

16

R58630

TUBE ASSY.,0.75" OD

TUBE - inner, from upper port of valve

1шт.

17

R58632

TUBE ASSY.,0.75" OD

TUBE - outer, from lower port of valve

1шт.

18

R49702

TUBE,0.75" OD

- inner, to crossover tube

1шт.

19

R49700

TUBE,0.75" OD

- outer,to crossover tube

1шт.

20

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

22

R34970

SUPPORT

BRACKET - clamp mounting

1шт.

23

D124301

CLAMP,3/4" ID

- support, tubes

1шт.

24

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

25

492-11038

LOCK WASHER,3/8"

2шт.

26

425-106

NUT,3/8"-16, Cl 5

2шт.
