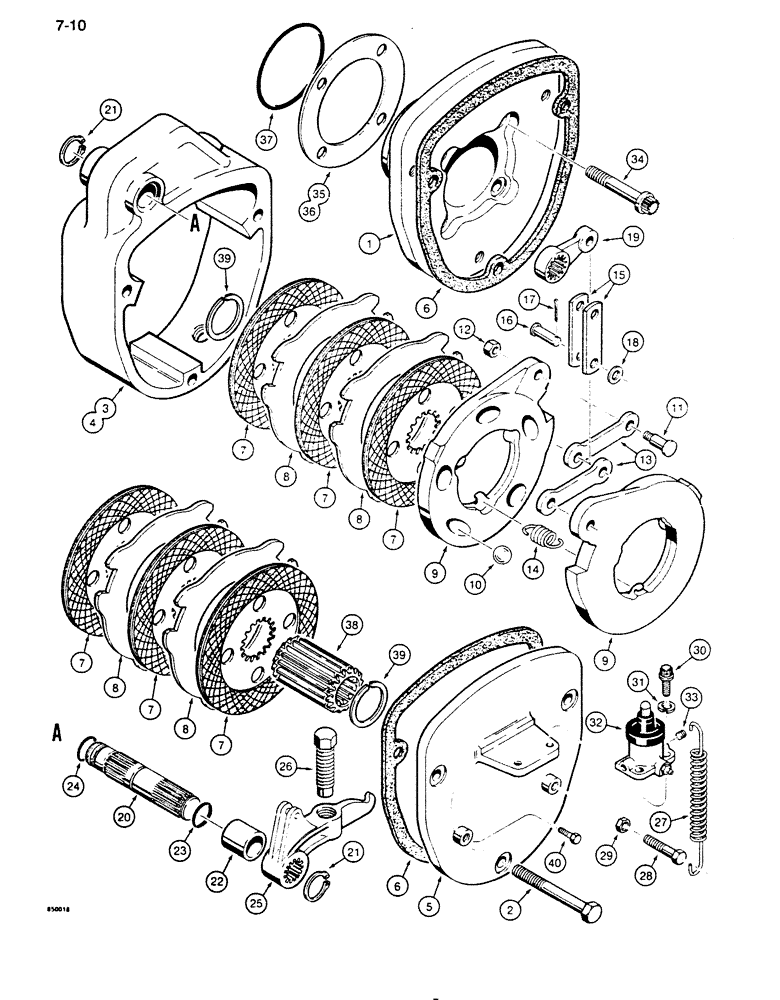

Запчасти Case 855D (7-10) - TRANSMISSION BRAKES, HOUSING, DISCS, AND ADJUSTERS (07) - BRAKES

1

G103640

PLATE ASSY.

SUPPORT - brake mounting

2шт.

2

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

6шт.

3

G103648

HOUSING

Brake, RH

1шт.

4

G103121

HOUSING

Brake, LH

1шт.

5

G103094

COVER ASSY

Brake

2шт.

6

G105443

GASKET

Brake housing

4шт.

7

G103117

PLATE ASSY.

FRICTION DISC - brake

12шт.

8

G103118

DISC

Steel, brake

8шт.

9

A50148

DISC

PLATE - mounting

4шт.

10

211-221

BALL,7/8" Dia

Steel (22 mm)

10шт.

11

A30898

STEP BOLT

SHOULDER, - special

4шт.

12

86637933

JAM NUT,5/16" - 24, Gr 5

4шт.

13

357113R2

LINK

Brake actuating

4шт.

14

A155624

SPRING

Brake actuator

6шт.

15

R15369

LINK

Brake pull

4шт.

16

G105353

PIN,11.07mm OD x 29.97mm L

Brake links

4шт.

17

132-380

COTTER PIN,3/32" x 3/4"

Stainless steel

4шт.

18

195-529

WASHER,7/16", SAE

4шт.

19

R15372

LEVER

Brake

2шт.

20

G107436

SHAFT

Brake actuating

2шт.

21

B18208

SNAP RING,#100, Ext

Brake actuating shaft

4шт.

22

G103093

SPACER

Shaft

2шт.

23

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Brake actuating shaft, center

2шт.

24

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Brake actuating shaft, inner, was D63414

2шт.

25

G109374

LEVER

Actuating

2шт.

26

A50395

ADJUSTMENT SCREW,Locking, 3/4" - 16 x 2.75"

Self-locking, 3/4" - 16 NF x 2-3/4", brake adjusting

2шт.

27

A50589

SPRING

Brake actuating lever

2шт.

28

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

2шт.

30

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

Ferry hd

4шт.

31

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

4шт.

32

G109412

MASTER CYLINDER

CYLINDER,MASTER ASSY - brake, parts list Figure 7-08

2шт.

33

222-1062

PLUG,7/16"-24, Inv Fl

Hex

2шт.

34

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

Ferry hd, brake mounting support to front housing cover

8шт.

35

G103641

SHIM,.003" Thk

Brake mounting support

1шт.

36

G103643

SHIM,.010" Thk

Brake mounting support

1шт.

37

G104038

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

Brake mounting support

2шт.

38

G104123

HUB CAP

Brake disc retaining

2шт.

39

A50046

RING

SNAP - disc retaining

4шт.

40

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.
