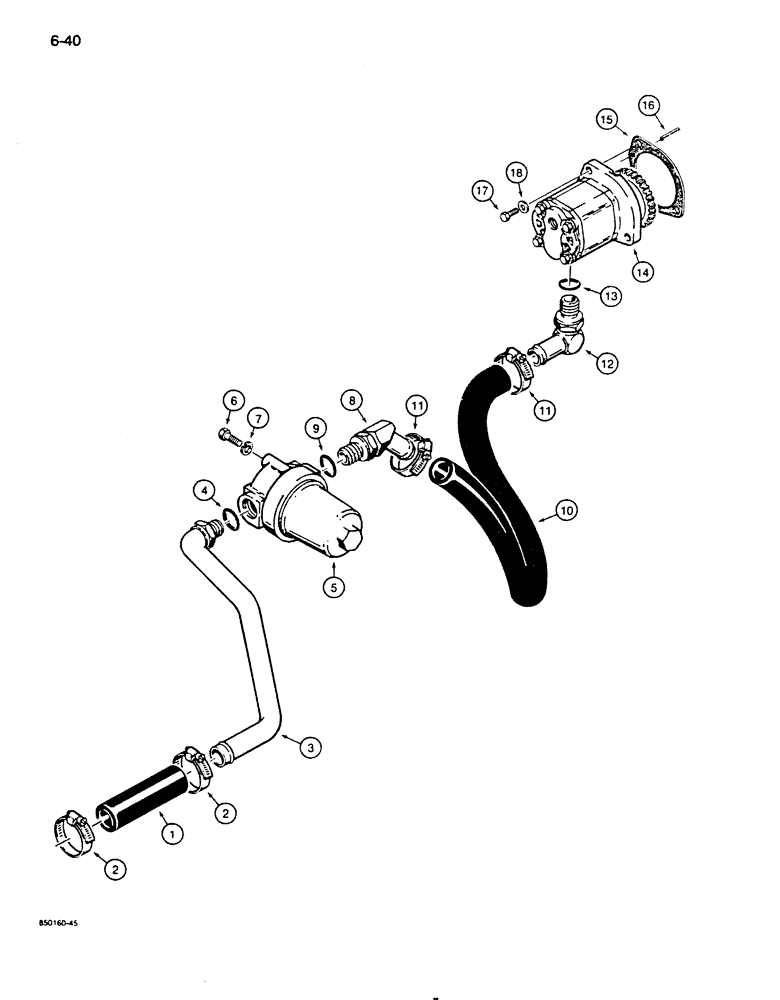

Запчасти Case 855D (6-40) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION TO CHARGING PUMP, SUCTION LINE AND PUMP MOUNTING (06) - POWER TRAIN

1

R46690

HOSE - 1-1/4" (32 mm) ID x 1-3/4" (44 mm) OD x 6" (152 mm) long, not serviced separately, cut from D33365 hose, see below

1шт.

2

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

Adjustable

2шт.

3

R46752

TUBE,1.25" OD

suction, transmission to filter, Includes: Ref. 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

tube

1шт.

5

R35926

FILTER

suction line, parts list Figure 6-46

1шт.

6

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

8

217-320

FITTING,45 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Incl. Ref 9

1шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

barb fitting

1шт.

10

R53888

HOSE - 1-1/4" (32 mm) ID x 1-3/4" (44 mm) OD x 9-1/2" (241 mm) long, to pump, not serviced separately, cut from D33365 hose, see below

1шт.

11

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

Adjustable

2шт.

12

217-358

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/16" - 12 Male ORB

Incl. Ref 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

barb fitting

1шт.

14

R30678

PUMP

transmission charging, parts list Figure 6-44

1шт.

15

D32000

GASKET

pump

1шт.

16

138-88

LOCK PIN,3/16" x 1/2", Slotted

Pump locating

1шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

18

D32117

COPPER WASHER

3/8"

2шт.

D33365

HOSE

1-1/4" (32 mm) ID x 1-3/4" (44 mm) OD x 18-1/2" (470 mm) long

1шт.
