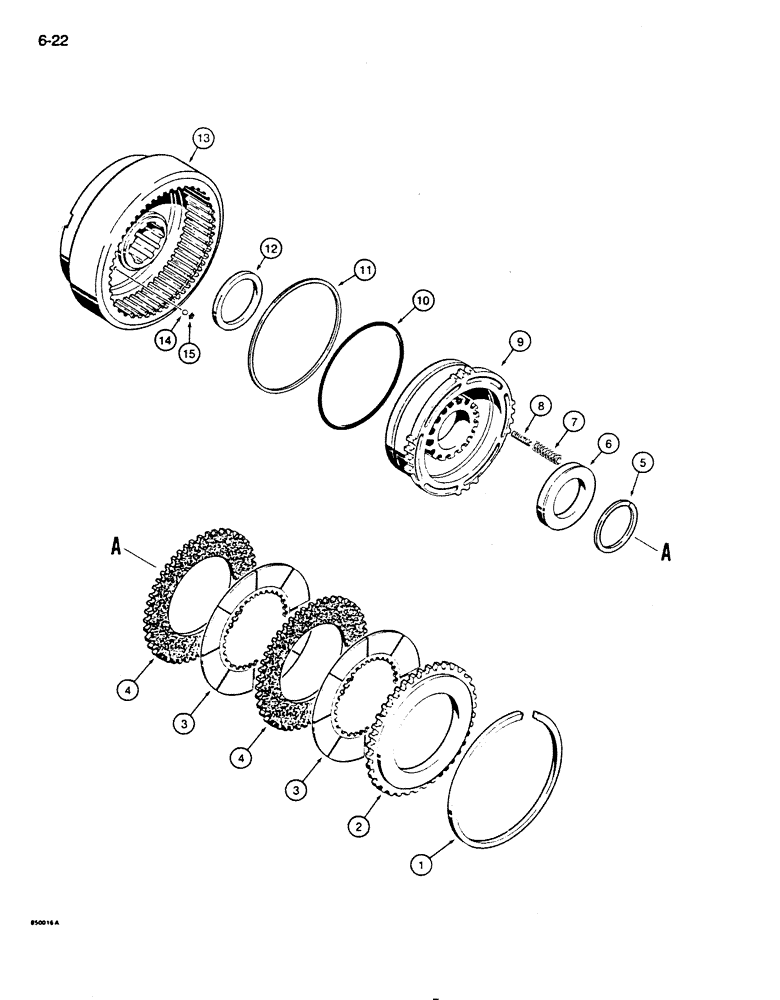

Запчасти Case 855D (6-22) - TRANSMISSION HIGH AND LOW SPEED CLUTCHES (06) - POWER TRAIN

G106702

CLUTCH ASSEMBLY

high and low speed, Includes: Ref. 1 - 15

4шт.

1

30785

RING

disc retaining

1шт.

2

G103391

PLATE

clutch backing

1шт.

3

G102354

PLATE

internal teeth

2шт.

4

G101711

PLATE

steel, external teeth

2шт.

5

A27233

RING

spring retainer

1шт.

6

R11016

RETAINER

clutch springs

1шт.

7

A51825

SPRING

clutch, outer

18шт.

8

A51826

SPRING

clutch, inner

18шт.

9

G106697

PISTON

clutch, aluminum

1шт.

10

238-7165

O-RING,0.103" Thk x 6.487" ID, -165, Cl 7, 75 Duro

Piston, was G103487

1шт.

11

G103486

SEALING RING

SEALRING piston

1шт.

12

A50415

SEAL

drum

1шт.

13

G106732

DRUM

clutch

1шт.

14

211-8

BALL,9/32" Dia

Grade 200 chrome alloy steel

1шт.

15

A153400

SNAP RING,0.312", Int, #31

Ball

1шт.
