(6-14) - TRANSMISSION REAR COVERS AND DIPSTICK

Запчасти Case 855D (6-14) - TRANSMISSION REAR COVERS AND DIPSTICK (06) - POWER TRAIN

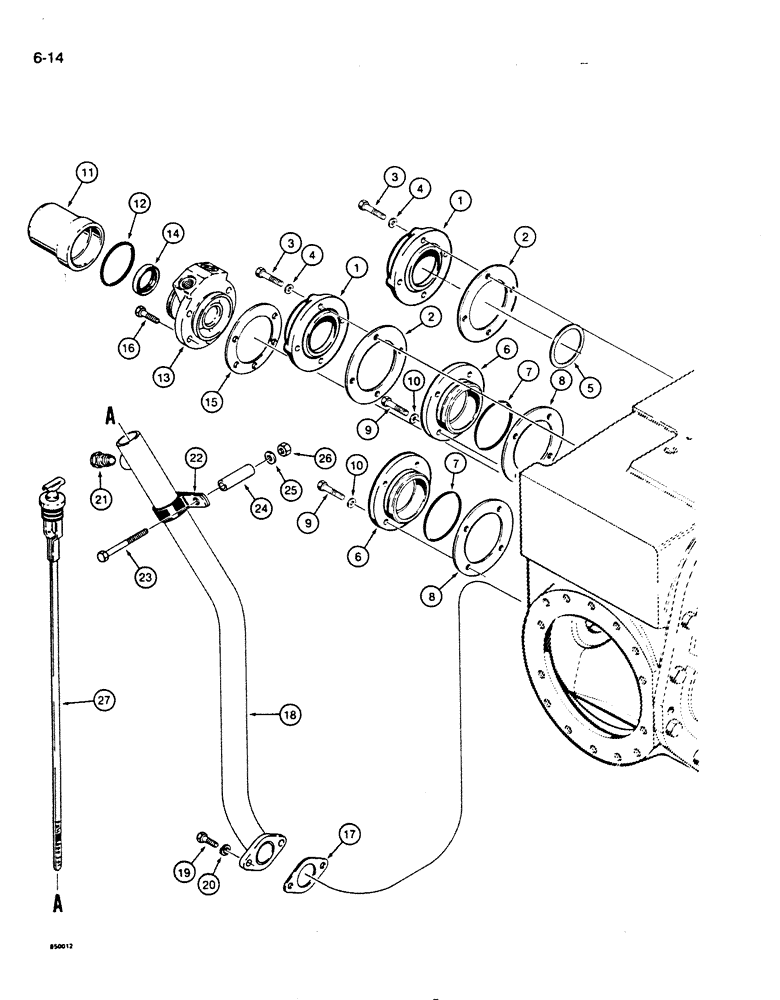

Схема запчастей Case 855D - (6-14) - TRANSMISSION REAR COVERS AND DIPSTICK (06) - POWER TRAIN
13
1
21
3
6
24
15
2
4
26
17
1
9
20
10
8
12
23
3
6
7
22
10
2
9
18
14
5
19
7
11
27
25
4
8
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A50271

COVER

clutch shaft

2шт.

2

A50348

SHIM,.003" Thk

Cover

1шт.

2

A50272

SHIM,.005" Thk

Cover

1шт.

2

CASA50347

SHIM

SHIM - cover, .010" thick

1шт.

3

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

4

D32117

COPPER WASHER

3/8"

8шт.

5

G100338

SHIM,.028" Thk

Rear bearing, Clutch shaft

1шт.

6

G103644

COVER ASSY

pinion shaft

2шт.

7

238-5151

O-RING,0.103" Thk x 2.987" ID, -151, Cl 5, 75 Duro

Pinion shaft cover, was G104780

2шт.

8

G103645

SHIM,.003" Thk

Pinion shaft cover

1шт.

8

G103647

SHIM,.010" Thk

Pinion shaft cover

1шт.

9

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

8шт.

10

D32117

COPPER WASHER

3/8"

8шт.

11

G101696

PROTECTIVE COVER

guard, main shaft

1шт.

12

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

inner cover, winch models only

1шт.

13

G109371

RETAINER

inner, main shaft, with ports

1шт.

14

A54107

OIL SEAL,38.1mm ID x 8mm Thk

oil, main shaft cover

1шт.

15

G109319

BLOCK

cover, .003" thick

1шт.

15

G109320

BLOCK

cover, .005" thick

1шт.

15

G109321

BLOCK

cover, .010" thick

1шт.

16

26-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

5шт.

17

R47073

GASKET

dipstick tube, parts not included with transmission assembly, order separately

1шт.

18

R47760

TUBE,1.5" OD

dipstick, parts not included with transmission assembly, order separately

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Parts not included with transmission assembly, Order separately

2шт.

20

492-11038

LOCK WASHER,3/8"

Parts not included with transmission assembly, order separately

2шт.

21

D63543

BREATHER

dipstick tube, parts not included with transmission assembly, order separately

1шт.

22

R50045

CLAMP

dipstick tube, parts not included with transmission assembly, order separately

1шт.

23

413-626

BOLT,Hex, 3/8" - 16 x 1-5/8", Gr 5

BOLT hex, 3/8" - 16 NC x 3-1/2", plated, parts not included with transmission assembly, order separately

1шт.

24

L49541

SPACER

bolt, parts not included with transmission assembly, order separately

1шт.

25

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened, parts not included with transmission assembly, order separately

1шт.

26

425-106

NUT,3/8"-16, Cl 5

Parts not included with transmission assembly, Order separately

1шт.

27

R47798

DIPSTICK

parts not included with transmission assembly, order separately

1шт.
