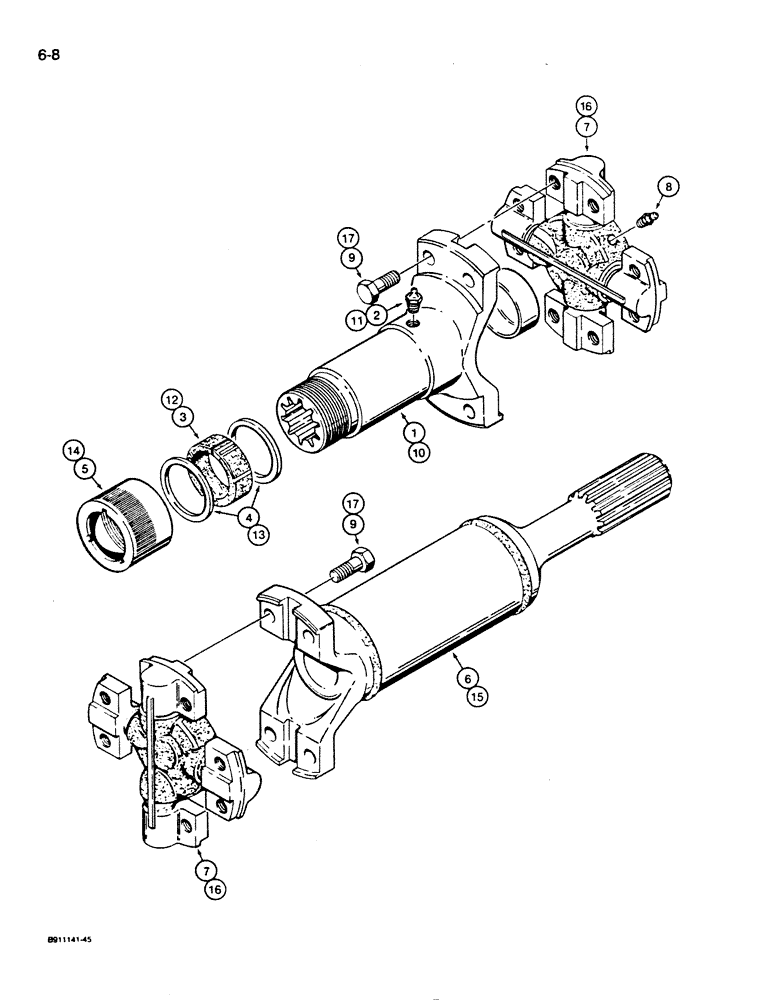

Запчасти Case 855D (6-08) - DRIVE SHAFT ASSEMBLIES, PRIOR TO DOZER PIN JAK0002748 OR LOADER PIN JAK0005948 (06) - POWER TRAIN

R34622

SHAFT

drive, no longer available, order A43502 yoke, D78335 shaft, and (2) L36152 universal joints below, if used, Loader

1шт.

A43502

YOKE

UNIVERSAL JOINT YOKE drive shaft, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

YOKE - drive shaft, R34622 drive shaft

1шт.

2

219-1

LUBE NIPPLE,1/8" - 27 NPTF

R34622 Drive shaft

1шт.

3

A18390

WASHER

felt, R34622 drive shaft

1шт.

4

A18387

WASHER

felt retaining, R34622 drive shaft

2шт.

5

A18388

CAP

yoke, R34622 drive shaft

1шт.

6

D78335

YOKE

UNIVERSAL JOINT YOKE R34622 drive shaft

1шт.

L36152

KIT

R34622 drive shaft, Includes: Ref. 7 - 9

2шт.

7

NSS

NOT SOLD SEPARAT

UNIVERSAL JOINT, R34622 drive shaft

1шт.

8

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

R34622 drive shaft

1шт.

9

28-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

R34622 drive shaft

8шт.

R57668

SHAFT ASSY.

drive, if used, Includes: Ref. 10 - 17

1шт.

100500A1

SHAFT

drive, R57668 shaft, Includes: Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

YOKE - drive shaft, assembly R57668

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

R57668 Drive shaft assembly

1шт.

12

A18390

WASHER

felt, R57668 drive shaft assembly

1шт.

13

A47521

WASHER

felt retaining, R57668 drive shaft assembly

2шт.

14

A18388

CAP

yoke, R57668 drive shaft assembly

1шт.

15

104548A1

YOKE

UNIVERSAL JOINT YOKE drive shaft assembly (Replaces 100498A1), R57668

1шт.

100503A1

U-JOINT SPIDER

R57668 drive shaft assembly, Includes: Ref. 16 & 17

2шт.

16

NSS

NOT SOLD SEPARAT

R57668 drive shaft assembly

1шт.

17

328-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

R57668 drive shaft assembly

8шт.
