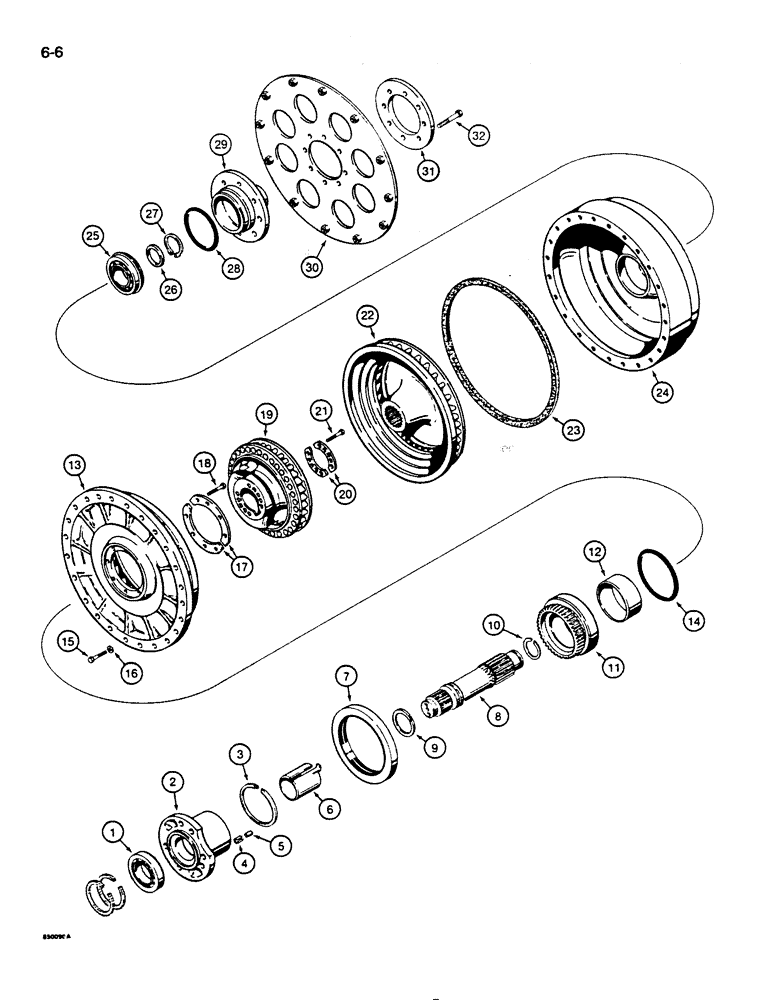

Запчасти Case 855D (6-06) - TORQUE CONVERTER, SHAFT, IMPELLER, AND TURBINE (06) - POWER TRAIN

R48341

CONVERTER

TORQUE CONVERTER ASSEMBLY - loader models, Spec. N65591, parts list Figures 6-02 - 6-06, order R57672 converter below and D31315 yoke, Figure 6-02, ref 36

1шт.

R57672

CONVERTER

TORQUE CONVERTER ASSEMBLY - loader models, Spec. N66799, parts list Figures 6-02 - 6-06

1шт.

R48340

CONVERTER

TORQUE CONVERTER ASSEMBLY - dozer and drawbar models, Spec. N65592, parts list Figures 6-02 - 6-06, order R57671 converter below and D31315 yoke, Figure 6-04, ref 36

1шт.

R57671

CONVERTER

TORQUE CONVERTER ASSEMBLY - dozer and drawbar models, Spec. N66800, parts list Figures 6-02 - 6-06

1шт.

1

B18274

BALL BEARING,1.7712" ID x 3.3465" OD x 0.748"

BALL BEARING - output shaft, inner

1шт.

Part of Overhaul Kit, P/N R40939

1шт.

2

D75861

GUIDE

CARRIER - gear

1шт.

3

A20231

RING

SNAP - carrier

1шт.

Part of Seal Kit, P/N R38108

1шт.

4

138-221

LOCK PIN,3/8" x 5/8", Slotted

4шт.

5

138-108

LOCK PIN,7/32" x 5/8", Slotted

4шт.

6

D32027

SLEEVE

Split, shaft

1шт.

Part of Overhaul Kit, P/N R40939

1шт.

7

D32109

SEAL,133.35mm ID x 165.35mm OD x 13.74mm Thk

OIL - gear

1шт.

Part of Seal Kit, P/N R38108

1шт.

8

D32026

SHAFT

Output - torque converter

1шт.

9

A20229

RING

Retaining - shaft

1шт.

Part of Seal Kit, P/N R38108

1шт.

10

A22889

RING

SNAP - shaft

1шт.

Part of Overhaul Kit, P/N R40939

1шт.

D75862

GEAR

ASSEMBLY - pump drive, Includes: Ref. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - pump drive

1шт.

12

D75859

BUSHING,89.09mm ID x 93.75mm OD x 27.18mm L

Steel backed

1шт.

13

D48856

IMPELLER

Torque converter, loader models

1шт.

13

D31934

IMPELLER

Torque converter, dozer and drawbar models

1шт.

14

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

Impeller

1шт.

Part of Seal Kit, P/N R38108

1шт.

15

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

24шт.

16

A22873

WASHER,8.33mm ID x 15.88mm OD x 1.88mm Thk

Special

24шт.

17

D32016

PLATE

Clamp

2шт.

18

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

8шт.

19

D31936

GUIDE

Wheel - torque converter

1шт.

20

D32010

PLATE

Clamp

2шт.

21

166-26

12 PT SCREW,Flg, 5/16" - 18 x 1", Gr 8

Machine

6шт.

22

D31935

TURBINE

Torque converter

1шт.

23

D31998

GASKET

Rotating housing

1шт.

Part of Seal Kit, P/N R38108

1шт.

24

N9777

HOUSING

Rotating

1шт.

25

A63271

BALL BEARING,1.5748" ID x 3.799" OD x 0.9055"

Ball - output shaft, outer

1шт.

Part of Overhaul Kit, P/N R40939

1шт.

26

D32030

BALL BEARING,1.585" ID x 1.94" OD x 0.114"

Ball bearing

1шт.

27

A26946

RING

SNAP - ball bearing

1шт.

Part of Overhaul Kit, P/N R40939

1шт.

28

N9779

O-RING,3.859" ID x 4.137" OD x 0.143"

O-RING - pilot, 3-7/8" (98 mm) ID x 4-1/8" (105 mm) OD

1шт.

Part of Seal Kit, P/N R38108

1шт.

29

N9775

HANDWHEEL

PILOT - flywheel

1шт.

30

N9774

LARGE PLATE

PLATE, LARGE Flex - converter

1шт.

Flywheel mounting bolts are shown on Figure 2-40 Ref. #10 R54620

1шт.

31

N9778

WASHER

Support

1шт.

32

26-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 8

8шт.

R38108

GASKET KIT

Seal, Includes: Ref. 3, 7, 9, 14, 23, and 28, Figures 6-02 - 6-06

1шт.

R40939

KIT

Overhaul, Includes: Ref. 1, 6, 10, 25, and 27, Figures 6-02 - 6-06

1шт.
