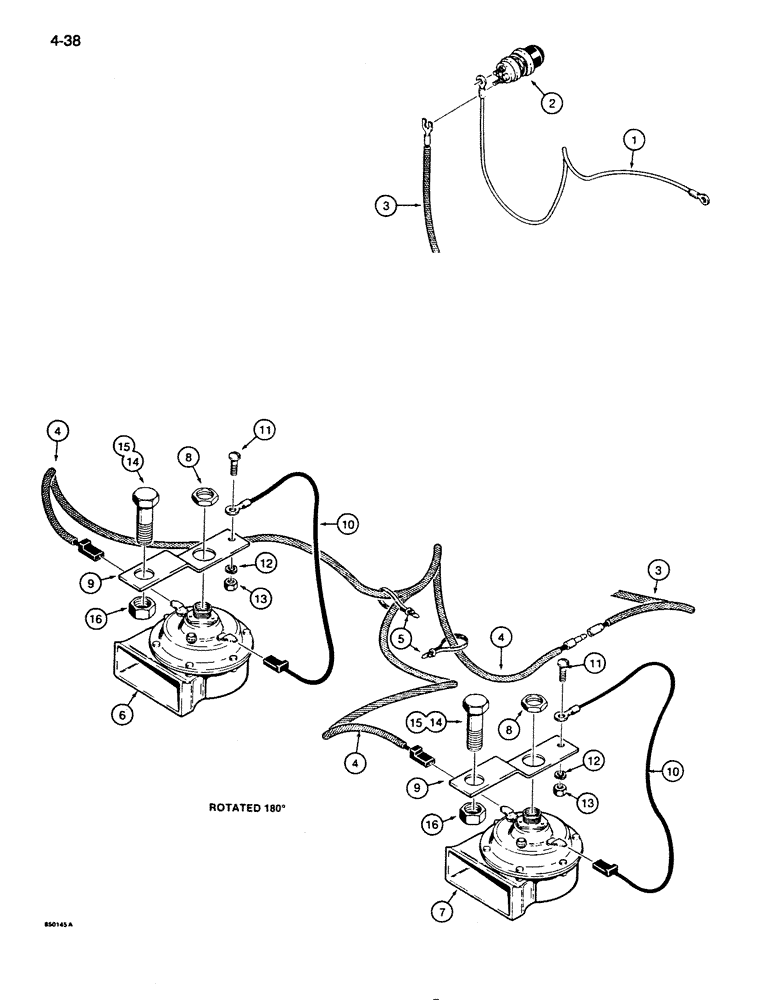

Запчасти Case 855D (4-38) - HORN (04) - ELECTRICAL SYSTEMS

1

F21342

ELECTRICAL WIRE

WIRE push button to circuit breaker

1шт.

2

S241920

SWITCH

push button, horn

1шт.

3

REF

INSTRUCTION

HARNESS - front wiring, see Figure 4-18

1шт.

4

R46014

ELECTRICAL WIRE

WIRE front wiring, Serial Range: harness-horns

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

6

D77650

HORN

right-hand, includes an Ref. 8 nut and a bracket that is not used on this tractor

1шт.

7

R45461

HORN

left-hand, includes an Ref. 8 nut and a bracket that is not used on this tractor

1шт.

8

L30866

LOCK NUT

special

2шт.

9

R39064

BRACKET, SUPPORTING

horn mounting

2шт.

10

R36131

ELECTRICAL WIRE

WIRE ground

2шт.

11

182-516

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

Machine

2шт.

12

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

2шт.

13

129-17

NUT,Hex, #10 - 24

2шт.

14

113-709

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

Used without ROPS canopy brush guards

2шт.

15

113-708

BOLT,Hex, 3/4" - 10 x 2", Gr 5

Used with ROPS canopy brush guards

2шт.

16

129-108

NUT,3/4"-10, G5

2шт.
