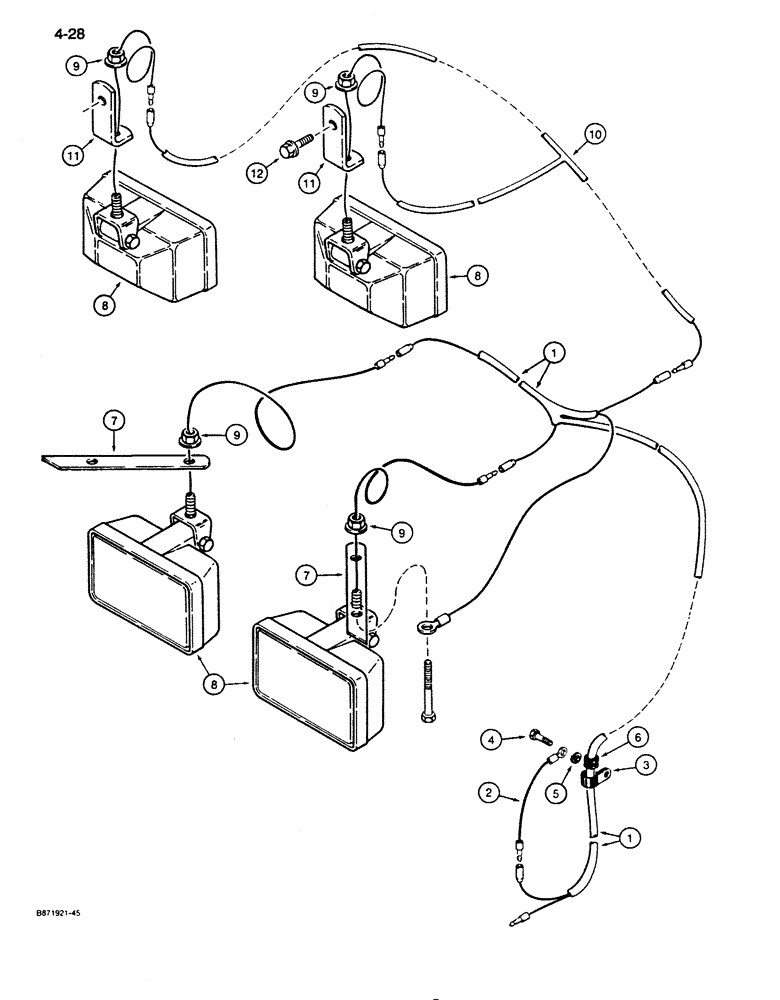

Запчасти Case 855D (4-28) - LAMPS AND WIRING, MODELS WITH ROPS CANOPY, HALOGEN LAMPS (04) - ELECTRICAL SYSTEMS

1

R54481

HARNESS

rear lamps

1шт.

2

R47747

ELECTRICAL WIRE

WIRE ground, rear lamp harness

1шт.

3

D31148

CLAMP

rear harness, on hydraulic reservoir

1шт.

4

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

5

192-21

LOCK WASHER,3/8"

1шт.

6

D37936

GROMMET

rear harness

1шт.

7

R53887

SUPPORT

rear lamp mounting, use rear screen mounting hardware

2шт.

8

F96876

LAMP

front and rear flood, parts list Figure 4-34

4шт.

9

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

Special locking

4шт.

10

R54482

HARNESS

front lamps

1шт.

11

R27714

BRACKET

front lamp mounting

2шт.

12

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2-4шт.
