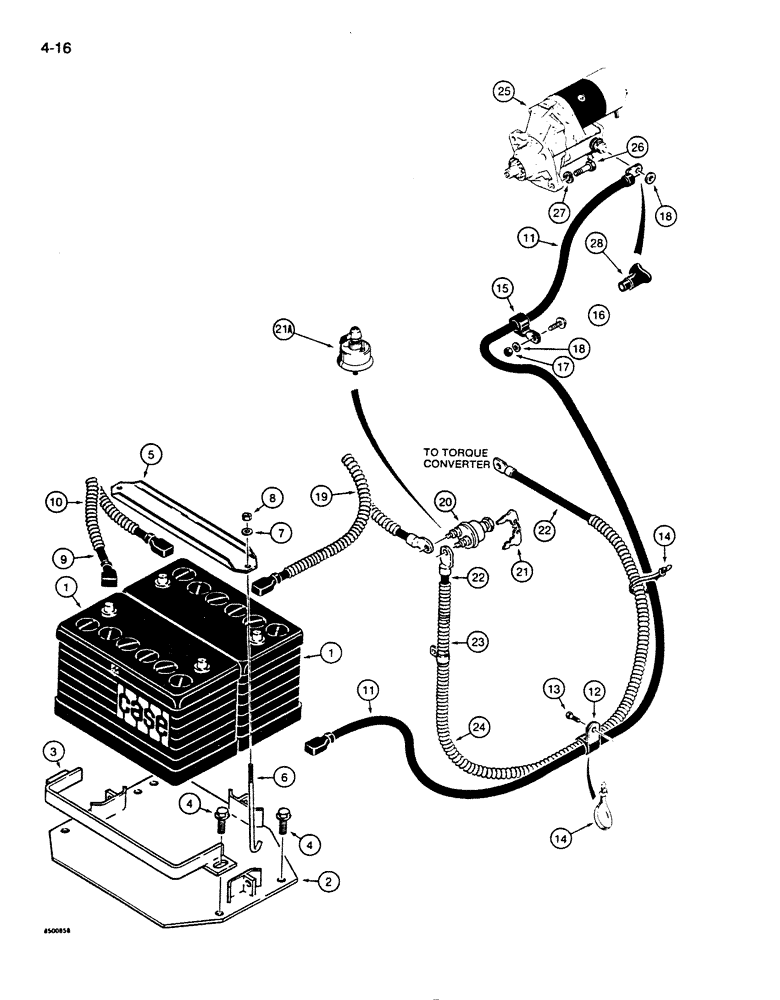

Запчасти Case 855D (4-16) - BATTERY MOUNTING, CABLES, AND STARTER (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V

2шт.

2

R51652

SUPPORT

battery mounting

1шт.

3

R51654

SUPPORT

rear, battery retaining

1шт.

4

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

4шт.

5

R46490

BRACKET

top, battery retaining

1шт.

6

R27652

ROD

J-type

2шт.

7

195-521

WASHER,5/16", SAE

2шт.

8

131-665

LOCK NUT,5/16"-18, GB

hex, self-locking, 5/16" - 18 NC, plated

2шт.

9

R47221

CABLE

jumper, between batteries

1шт.

10

REF

INSTRUCTION

CONDUIT - jumper cable, 5" (127 mm) long, cut from R44806 bulk, see below

1шт.

11

R57555

CABLE

battery, positive, to starter, was R45988

1шт.

12

R13931

CLAMP

positive battery cable and ground cable to engine frame, no longer used, replace with tie strap (item 14)

1шт.

13

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

If used

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon

1шт.

15

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

twist, positive battery cable

1шт.

16

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

17

129-103

NUT,Hex, 3/8" - 16, Gr 5

1шт.

18

495-81127

WASHER,0.39" ID x 0.75" OD x 0.07" Thk

flat, 3/8", plated, if used

2шт.

19

D66958

CABLE PULLING GRIP

battery, negative, with loom

1шт.

20

R47440

SWITCH

ignition, Includes: Ref. 21, no longer used, order R52278 (ref 21A) and R46704 locking tab on Figure 8-002, ref 13

1шт.

21

R30074

SET

of (2), Keys

1шт.

21a

R52278

SWITCH

master disconnect, electrical, replaces key switch used in some models

1шт.

22

R40381

CABLE

battery ground, includes clamp, use loader or dozer lift tube bracket mounting hardware for clamp (see Figure 8-014 or 8-022), use torque converter mounting, Serial Range: hardware-ground

1шт.

23

REF

INSTRUCTION

CONDUIT - ground cable, upper, 8" (203 mm) long, cut from R44806 bulk, if used, see below

1шт.

24

REF

INSTRUCTION

CONDUIT - ground cable, lower, 25" (635 mm) long, cut from R44806 bulk, if used, see below

1шт.

25

REF

INSTRUCTION

STARTER - for correct part number and components see Figure 4-02

1шт.

26

814-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

3шт.

27

892-1110

LOCK WASHER,M10

3шт.

28

L126713

BOOT

plastic, battery cable at starter, if used

1шт.

R44806

LOOM

bulk, 88-1/2" (2248 mm) long

1шт.
