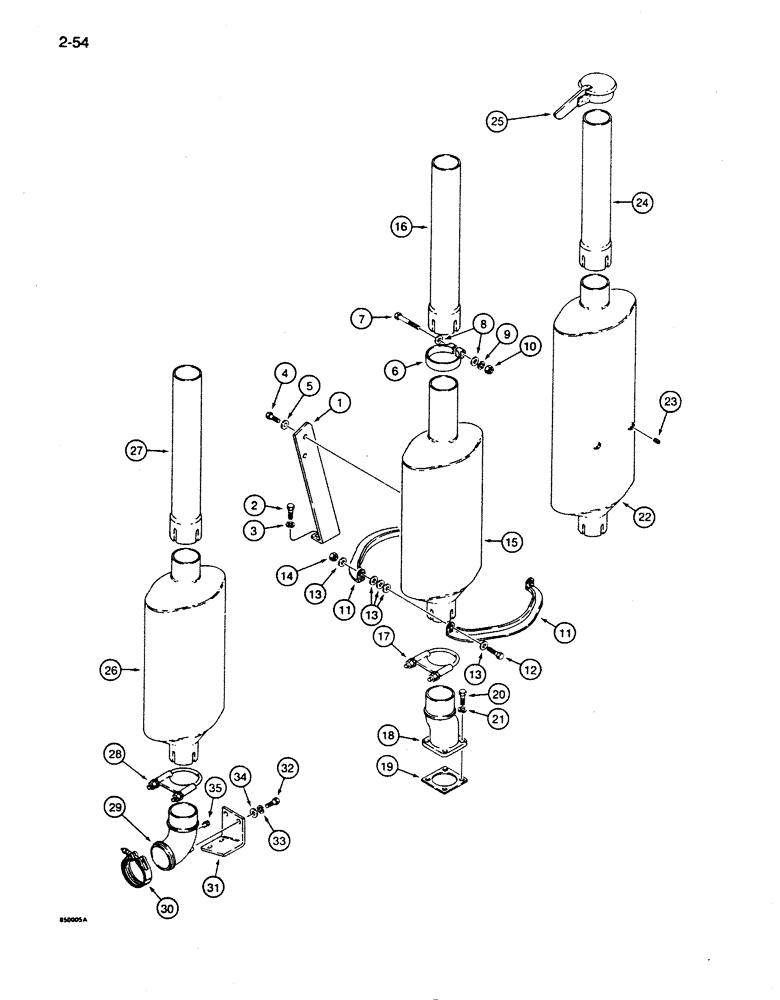

Запчасти Case 855D (2-54) - MUFFLER MOUNTING AND EXHAUST PARTS, PARTS USED ON ALL MODELS (02) - ENGINE

1

R48841

SUPPORT

muffler mounting, used on all models

1шт.

2

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Used on all models

2шт.

3

892-1110

LOCK WASHER,M10

Used on all models

2шт.

4

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Used on all models

2шт.

5

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened, used on all models

2шт.

6

R48710

CLAMP,85.7mm

muffler to exhaust pipe, used on all models

1шт.

7

113-2271

BOLT,Hex, 3/8" - 16 x 3", Gr 5

Used on all models

1шт.

8

195-81020

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

Black, used on all models

2шт.

9

192-21

LOCK WASHER,3/8"

Used on all models

1шт.

10

129-770

NUT,3/8"-16, G5

Used on all models

1шт.

11

R52400

FIXING BRACKET

muffler, used on all models

2шт.

12

113-122

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Used on all models

2шт.

13

H426775

WASHER

flat, 5/16", hardened, used on all models

10шт.

14

131-4

LOCK NUT,5/16"-18, GB

Used on all models

2шт.

15

A171649

MUFFLER

standard, models without a turbocharger, if used

1шт.

16

R50400

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST standard, not used on models with a spark arrester muffler, if used, models without turbocharger

1шт.

17

S65056

CLAMP

muffler to manifold adapter, parts used on models without turbocharger

1шт.

18

A171507

ADAPTER

manifold, parts used on models without turbocharger

1шт.

19

A170151

MANIFOLD GASKET

manifold adapter, parts used on models without turbocharger

1шт.

20

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Parts used on models without turbocharger

4шт.

21

892-1110

LOCK WASHER,M10

Parts used on models without turbocharger

4шт.

22

A171419

MUFFLER

spark arrester, models without a turbocharger, if used

1шт.

23

217-77

PLUG

square head, 3/8" NPT, brass, parts used on models without turbocharger

2шт.

24

R50401

PIPE

models with spark arrester muffler, if used, parts used on models without turbocharger

1шт.

25

A189374

CAP

rain, models with spark arrester muffler, was A173067, if used, parts used on models without turbocharger

1шт.

26

A171650

MUFFLER

models with a turbocharger, if used

1шт.

27

R50400

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST models with a turbocharger, if used

1шт.

28

S65056

CLAMP

muffler to turbocharger tube, used on models with turbocharger

1шт.

29

A173623

ELBOW

at turbocharger

1шт.

30

A170467

CLAMP,72mm ID

tube, at turbocharger

1шт.

31

A171823

BRACKET

turbocharger tube

1шт.

32

814-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

Parts used on models with turbocharger

4шт.

33

892-1110

LOCK WASHER,M10

Parts used on models with turbocharger

4шт.

34

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened, parts used on models with turbocharger

4шт.

35

221-841

PLUG

hex socket head, 1/4" NPT, in elbow, parts used on models with turbocharger

1шт.
