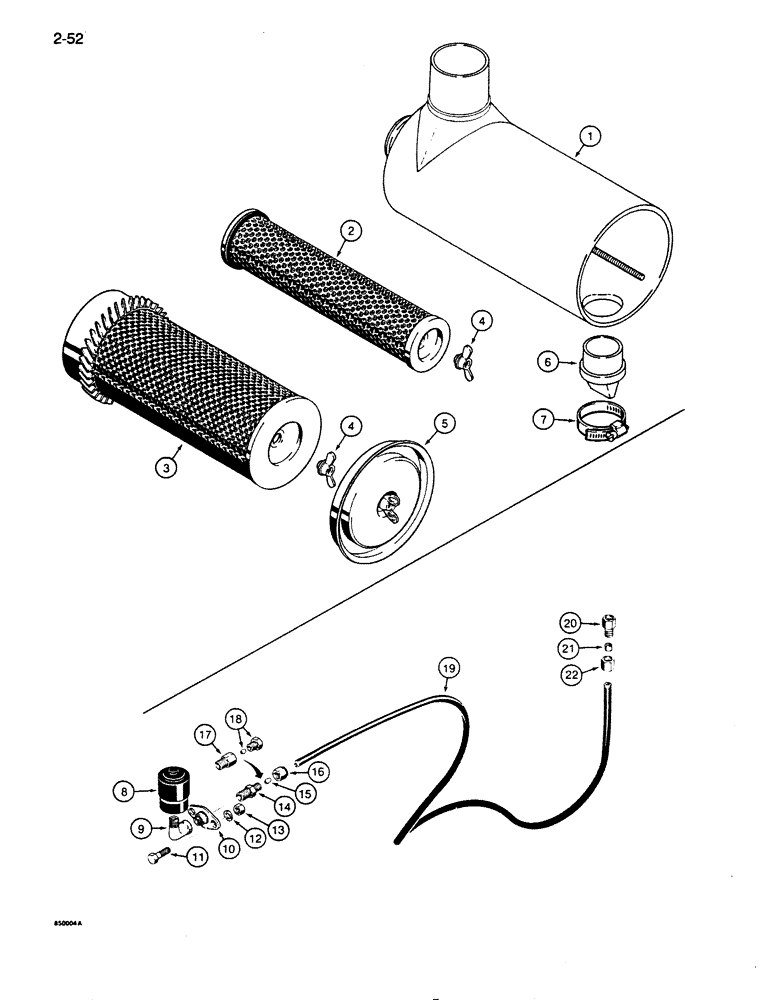

Запчасти Case 855D (2-52) - AIR CLEANER ASSEMBLY AND RESTRICTION INDICATOR (02) - ENGINE

A173852

FILTER ASSY

engine, used on all models, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - air cleaner

1шт.

2

A47033

AIR FILTER

secondary, inner

1шт.

3

A47032

AIR FILTER

primary, outer

1шт.

4

D78354

WING NUT

element

2шт.

5

A52419

COVER

end, with tab for primary element wing nut retention

1шт.

6

S113982

CAP

air cleaner

1шт.

7

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

adjustable, dust cup, not part of air cleaner assembly, order separately

1шт.

8

A59569

INDICATOR

air

1шт.

9

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

10

H357707

FLANGE

restriction indicator mounting

1шт.

11

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

12

492-11025

LOCK WASHER,1/4"

2шт.

13

425-104

NUT,1/4"-20, Cl 5

2шт.

D35816

CONNECTOR, ELEC

CONNECTOR compression, straight, production part, for service order 222-400 adapter assembly, Includes: Ref. 17 & 18

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

15

D37176

SLEEVE

adapter

1шт.

16

D37362

TUBE NUT

adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

straight, service replacement for D35816, see Ref. 14 - 16

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

18

222-500

TUBE NUT,5/16" - 24 NPT

AND SLEEVE - adapter

1шт.

19

R49591

PLASTIC-RUBBER TUBE,3.18 mm OD x 530 mm L

nylon, 20-7/8" (530 mm) long

1шт.

D35091

PIPE FITTING

female, Includes: Ref. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

21

D37176

SLEEVE

adapter

1шт.

22

D37362

TUBE NUT

adapter

1шт.
