Запчасти Case 855D (2-50) - AIR CLEANER MOUNTING AND INTAKE PARTS (02) - ENGINE

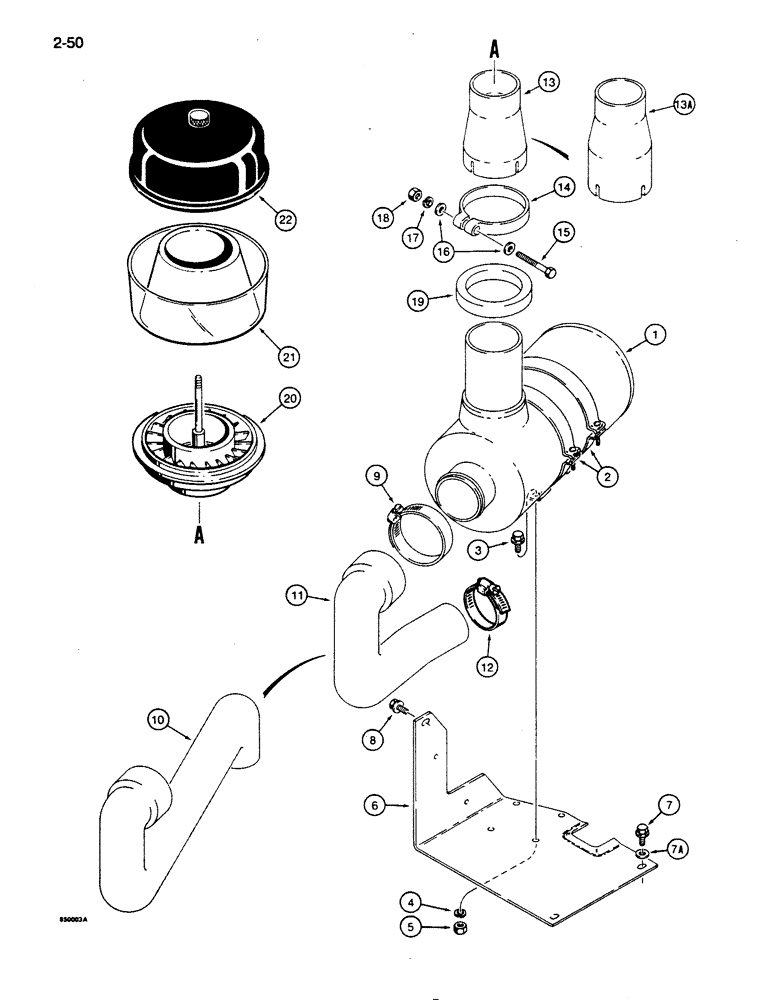

Схема запчастей Case 855D - (2-50) - AIR CLEANER MOUNTING AND INTAKE PARTS (02) - ENGINE
12
8
13
16
20
9
18
5
6
7
13a
3
1
15
7a
4
21
10
14
17
22
11
2
19

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - parts list Figure 2-52

1шт.

2

A149780

BAND

air cleaner, includes hardware

2шт.

3

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

4шт.

6

R53324

BRACKET

air cleaner mounting

1шт.

7

121-230

SERRATED BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7a

D52275

WASHER,9.92mm ID x 31.75mm OD x 2.78mm Thk

flat, 3/8", hardened

2шт.

8

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

Use with Loctite

1шт.

9

214-181

HOSE CLAMP,4-1/4" - 5-1/8", HD Worm

adjustable, hose, at air cleaner

1шт.

10

R47513

INTAKE AIR HOSE,76.00 mm ID, 102 mm ID x 586.00 mm, SAE J200

Air cleaner, Used on models without a turbocharger, if used

1шт.

11

R47512

INTAKE AIR HOSE,76.00 mm ID, 102 mm ID x 227.00 mm, SAE J200

Air cleaner, Used on models with a turbocharger, if used

1шт.

12

214-179

HOSE CLAMP,3-1/4" - 4-1/8", HD Worm

adjustable, hose, lower

1шт.

13

R48473

WHISTLE

PIPE - air cleaner inlet, 7-1/2" (190 mm) long, no longer used, replace with R52923 pipe (item 13A)

1шт.

13a

R52923

WHISTLE

PIPE - air cleaner inlet, 9" (230 mm) long

1шт.

Ref. 13/13a have a 5" i.d. where it lines up with inlet on a173852 air cleaner assy. aircleaner has 4.5" o.d. in same area. dealer said would not fit. the r52923 actually fits over a flange on the hood, not directly to the aircleaner.

1шт.

14

R48474

CLAMP

air cleaner pipe

1шт.

15

113-2272

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

16

195-525

WASHER,3/8", SAE

2шт.

17

192-21

LOCK WASHER,3/8"

1шт.

18

129-770

NUT,3/8"-16, G5

1шт.

19

R43072

NOISE PROTECTION

seal, air cleaner pipe

1шт.

A43616

FILTER

standard

1шт.

20

NSS

NOT SOLD SEPARAT

BASE - precleaner

1шт.

21

A42467

HOUSING

precleaner

1шт.

22

A42465

COVER

bowl

1шт.

Выбрано товаров: 26
